Summary of Contents for Southco H3-EM-67-100

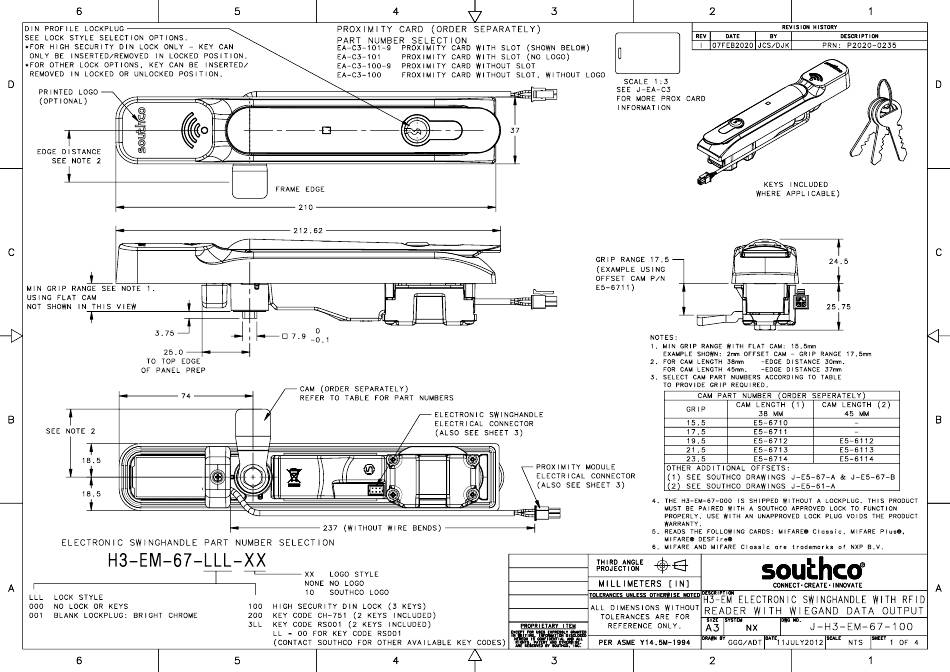

- Page 5 DATA Signal Delay: Output Format: Reverse Byte Order with Upper and Lower Parity Bits Mounting and Installation Please refer to Southco trade drawing J-H3-EM-67-100 for mounting and installation details. ® NOTE: Use a #1 POZIDRIV driver when installing the mounting screws.
- Page 6 The actuator module of the swinghandle is accessed with a six-position connector on the rear of the unit, shown below. NOTE: The mating connectors/harnesses are not provided with the H3-EM-67-x00. Refer to Southco trade drawing J-H3-EM-67-100 for mating connector/harness requirements. Wiegand Data Output...
- Page 7 H3-EM-67-100 Electronic Swinghandle Operating Instructions Status LED and Output Signals Mechanically Released The latch is equipped with a tri-color (blue/magenta/red) LED visible from The latch is released by opening the handle or moving the cam from its the front of the latch. This LED provides a visible notification of the latch lock position.
- Page 8 H3-EM-67-100 Electronic Swinghandle Operating Instructions Error Input Command Sequence Electronic Lock Slide Error The electronic lock slide does not respond to the command input signal. The H3-EM can accept an input command from an external controller to flash the status LED red three times. This feature can be used to indicate The Status LED will flash magenta if the latch is secured.
