Summary of Contents for Comfast CF-E5

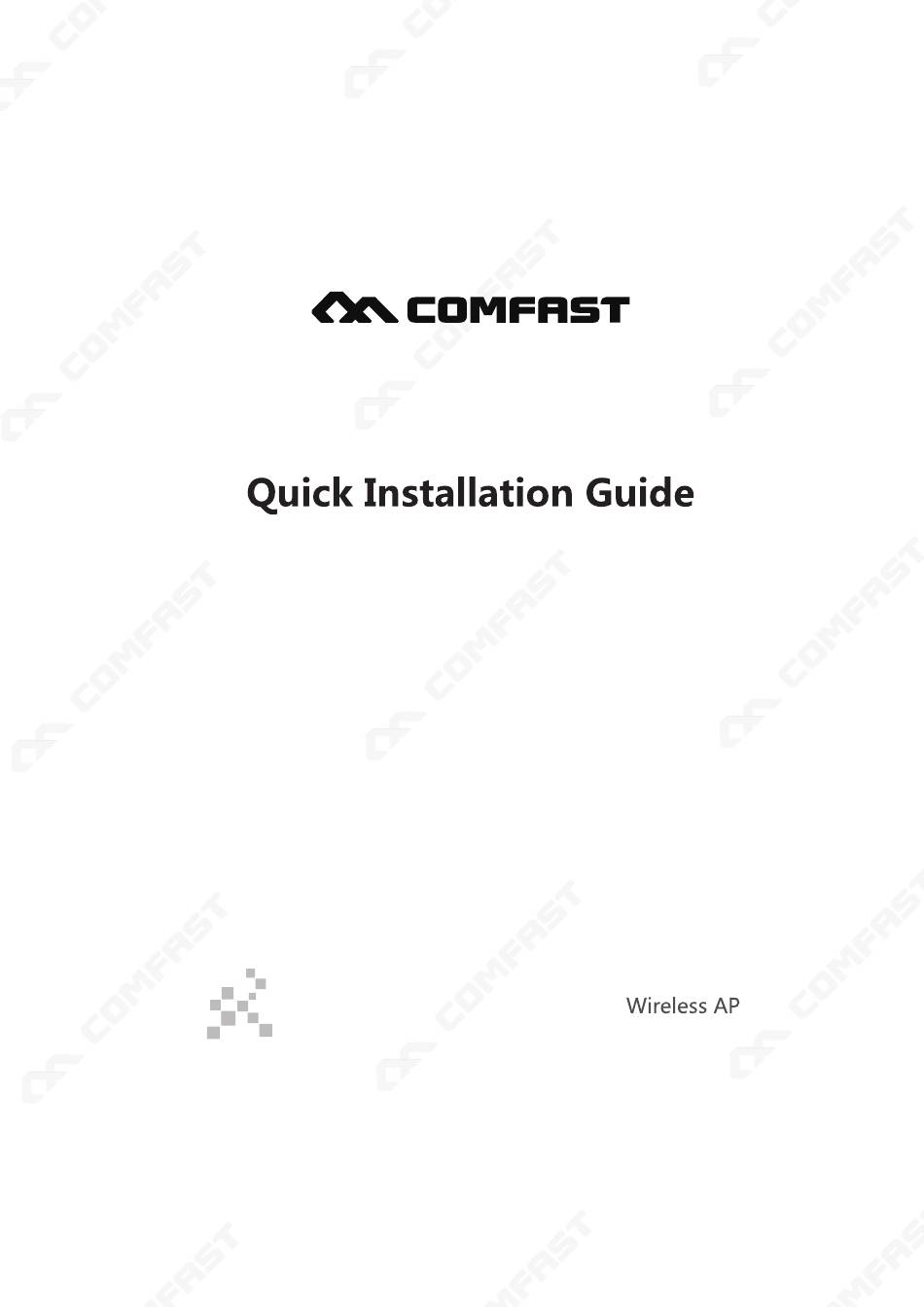

- Page 1 V1.0 M0304346...
- Page 2 RESET MICRO SIM Computer 4G Internet Mode Setting (1) The device defaults to 4G Internet access mode. (2) Insert the MACRO SIM according to the device mark before powering up. (3) Power on the device, connect the wireless SSID of the device (default is COMFAST_XXXX_2G, XXXX is the last 4 digits of MAC) or connect the device LAN port to the PC through the network cable.
- Page 3 Normal read status: Status Device Info MAC: 40:A5:EF:12:45:56 Model: CF-E5 Version: V2.6 Carriers: China Mobile Network : LTE RSSI: -57dbm Unread to SIM: Status Device Info MAC: 40:A5:EF:12:45:56 Model: CF-E5 Version: V2.6 No SIM card detected...
- Page 4 (5) If read normally, you need to modify the wireless SSID and password. Enter the menu bar on the left, Network Management - Modify the wireless settings, click on the settings after modifying. Note: 1. If the SIM card is not read: (1) First check if the SIM card is inserted in the direction of the mark (2) Check if the SIM card has a PIN lock .
- Page 5 four , Repeater Mode. Internet Internet MODEM LAN2 LAN1 Bridge Router Internet Internet SWITCH WISP AP Repeater The AP needs to set an intranet IP address (do not set the same IP address as the upper router). If want to manage the device, Manually set the IP address of the same network segment of the intranet IP.
- Page 6 Lan Settings WiFi 2.4G WiFi 5.8G Finish Lan Settings IP Address 192.168.10.1 Subnet Mask 255.255.255.0 Next 3.4 AP mode: You can set up 2.4G/5.8G wireless SSID, password, channel and countr y in advance. After setting up,the device’s LAN port connected internet,other mobile devices can connect the SSID to surf the internet.
- Page 7 Lan Settings Bridge Settings WiFi 2 . 4G WiFi 5 . 8G Finish Lan Settings IP Address 192.168.10.1 Subnet Mask 255.255.255.0 Next Pls set the SSID and password for the device and click “Next” to finish settings. Lan Settings Bridge Settings WiFi 2.4G WiFi 5 .
- Page 8 3.6 Repeater Mode: The AP device can set the internal network segment (the gateway IP should not be the same as the upper device gateway IP). Next, select the name of the wireless SSID signal that you need to relay (distinguish between 5.8GHz and 2.4GHz). Lan Settings Repeater Settings WiFi 2 .
- Page 9 WAN Settings Lan Settings WiFi 2.4G Finish WAN Settings PPPoE Static DHCP APN Config Manual 3gnet Username admin Password admin Next Pls set the SSID and password for the device and click “Next” to finish settings. WAN Settings Lan Settings WiFi 2.4G Finish 2.4G Wireless...
