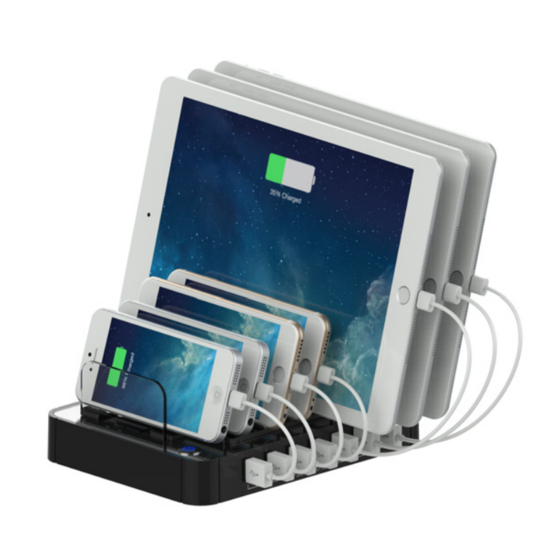

gofanco USBCharge7PW User Manual

7-port usb charging station
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
®
7-Port USB Charging Station
User's Guide
G4-0004B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USBCharge7PW and is the answer not in the manual?

Questions and answers

Related Manuals for gofanco USBCharge7PW

Summary of Contents for gofanco USBCharge7PW

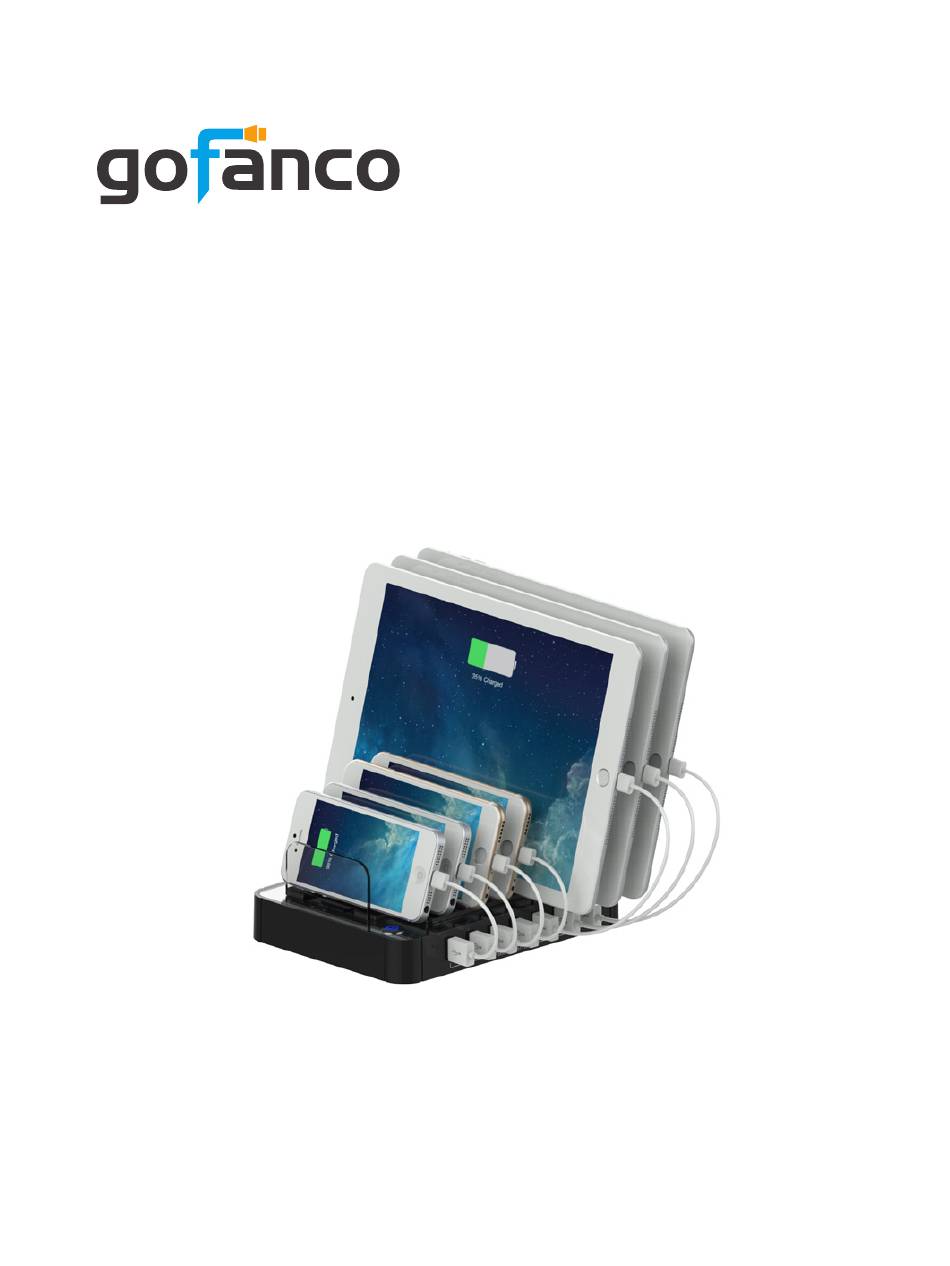

  • Page 1 ® 7-Port USB Charging Station User's Guide G4-0004B...
  • Page 2 If you need more information about our products, please visit www.gofanco.com. For technical support, please email us at support@gofanco. com. For drivers/manuals download, please go to http:// www. gofanco.com/download. Introduction The gofanco 7-Port Charging Station can charge up to 7 USB-powered devices simultaneously and keep them organized.

  • Page 3: Features And Specifications

    Features & Specifications Port 7 USB Charging Ports Input AC 100~240V / 50-60Hz, 1.5A 2.4A (Max.) / per port USB Output Total: DC 5V / 13A (Total output capacity) Power DC 19V / 3.42A, 64.98W (Max.) Each Interval Space 0.75" Size 7.48"...

  • Page 4: Product Layout

    Product Layout Power jack On/off button USB charging port Figure 1: 7-Port USB Charging Station • On /Off button: Press to turn on/off the charging station. • USB charging ports (x7): Connect devices here to charge. • Power jack: Connect the power adapter here. Power Jack's Specifications:...

  • Page 5: Installation

    Outside Inside Plug diamet- diameter length Negative / Positive er (OD) (ID) 5.5(mm) 2.5(mm) 12(mm) *Center pin for positive voltage and the outer shield for negative voltage Table 1: Power Plug Specifications Figure 2: Power Adapter & AC Power Cord Installation 1.
  • Page 6 5. Press the On/Off button to power on the charging station. The power button should be lit with a blue LED. 6. Plug in your devices via their USB charging cables. Anti-slip pad Anti-slip pad Figure 3 Anti-Slip pad Anti-Slip pad Figure 4...

  • Page 7: Safety Notice

    FAQ & Solutions If the charger station isn't functioning properly: • Check that the charger station is plugged into a functioning wall socket. • Check that the green LED on the power adapter is lit to ensure that it is receiving power. •...
  • Page 8 ® Thank you for choosing gofanco www.gofanco.com...
