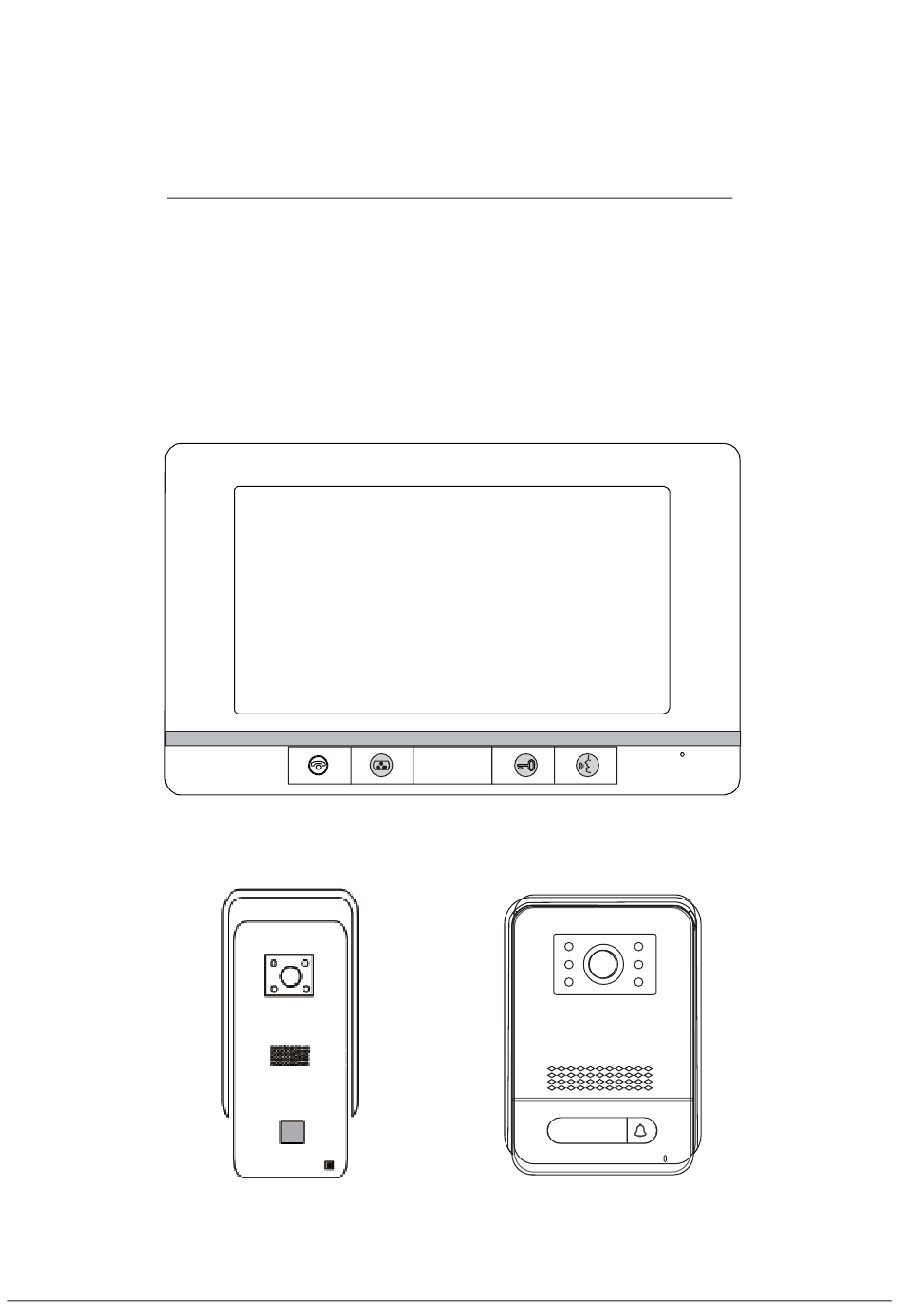

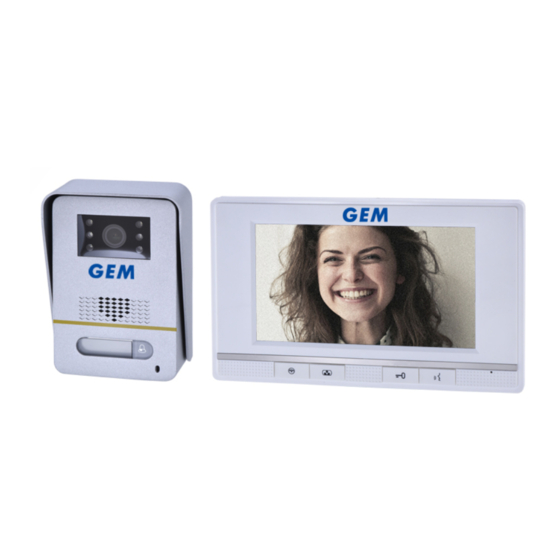

- Page 1 V D P -15 0 IP Video Intercom System Instruction Manual VMT-107 ODS-200 ODS-100...
-
Page 2: Product Features
IP Video Intercom System Manual Product Features Monitor Station Ultra-thin design Easy-to-follow user interface Multi-point, 7” 1024 x 600 capacitive touch screen Supports TF memory card (max 64GB) Expandible system – can connect with up to 5 monitor stations Can connect to 2 video door stations and 2 cameras WiFi capabilty Monitor/ Unlock/ Video Intercom/ Motion Detection/ Footage Record and Playback Locking delay adjustment... -
Page 3: Specifications
IP Video Intercom System Manual Specifications Monitor Station VMT-107 Display 7-inch TFT LCD Touch Screen (16:9) Resolution 1024 x 600 HD Video System PAL/NTSC compatible Intercom mode Semi duplex communication Conversation Duration 120 seconds Operating Voltage 12 VDC Current Draw 650 mA (working) 300 mA (standby) Power consumption 7.8 Watts... - Page 4 IP Video Intercom System Manual Specifications Video Door Stations ODS-200 Camera 1/3 CMOS, AHD1080P HD camera, 3.6MM Lens Camera View 90-degree Resolution AHD 1080P Night vision compensation Operating Voltage 12 VDC Current Draw 200 mA (working) 30 mA (standby) Data Communication 4-wire connection to monitor station Operating Temperature -20°C~60°C Dimensions...
-
Page 5: Wiring Diagram
IP Video Intercom System Manual Wiring Diagram Wiring Distance and wire gauge Be sure to use the equipment within the distance ranges shown in the table. If the distances are exceeded, the video image quality could be affected. Wire type Wiring run Diameter Length (Max.) - Page 6 IP Video Intercom System Manual Function Description camera horn hole call button microphone nameplate Outdoor station backview no com nc vedio v+ gnd audio Rear view of outdoor station ◆ Notes for outdoor station: The outdoor station (audio, gnd, V+, video) is accordingly wired. with the indoor monitor J1 (audio, gnd, V+, video).
- Page 7 IP Video Intercom System Manual 4-wire villa intercom system ◆ Standard Set Diagram (1 outdoor station for 1 indoor monitor): ◆ Detailed connection diagram...
- Page 8 IP Video Intercom System Manual 4-wire villa intercom system ◆ Extension Connection Diagram (2 outdoor station for 2 indoor monitors):...
- Page 9 IP Video Intercom System Manual ◆ The diagram of Access Control System: Fail Safe (power to lock) (Indoor) Smartphone PBT-1100 (Outdoor) (Exit Button) DG-365+ (Bluetooth Reader) (use bluetooth to unlock) Indoor Monitor P.B. Output2 Output1 E-Lock PSM-28T Charge (Power Supply) INPUT Battery 100~240VAC...
-
Page 10: Indoor Monitor
IP Video Intercom System Manual ◆ The diagram of Access Control System: Fail Secure (power to unlock) (Indoor) PBT-1100 (Outdoor) (Exit Button) DG-365+ Smartphone (Bluetooth Reader) (use bluetooth to unlock) Indoor Monitor P.B. Output2 Output1 E-Lock PSM-28T Charge (Power Supply) INPUT Battery 100~240VAC... - Page 11 IP Video Intercom System Manual ◆ The diagram of Access Control System: Fail Secure / Fail Safe Changeable (Indoor) PBT-1100 (Outdoor) (Exit Button) Smartphone DG-365+ (Bluetooth Reader) (use bluetooth to unlock) Indoor Monitor P.B. Output2 Output1 E-Lock PSM-28T Charge (Power Supply) INPUT Battery 100~240VAC...
- Page 12 IP Video Intercom System Manual Monitor Station Shortcut Buttons Hang up or return Monitor Talk Unlock video door station or press and hold for three seconds to unlock the garage gate. Home Screen Monitoring Choose between Door1 / Door2 / Camera1 / Camera2 to view respective camera. Once chosen, the following options are available.
- Page 13 IP Video Intercom System Manual Unlock the door station Transfer the call to another door station (choose between 1 to 6 or All) Adjust display settings: sound, colour, brightness and contrast Answer intercom call Hang up the call Internal call Dial to speak to another monitor station (choose between 1 to 6 or All) Recording Choose between Call record/ Message record/ Motion detect/ Alarm info to view respective...
- Page 14 IP Video Intercom System Manual Door Setting Notes Door 1 is on by default. Door 2 needs to be enabled in order to switch view in monitor Enable switch mode Unlock delay Unlock time delay for the door station Choose photo or video. Recorded message will be saved on Record mode the TF card Motion detect switch...
- Page 15 IP Video Intercom System Manual Network Setting Notes Net pairing Mode EZ Mode/ AP Mode Cloud services Connected/Unconnected: connection status to Tuya IP address Advanced Setting Notes Formatting SD disk Clear all video or picture records in the SD card. Factory Settings Restore back to factory settings Software update...
- Page 16 IP Video Intercom System Manual Tuya Smart App One of the main features of the IP intercom system is being able to access the intercom to monitor your property via smart phones and this is done on the Tuya Smart app which supports WiFi quick connection mode as well as WiFi AP mode.
- Page 17 IP Video Intercom System Manual ◆ AP Mode Start Tuya Smart APP Select “Security & Video Select “AP Mode” and select “Add Device”. Surveillance“ and select and “Next” “Smart Camera (Wi-Fi) “. Connect mobile to your monitor Enter Wi-Fi password. Enter default password station.
-
Page 18: Troubleshooting
IP Video Intercom System Manual Delete the distribution network Delete the added device through the APP, and then the indoor unit will automatically restart and restore the product settings. Adding a new member to your intercom system on the Tuya Smart (up to 5 users) Go to home management →... - Page 19 VD P - 1 5 0 IP Video Intercom System Instruction Manual Copyright © All Rights Reserved. P-MU-VDP-150 Published: 2021.08.02...
