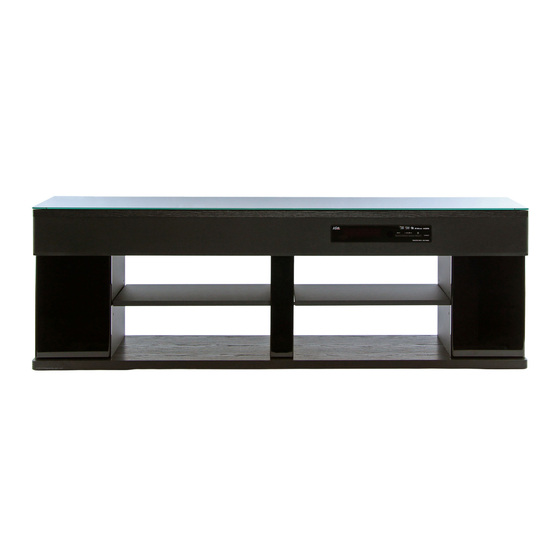

HOME THEATRE RACK SYSTEM
INSTALLATION GUIDE
HAV-R400G/HAV-R500G
THE ASSEMBLY PROCESS SHOULD BE DONE BY TWO OR MORE PEOPLE.
USE A SUITABLE SCREW DRIVER FOR THE ASSEMBLY PROCESS.
DO NOT USE GLUE/ADHESIVE TO ASSEMBLE THE RACK AS THIS MAY JEOPARDIZE ITS SERVICEABILITY.
TO PREVENT SPEAKER DAMAGE, DO NOT HOLD THE CLOTH FRAME DURING ASSEMBLY.
ALL ASSEMBLY STEPS SHOULD BE COMPLETED TO ENSURE SAFE OPERATION OF THIS UNIT.
RISK OF PINCHING DURING THE ASSEMBLY PROCESS - TAKE EXTRA CARE.
INSTALL THIS UNIT NEAR AN ELECTRICAL OUTLET FOR EASY ACCESS.
1
List of Parts
Please make sure that the following accessories are
included in the package.
Top glass Top box
G A
Bottom board Shelf board × 2
D
I
SW box × 2 Center pillar
B
C
Long bolt × 3 HAV-R400G: Caster tray × 2
HAV-R500G: Caster tray × 4
E J
HAV-R400G: Caster × 5 Metal shelf pin × 8
HAV-R500G: Caster × 8
H
F
1
2

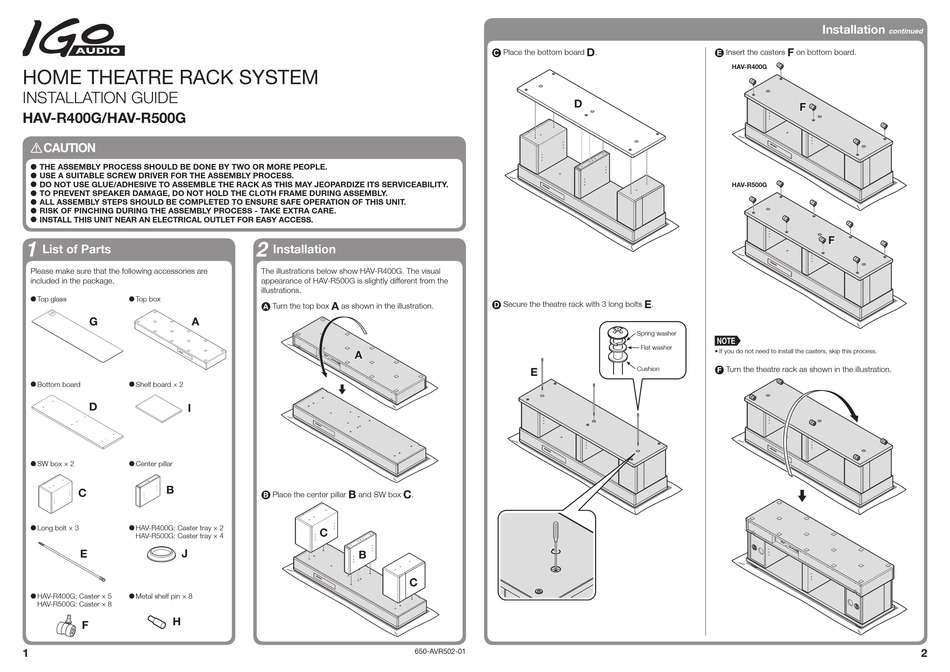

Installation
The illustrations below show HAV-R400G. The visual
appearance of HAV-R500G is slightly different from the
illustrations.
A
A
Turn the top box as shown in the illustration.
A A
B B C
Place the center pillar and SW box .
C
B
C
650-AVR502-01
C D
Place the bottom board .
D
D E
Secure the theatre rack with 3 long bolts .
Spring washer
Flat washer
Cushion
E
Installation
continued
E F
Insert the casters on bottom board.
HAV-R400G
F F
HAV-R500G
F F
• If you do not need to install the casters, skip this process.
F
Turn the theatre rack as shown in the illustration.
2
