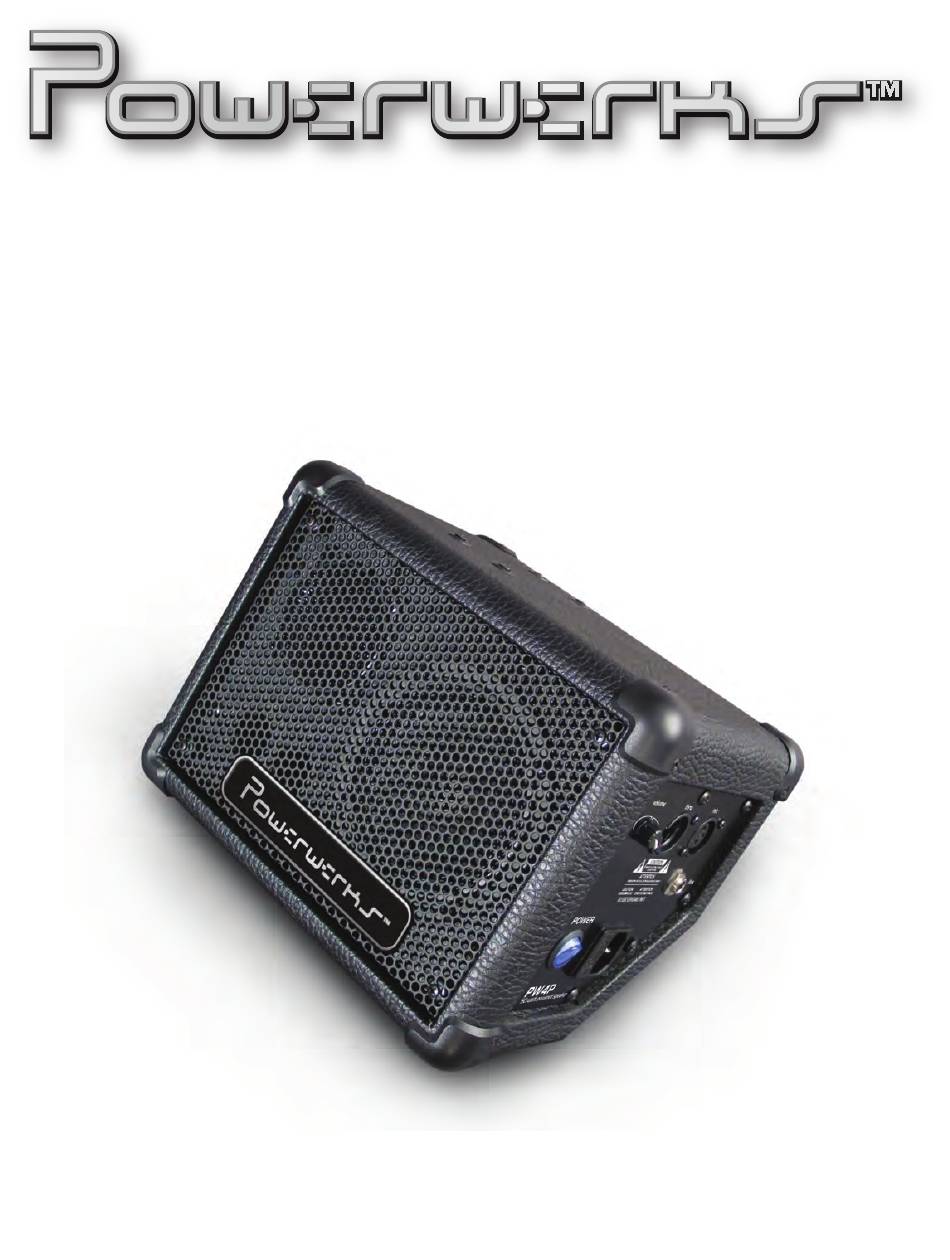

PW4P
OWNER'S MANUAL
Congratulations on the purchase of your Powerwerks PW4P.
This personal monitor combines quality performance and convenient features, all in a highly portable
package. You'll find that the PW4P works well in a variety of environments, amplifying vocals,
instruments, keyboards, drum machines, audio devices and more. This manual will help get you up
and running quickly. We wish you many years of enjoyment from your Powerwerks PW4P.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PW4P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powerwerks PW4P

  • Page 1 This personal monitor combines quality performance and convenient features, all in a highly portable package. You’ll find that the PW4P works well in a variety of environments, amplifying vocals, instruments, keyboards, drum machines, audio devices and more. This manual will help get you up...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Danger 1. Read all safety and operating instructions before Exposure to extremely high noise levels may cause a using this product. permanent hearing loss. Individuals vary considerably to noise 2. All safety and operating instructions should be kept induced hearing loss but nearly everyone will lose some for future reference.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS FRENCH Lire avec attention toutes les recommandations et précautions d'emploi avant d'utiliser ce produit. Danger Toutes les recommandations et précautions d'emploi L‘exposition a des niveaux eleves de bruit peut provoquer une doivent être conservées afin de pouvoir s'y reporter si perte permanente de l’audition, Chaque organisme humain nécessaire.
  • Page 5 2. Volume: This control adjusts the volume level of the unit. 3. Thru: This XLR Jack is used to pass a signal from the Mic Input of the PW4P to another device such as a mixer or mic input device. If connected to a mixer with phantom power, the phantom power passes through to the mic input and can supply power to a condenser microphone.

  • Page 6: Recommended Set Up

    THRU input jack to the microphone. RECOMMENDED SET UP Use an unbalanced line cable for the LINE input jack. If you are connecting the PW4P to a mixer, use the 1/4” LINE input jack. Connect an unbalanced line cable (also called a guitar or instrument cable) to an unbalanced output jack on your mixer.
  • Page 7 If you must connect a line level signal to the mic input, make sure the volume controls on the PW4P and your mixer are set very low, and Volume controls on both the PW4P and your mixer should be set very low to minimize distortion.
  • Page 8 PW4P Personal Monitor Specifications Output Power 1% 8 Ohm load Jack configuration THRU Passes thru signal on MIC input XLR jack Line Out 1/4" Balanced Line level input Actual response is tailored to speaker cabinet for Frequency Response 80HZ-20kHz accurate acoustical response.

  • Page 9: Ec Declaration Of Conformity

    Tel: 1-859-817-7164 Fax: 1-859-817-7199 Declare that the product Product name: Powerwerks Product model number: PW4P to which this declaration relates is in conformity with the following standards; EN55013: 2001/+A1: 2003+A2: 2006 Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment.
