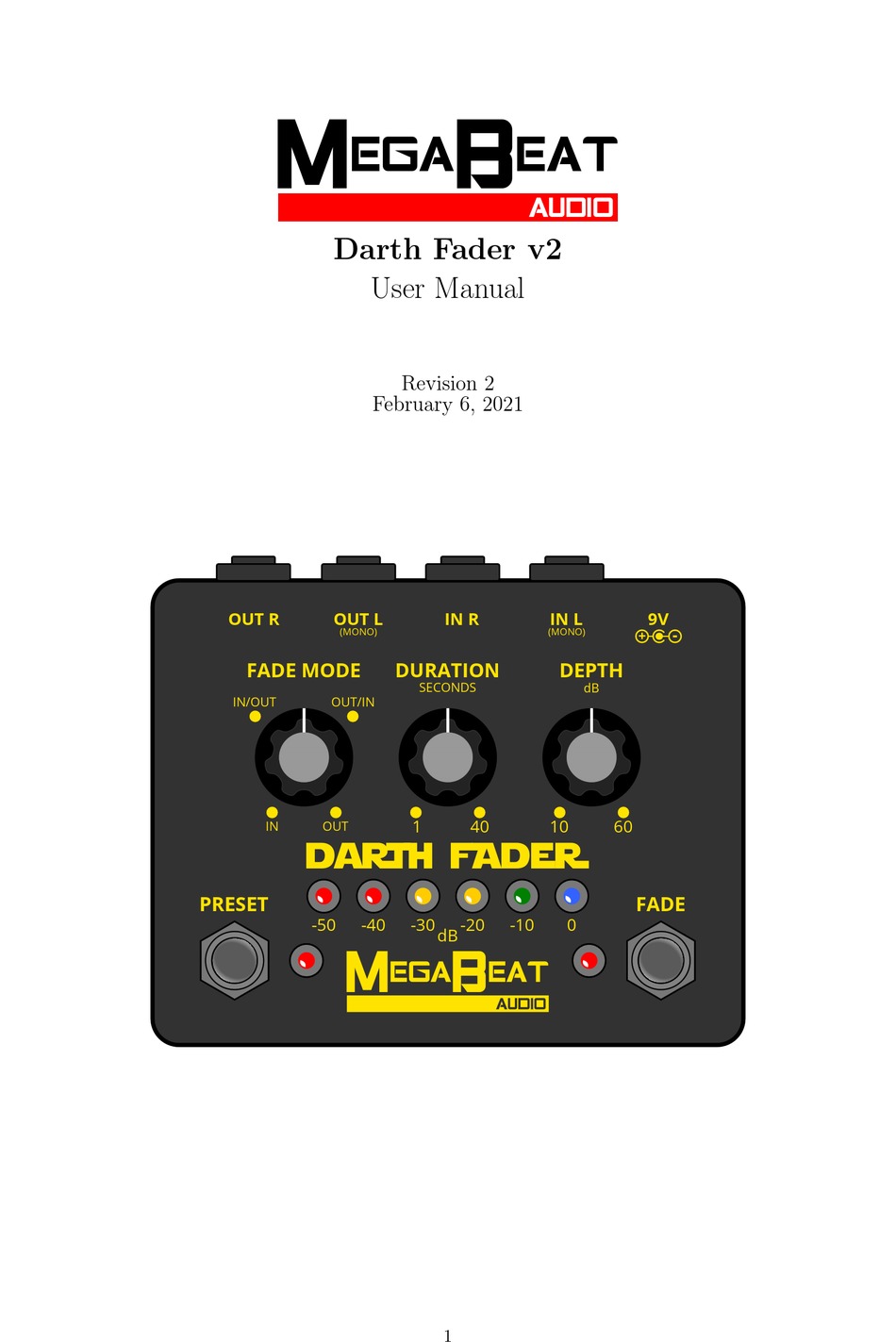

- Page 1 MegaBeat audio Darth Fader v2 User Manual Revision 2 February 6, 2021 OUT R OUT L IN R IN L (MONO) (MONO) FADE MODE DURATION DEPTH SECONDS IN/OUT OUT/IN daRTH fAdeR PRESET FADE MegaBeat...
- Page 2 The use of an ditions. adapter with the wrong specs, including voltage, may damage the pedal. • Hand-made by MegaBeat Audio: from de- sign and soldering to assembly. When an adapter is connected, the battery is disconnected automatically to prevent it from •...
- Page 3 MegaBeat Audio Darth Fader v2, User Manual • Green preset Preset Footswitch LED This footswitch allows you to recall and save pre- • Orange preset sets with your foot so you can do so during your performance. The Peset LED indicates the active preset.
- Page 4 MegaBeat Audio Darth Fader v2, User Manual LEDs Brightness Adjust- • Input impedance: 1 MΩ ment • Output impedance 100 Ω • Power: 9V, battery or 2.1mm x 5.5mm The brightness of the LEDs can be adjusted at 6 different levels to suit all conditions: from dark centre-negative DC connector (Boss-style).
