Automatic sensor-operated, battery-powered flushometer

Advertisement

Quick Links

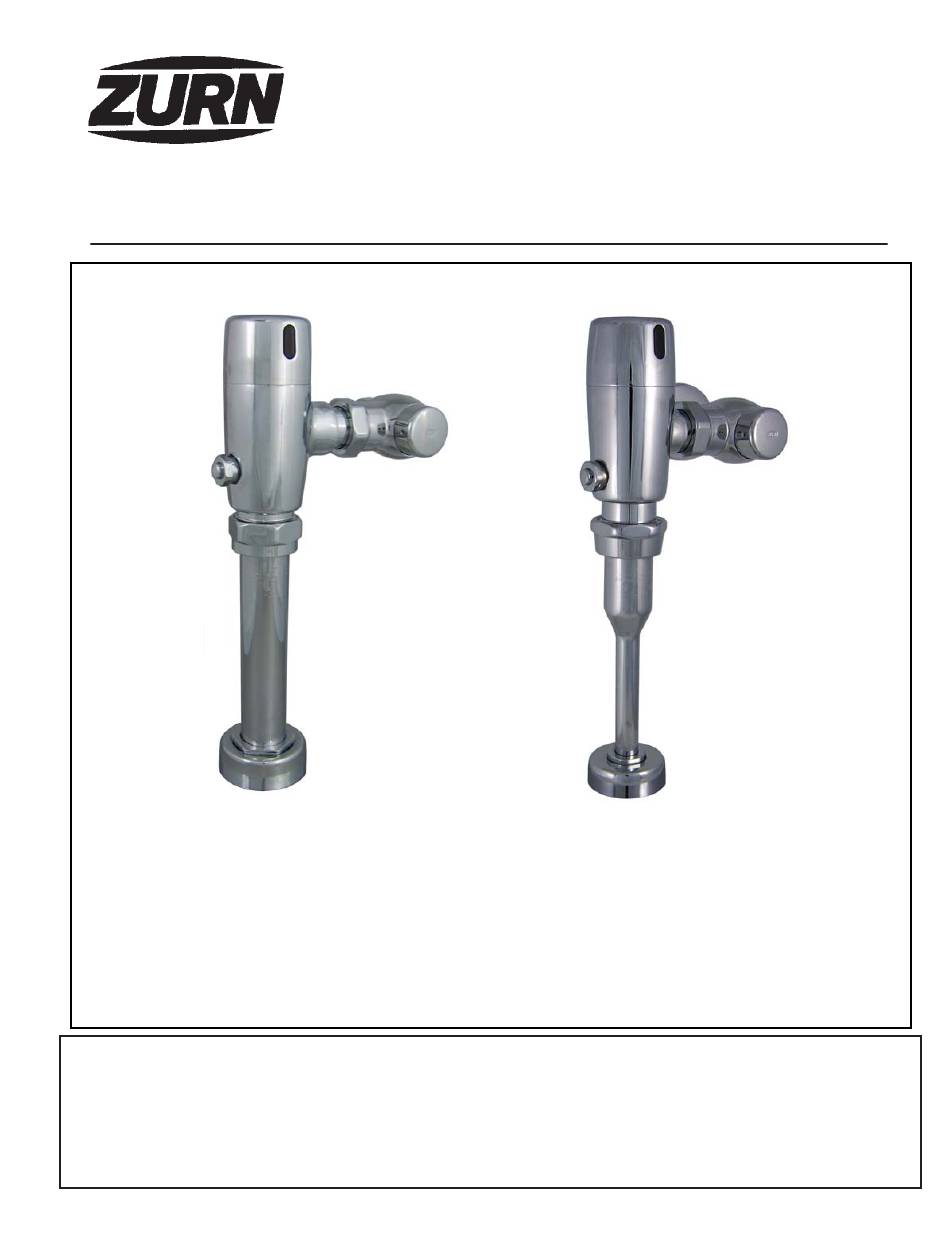

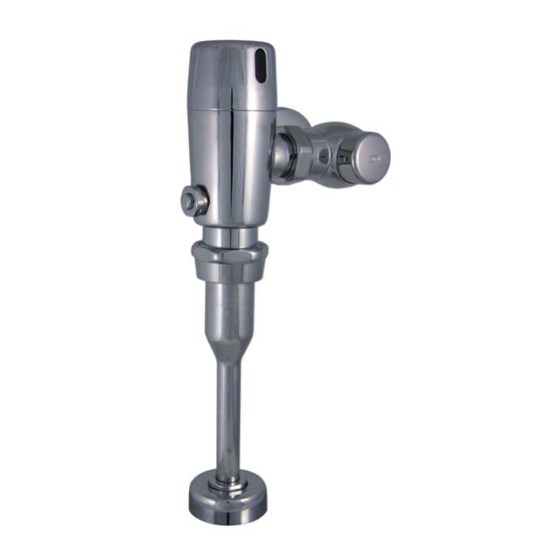

AquaSense Exposed
Closet/Urinal System
ZTS6200-WS1
ZTS6203-WS1
Flushometer for Water Closet
Sensor-Operated, Battery-Powered Valve
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase. Decorative
finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of such defect and the goods are returned to
us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. We shall not be responsible for any labor
charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement
of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and
liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are
"consumer products," the implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods.
All weights stated in our catalogs and lists are approximate and are not guaranteed.
AquaSense
ZTS6200
®
Automatic Sensor-Operated,
Battery-Powered Flushometer
Installation, Operation, Maintenance, and
Parts Manual
Patented and Patents Pending
LIMITED WARRANTY
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaSense ZTS6200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZURN AquaSense ZTS6200

  • Page 1 ® AquaSense ZTS6200 ® Automatic Sensor-Operated, Battery-Powered Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending AquaSense Exposed Closet/Urinal System ZTS6200-WS1 ZTS6203-WS1 Flushometer for Water Closet Sensor-Operated, Battery-Powered Valve LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase. Decorative finishes warranted for one year.
  • Page 2 IMPORTANT: PRIOR TO INSTALLATION • All Plumbing is to be installed in accordance with applicable Prior to installing the ZTS6200 series flushometer valve, codes and regulations. install the items listed below: • Water supply lines must be sized to provide an adequate •...
  • Page 3 Figure 7 Figure 6 7.) Determine the length of vacuum breaker tube (F) required to 6.) Insert the flush valve tailpiece (B) into the stop valve (A) and join the flush valve and fixture spud. Cut the vacuum breaker hand tighten the lock nut (D) to the stop valve. Plumb the tube, if required, to this length.
  • Page 4 Care and Cleaning 13.) A. Ensure any flush valve containing or utilizing electronics is not pressure washed. Water and cleaner blown through the seals at high pressures damage the electronics and internals. B. Ensure cleaners containing ammonia or chlorine com- pounds (especially ammonium chloride) to sanitize flush valves are not used because they will chemically etch the polycarbonate plastic lens preventing IR from being trans-...
  • Page 5 Figure 13 TROUBLE SHOOTING GUIDE Problem Indicator Cause Solution Valve does not flush: 1.) Sensor flashes continu- 1.) Low battery. 1.) Replace battery. ously when user steps within range. 2.) Red light in the sensor 1.) Range is too short 1.) Increase the range.
  • Page 6 Phone: 1-800-997-3876      Fax: 919-775-3541      World Wide Web: www.zurn.com In Canada: ZURN INDUSTRIES LLC      3544 Nashua Drive      Mississauga, Ontario L4V1L2      Phone: 905-405-8272 Fax: 905-405-1292 FV533 Rev.
