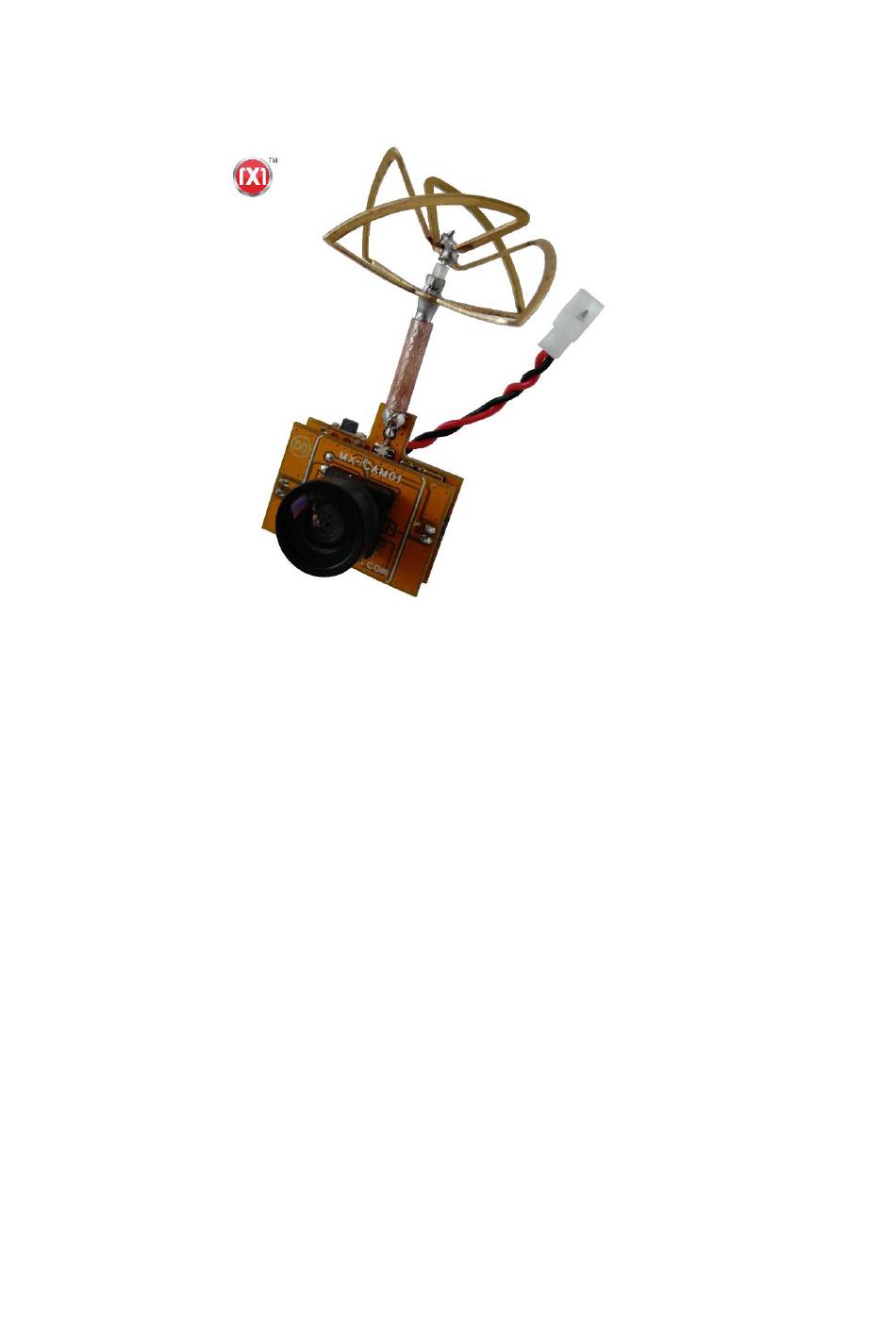

MXT-5G8-S1 is a 25mW analog video transmitter integrated with a
800TVL minimal illumination camera. It not only supports OSD signal input,
but also supports MX-SmartVTX protocol(compatible with SmartAudio),
moveover,
it can switch automatically to video signal input source when
MX-SmartVTX or SmartAudio is detected
VTX Features：
1） Power supply：3.5~5.0V;
2） Current consumption：360mA/3.5V，240mA/5.0V;
3) VTX output power：25mW;
4）General used 40CH working frequencies globally;
5) Integrated with Low-pass LC filter;
MXT-5G8-S1 Manual
Advertisement
Summary of Contents for BANGGOOD MXT-5G8-S1
- Page 1 MXT-5G8-S1 Manual MXT-5G8-S1 is a 25mW analog video transmitter integrated with a 800TVL minimal illumination camera. It not only supports OSD signal input, but also supports MX-SmartVTX protocol(compatible with SmartAudio), moveover, it can switch automatically to video signal input source when MX-SmartVTX or SmartAudio is detected VTX Features：...
- Page 2 6）Supporting OSD signal input; 7）Supporting MX-SmartVTX protocol (Note 1); 8）Switchable video signal input source; 9）Size：22.5*13.5*40mm(L*W*H); Note: 1) MX-SmartVTX is a protocol for connecting between VTX and flight control board, through which customer can set up working frequency and power graphically, besides, MX-SmartVTX is compatible with SmartAudio. MX-CAM01 features：...
- Page 3 The button on VTX board has three functions or use ways on MXT-5G8-S1: set up Channel, set up band; set up video signal input source. Connect power, press SW 2 seconds after LED working frequency indication is finished, VTX will enters set up menu, and two of the LEDs will indicate the present menu state.
- Page 4 Set up video signal input source (for connecting an outside OSD): MXT-5G8-S1 supports two video signal input sources: one is from the internal analog camera MX-CAM01; The other is for outside video signal input source such as OSD signal, under this mode, the video signal from internal MX-CAM01 will be overlapped to the outside OSD and then input MXT-5G8-S1.
- Page 5 Besides: As soon as MX-SmartVTX is detected by MXT-5G8-S1, MXT-5G8-S1 will change its video signal input source to outside. If customer wants to make the outside video signal as default input source, customer needs set up it manually. Note: 1) When the video signal from internal analog camera MX-CAM01 is as input video source, and also is connected video signal from outside at same time, the image would turn obscure, it is normal, do not worry.
- Page 6 Then enter set up mode according to guided message on OSD, and enter set up menu for VTX, VTX will save the data automatically as soon as the setup is effective(red and blue LED flashes 6 times in turn).
- Page 7 LED flashing state indicates current working frequency when VTX is powered. LED Indication function: MXT-5G8-S1 indicates different working state through two color LED lights which is simple and efficiency. Flashing times of red LED indicates different option, flashing one time indicates Channel, flashing two times indicates Band, Flashing times of blue LED indicates the value of the option.
- Page 8 Red LED Blue LED Chann Airwave Race Band Frequency table Chann Band A 5865 5845 5825 5805 Band B 5733 5752 5771 5790 Band E 5705 5685 5665 5645 Airwave 5740 5760 5780 5800 Race 5658 5695 5732 5769 （ The selections inyellowrequires HAM license to operate legally. The video transmitter ensures that youcannot select illegal channels or power levels by accident: ）...
- Page 9 Ports description: Note: Video Out is signal output from internal analog cam MX-CAM01, RXD is MX-SmartVTX protocol or SmartAudio protocol signal cable, EX video IN is Video signal input from outside (normally is for OSD input), GND is for ground cable.
