Summary of Contents for RHINO MOTION CONTROLS RMCS-2301

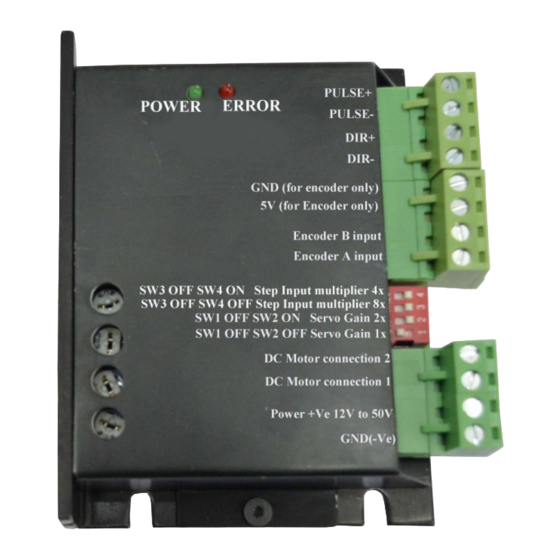

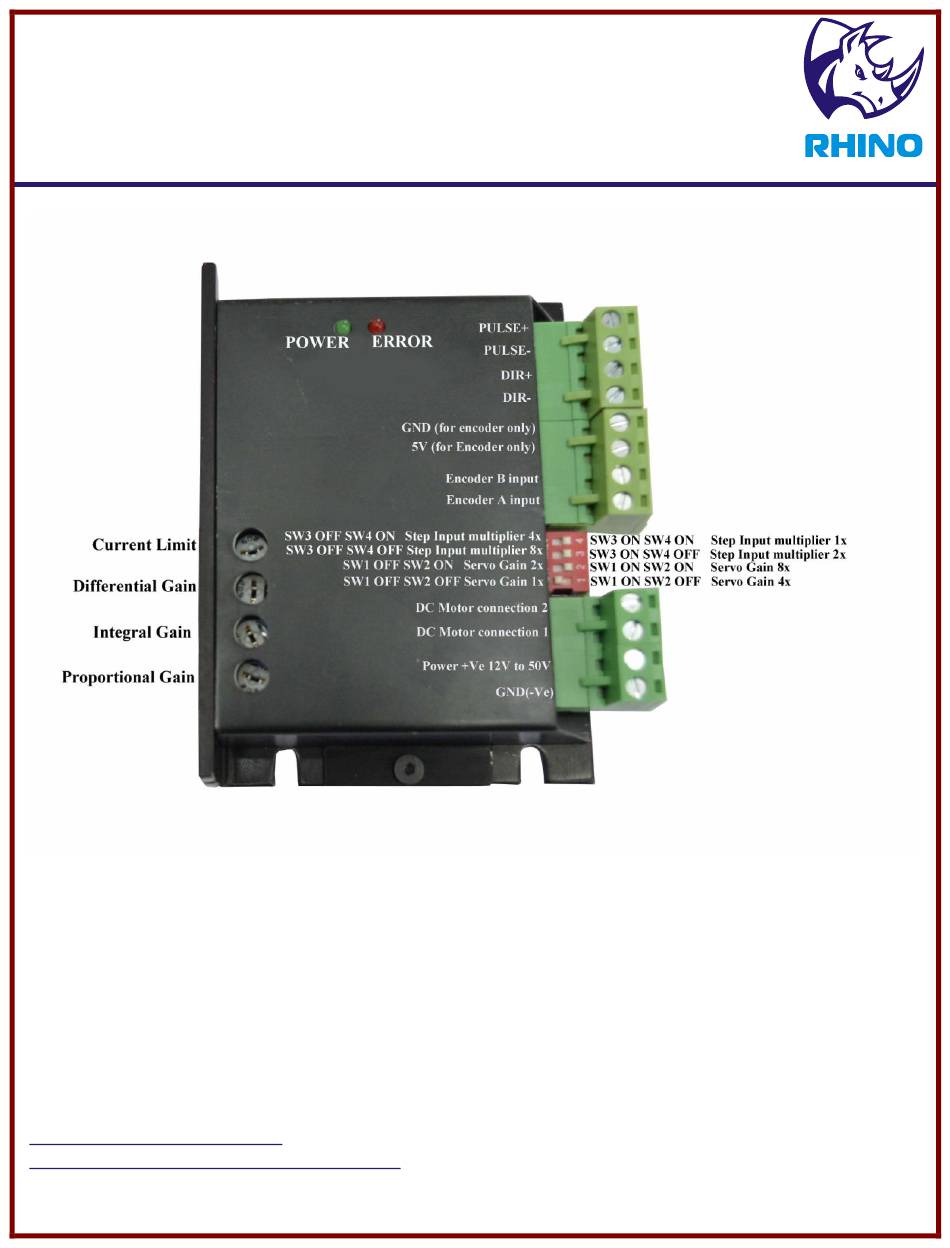

- Page 1 RHINO MOTION CONTROLS RMCS-2301 50V 20A servo drive / controller Digital Step/Direction input interface (Max. 50Vdc and 20A) Installation Manual and Datasheet http://www.rhinomc.com http://www.rhinomotioncontrols.com Page 1 High-Torque Encoder DC Servo Motor and Driver [RMCS-225X]...
-
Page 2: Key Features
LED indication for power and error states Description Thank you for purchasing RMCS-2301 50V 20A servo drive/controller. The position of the DC servo motor can be controlled by a STEP/PULSE and DIRECTION digital interface similar to stepper motors. The PULSE/STEP, DIRECTION inputs are optically isolated. Both inputs work with 2.5V, 3.3V or 5V logic drive signals. -
Page 3: Mechanical Specifications
RHINO MOTION CONTROLS RMCS-2301 50V 20A servo drive / controller Digital Step/Direction input interface (Max. 50Vdc and 20A) Mechanical Specifications Specification Details Dimensions (L * W * H) 100mm * 75mm *25mm Weight 155gms Heat Sink Anodized Aluminum 3mm thickness Mounting Screw Holes 3.6mm minimum diameter... - Page 4 RHINO MOTION CONTROLS RMCS-2301 50V 20A servo drive / controller Digital Step/Direction input interface (Max. 50Vdc and 20A) Setting Error Limit and Multiplier Multiplier Step Input Multiplier 8x Step Input Multiplier 4x Step Input Multiplier 2x Step Input Multiplier 1x...
- Page 5 RHINO MOTION CONTROLS RMCS-2301 50V 20A servo drive / controller Digital Step/Direction input interface (Max. 50Vdc and 20A) Control Signal Connection PNP pull-up In this connection technique all the signal -ve inputs are connected to a common low voltage GND. The opto-isolators LED is turned–on by a pull-up on the +Ve terminals by an PNP-transistor output...
-
Page 6: Power Supply Selection
RHINO MOTION CONTROLS RMCS-2301 50V 20A servo drive / controller Digital Step/Direction input interface (Max. 50Vdc and 20A) Guide to General Problems Problem Symptom Possible Reasons and Solutions Encoder isn't connected correctly RED Led blinks thrice Load is too high or pulses are being given too fast for servo to respond. - Page 7 Six-Month Warranty Rhino Motion Controls (rhinomc.com) warrants its products against defects in materials and workmanship for a period of 6 months from shipment delivery. During the warranty period, Rhino Motion Controls will either, at its option, repair or replace products which proved to be defective.
