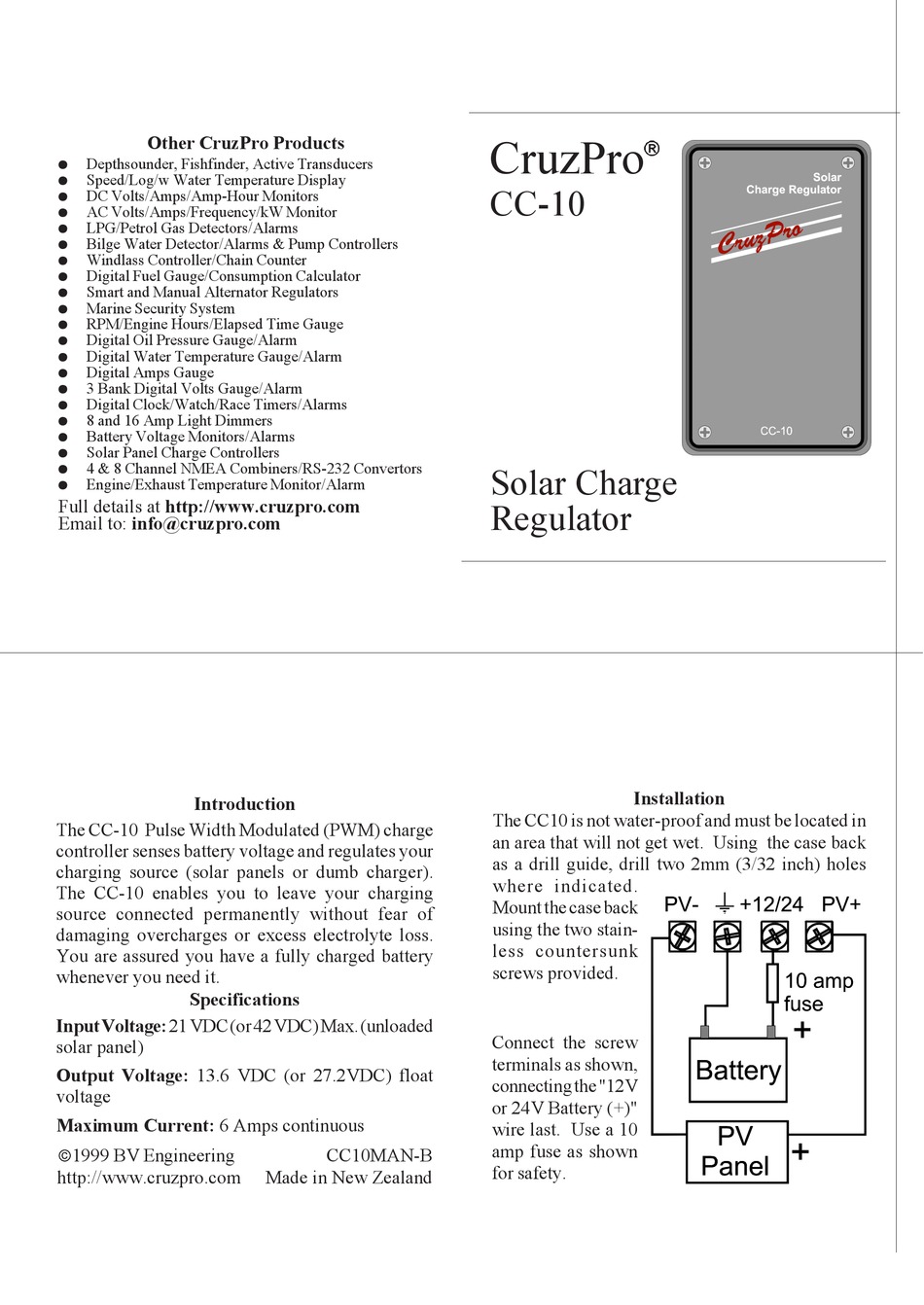

CruzPro CC-10 Quick Start Manual

Other CruzPro Products
l Depthsounder, Fishfinder, Active Transducers
l
Speed/Log/w Water Temperature Display
l DC Volts/Amps/Amp-Hour Monitors
l
AC Volts/Amps/Frequency/kW Monitor
l
LPG/Petrol Gas Detectors/Alarms
l
Bilge Water Detector/Alarms & Pump Controllers
l
Windlass Controller/Chain Counter
l
Digital Fuel Gauge/Consumption Calculator
l
Smart and Manual Alternator Regulators
l
Marine Security System
l
RPM/Engine Hours/Elapsed Time Gauge
l Digital Oil Pressure Gauge/Alarm
l
Digital Water Temperature Gauge/Alarm
l Digital Amps Gauge
l
3 Bank Digital Volts Gauge/Alarm
l Digital Clock/Watch/Race Timers/Alarms
l
8 and 16 Amp Light Dimmers
l Battery Voltage Monitors/Alarms
l
Solar Panel Charge Controllers
l 4 & 8 Channel NMEA Combiners/RS-232 Convertors
l
Engine/Exhaust Temperature Monitor/Alarm
Full details at http://www.cruzpro.com
Email to: info@cruzpro.com
Introduction
The CC-10 Pulse Width Modulated (PWM) charge
controller senses battery voltage and regulates your
charging source (solar panels or dumb charger).
The CC-10 enables you to leave your charging
source connected permanently without fear of
damaging overcharges or excess electrolyte loss.
You are assured you have a fully charged battery
whenever you need it.
Specifications
Input Voltage: 21 VDC (or 42 VDC) Max. (unloaded
solar panel)
Output Voltage: 13.6 VDC (or 27.2VDC) float
voltage
Maximum Current: 6 Amps continuous
1999 BV Engineering
http://www.cruzpro.com
CC10MAN-B
Made in New Zealand
CruzPro
CC-10
Solar Charge
Regulator
Installation
The CC10 is not water-proof and must be located in
an area that will not get wet. Using the case back
as a drill guide, drill two 2mm (3/32 inch) holes
where indicated.
Mount the case back
using the two stain-
less countersunk
screws provided.
Connect the screw
terminals as shown,
connecting the "12V
or 24V Battery (+)"
wire last. Use a 10
amp fuse as shown
for safety.
