JONARD TOOLS TETP-901 Instruction Manual

TALK BATTERY MODE
1. Press the ON/MODE button to turn on the TET-700BC. Press the mode button repeatedly until the yellow LED
next to Talk/batt lights.

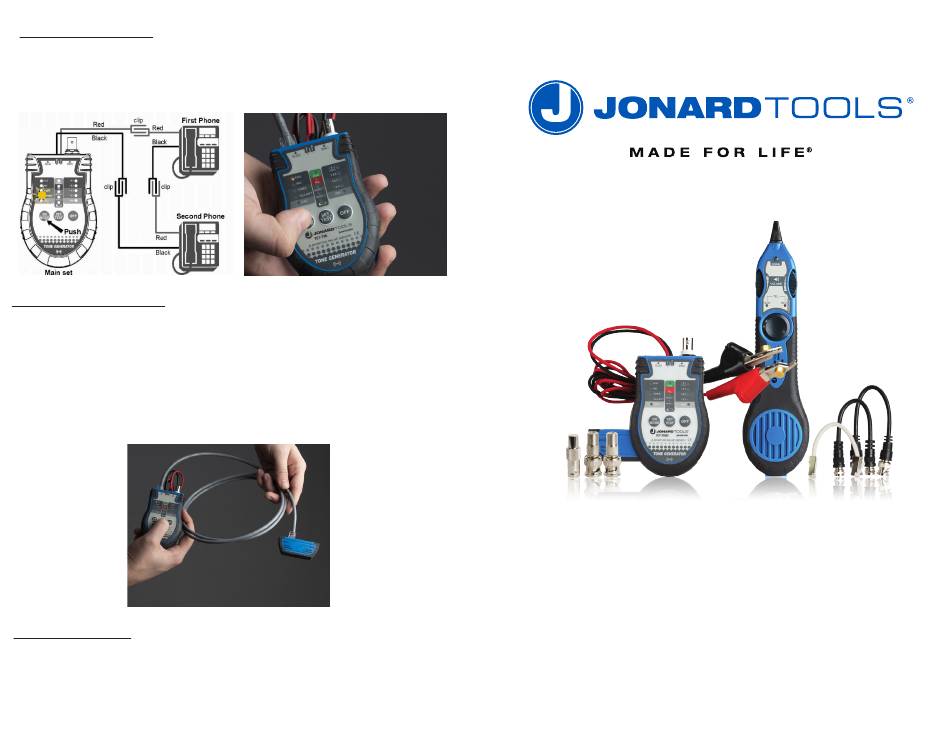

2. Using the ABN clips, connect the TET-700BC to two telephones (Figure 3). Using this mode will
drain the battery quickly, so the TET-700BC should only be used for short intervals during this function.
(Figure 3)
RJ45 CABLE TEST MODE
1. Press the ON/MODE button to turn on the TET-700BC. Press it repeatedly until the yellow LED next to "RJ45"
illuminates.
2. Connect a RJ45 cable to the TET-700BC. Remove the remote terminator from the body of unit, connect it to
the other end of the RJ45 cable, and push SET/TEST button to test cable (Figures 4 & 5).
If the cable is open: The FAIL LED will illuminate, while the LEDs for any open pairs will be off.
If the cable is shorted: The wire pairs that are shorted will be indicated by flashing LED's and the
Fail LED will light.
If the cable is good: All wire pair LED's as well as the PASS LED will illuminate.
3. Power off the unit manually or it will power off automatically after 20 seconds if no other button is pressed.
CONTINUITY MODE
1. Press the ON/MODE button to turn on the TET-700BC. Press the mode button repeatedly until the yellow
LED next to "CONT" illuminates.
2. Using the ABN clips, connect the TET-700BC to the cable being tested and push the Set/Test button.
If the TET-700BC detects an open, the Fail LED will illuminate, and the 7&8 LED will blink.
3
(Figure 4)
(Figure 5)
TETP-901
CABLE TESTER TONE &
PROBE KIT+ W/ ABN
INSTRUCTION MANUAL
