Summary of Contents for Gantner GL7p
- Page 1 GL7p Battery-Powered, Door-Mounted Electronic Locker Lock ® Identification via RFID (MIFARE , ISO 15693, NFC, HID iCLASS) and Optional PIN Code Installation, Configuration, Operation Document Version 1.2 www.gantner.com HB_GL7p--EN_12...
- Page 2 Some of these names may be trademarks or registered trademarks of the corresponding company. Availability The GL7p is not available in North America (United States, Canada). Contact The contact information for questions regarding this product or for general enquiries is listed below:...
- Page 3 GL7p - Battery-powered, door-mounted electronic locker lock Important Information Dear Customer, Our aim is to ensure that our product operates with safety and to your complete satisfaction. To achieve this aim, please take this opportunity to familiarize yourself with the following guidelines.
- Page 4 GL7p - Battery-powered, door-mounted electronic locker lock 2. Property Damage Messages Property damage messages are used to describe potentially hazardous situations that may lead to property damage. These messages have the same layout as safety messages but use the signal word "NOTICE" instead of “CAUTION”.
- Page 5 Do not attempt to repair a product after a defect, failure, or damage is detected. In addition, do not put the product back into operation. In such cases, it is essential to contact your GANTNER representative or the GANTNER support hotline.
- Page 6 GL7p - Battery-powered, door-mounted electronic locker lock The GL7p was developed and fabricated under the quality management standard ISO 9001 and GANTNER Electronic GmbH is also certified according to standard ISO 14001. This product is in conformity with the following EC directives, including all applicable amendments:...
- Page 7 The GL7p is not available in North America (United States, Canada). The WEEE symbol on GANTNER products and their packaging indicates that the corresponding material must not be disposed of with normal household waste. Instead such marked waste equipment must be disposed of by handing it over to a designated electronic waste recycling facility.
- Page 8 GL7p - Battery-powered, door-mounted electronic locker lock GL7p www.gantner.com HB_GL7p--EN_12...
-
Page 9: Table Of Contents
Configuration with GAT Config Manager ....................37 5.2.1 Setup for Configuration in GAT Config Manager ................. 37 5.2.2 View and Edit the GL7p Configuration Settings ................... 39 5.2.3 Upload Configuration Settings to the GAT ECO.Lock 7xxx F/ISO ............40 5.2.4 Updating the GL7p Firmware ....................... 41 Configuration with the MoLA App ...................... - Page 10 GL7p - Battery-powered, door-mounted electronic locker lock GL7p Table of Contents Configuration Settings of the GL7p ......................44 5.4.1 Operating Mode ........................... 44 5.4.2 Locker Number ............................ 44 5.4.3 Auto-Unlock ............................44 5.4.4 Duration of Use............................ 45 5.4.5 Locking of Personal Locker without Data Carrier ................45 5.4.6 RF Standards ............................
-
Page 11: Introduction
- GL7p.2500 - GL7p.3500, GL7p.3501, GL7p.3502 In this manual, the terms "GL7p" and "lock" are used to represent all listed locks. If information in the manual only applies to a specific lock, the product name concerned is used. This manual provides an overview of how to configure the GL7p using the configuration software GAT Config Manager. -
Page 12: Target Group
Introduction 1.4 Target Group This manual contains information relevant for the different stages in the operating life of the GL7p. Information regarding the installation, commissioning, and service/maintenance is separated into corresponding chapters. When a chapter is intended for a specific audience, this is clarified at the beginning of the chapter. -
Page 13: General Information
2.3 Functional Description The GL7p is installed on the inner side of the locker door and is suitable for most types of locker material, e.g., sheet metal, wood, HPL, and solid plastic. The GL7p can be used with left- and right-hinged locker doors alike. The lock can be mounted both vertically and horizontally, which also makes it suitable for use in lockers with very low door heights. -

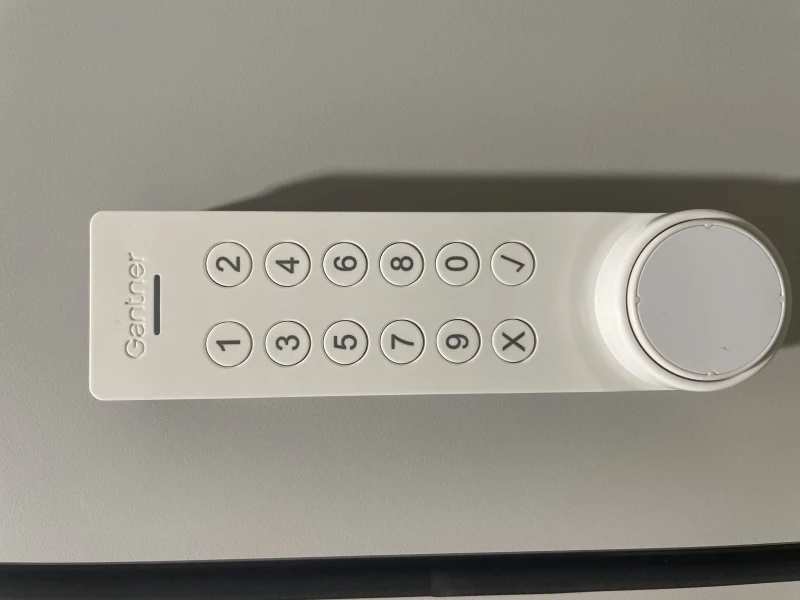

Page 14: Gl7P Variants
GL7p in using their data carrier. The GL7p reads the data carrier information and determines whether the user is authorized to use the locker. When the user is authorized, the GL7p locks the locker door. The LED signals the locking action and the button remains in the pressed-in position. -
Page 15: Rfid Technologies
- The GL7p operates with all currently known ISO 15693 data carriers. In addition to the different RFID technologies, data carriers are available in a variety of shapes and sizes. The GL7p is designed to operate with all different types of data carrier media. -
Page 16: Terminology
User / Guest / Visitor These general terms refer to the people in a facility who use the locker system with GANTNER locker locks, data carriers, and other GANTNER devices on a daily basis. -
Page 17: System Components
GL7p - Battery-powered, door-mounted electronic locker lock GL7p General Information 2.6 System Components The GL7p locker locking system includes the following system parts. A description of the individual components is provided on the following page. 3. GL7p.1501 4. GL7p.3501 7. GL7p.1502 1. - Page 18 12. GAT Key Tag FD Open Master (Part No. 1100369) Optional data carrier. Not included in the GAT ECO.Basic Set FD. MIFARE data carrier that can open every GL7p locker in the assigned system (=master key function) instead of a MASTER data carrier. In contrast to the MASTER data carrier, this data carrier can only unlock a locker but not lock it again.
- Page 19 General Information 15. GL7p Number Sticker Self-adhesive button sticker that can be attached to the accompanying GL7p Button Plate (Part No. 748633). Printable with a customer-specific design. This item is available in sheets of 50 stickers with pre-printed numbers in the following number ranges: - GL7p Number Sticker 001-050 (Part No.
-
Page 20: Gl7P Dimensions And Components
9. Screw for anti-rotation protection 4. Front part 10. Battery compartment cover 5. Rear part 11. Battery compartment key 6. Mounting thread (M19x1) Figure 2.2 – GL7p dimensions and components (dimensions in mm – inches shown in brackets) www.gantner.com HB_GL7p--EN_12... -
Page 21: Installation
Ensure that the latch of the lock slides easily in and out without resistance of the opening in the locker body. Also test that the GL7p locks and unlocks as required, ideally using a data carrier of the same type to be used with the locker system to ensure that the data carrier functions as required. -
Page 22: Door Width And Thickness
3.5 Door Width and Thickness The GL7p is suitable for locker doors with a door leaf thickness of 1 to max. 28 mm. Depending on the thickness of the door leaf, different screws and/or the supplied spacer sleeve must be used for anti-rotation prevention. For details, see "3.8.2 Instructions for Installing the GL7p". - Page 23 ► Install the supplied standard latch. ► Lock the GL7p using a valid data carrier or PIN code while keeping the locker door closed so far that the latch retracts exactly into the existing latch opening in the locker wall.
-
Page 24: Definition Of The Door Hinge (Right Of Left-Hinged Door)
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Installation 3.7 Definition of the Door Hinge (Right of Left-Hinged Door) For installation, it is important to determine whether the locked door is hinged on the left or right side, which is... - Page 25 GL7p - Battery-powered, door-mounted electronic locker lock GL7p Installation The position of the latch of the GL7p is different for right and left-hinged doors. You can make this change yourself (see "3.8.2 Instructions for Installing the GL7p"). The installation for right-hinged doors is described in the following pages. The installation process for left-hinged doors is the same as for right-hinged doors, except that the locker door is rotated 180°...
-
Page 26: Installation Of The Gl7P
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Installation 3.8 Installation of the GL7p After determining the alignment of the lock and the door stop, the mounting holes can be drilled. The following description shows the holes for a right-hinged door with vertical lock mounting. -
Page 27: Instructions For Installing The Gl7P
KA35 or 3.5 mm self-tapping screws. Figure 3.8 – Installation of the GL7p ► Mount the GL7p onto the locker door by inserting the mounting thread (5) and anti-rotation dome (9) into the holes in the locker door. - Page 28 ► When the locker is locked, ensure that the door is held in the closed position by the latch without creating a door gap. See chapter "4 COMMISSIONING" for information on how to insert the batteries and commission the GL7p. www.gantner.com...
-
Page 29: Attaching The Number Plate
3.9 Attaching the Number Plate On the button of the GL7p, the round number plate (0.8 mm thickness) must be attached. A neutral-white number plate without printing is included with the GL7p upon delivery (GL7p Button Plate, Part No. 748633). The number plate can also be ordered with laser numbering. - Page 30 ► Align the number plate with the 4 tabs in the button and attach it. ► If applicable, align the button sticker with the 4 tabs in the button and attach it to the number plate. For more information on the design and printing of customized button stickers, please contact your GANTNER reseller.
-
Page 31: Commissioning
If the battery becomes too weak, the locker can no longer be locked. The GL7p indicates a low battery condition by blinking the LED 5 times red during an unlocking and a locking attempt, and the lock emitting 5 beeps. -
Page 32: Replacing The Battery
To ensure that the time and date remain correct after a battery change, the battery replacement must not take longer than 3 minutes. If the GL7p is without battery for more than 3 minutes, the time and date must be reset. -
Page 33: Usb Connection
(Windows 7 or higher), a Micro-B USB port is provided on the side of the GL7p. The USB port location on the side of the lock allows configuration to be carried out even while the lock is installed. - Page 34 ► Open the battery compartment (see section “4.2.2. Inserting the Battery”) ► Connect the Micro-B connector of the USB cable into the USB port on the GL7p. When the GL7p is connected to the computer for the first time, the driver is automatically installed and the lock recognized.
- Page 35 ► Now press the button of the GL7p to activate configuration mode. a) If the lock has not been configured yet (default setting), the GL7p only has to be connected. b) If the lock has already been configured at least once, i.e., the default setting has been deactivated, the button must be pressed with the SERVICE data carrier from the Basic Set.
- Page 36 GL7p - Battery-powered, door-mounted electronic locker lock GL7p Commissioning www.gantner.com HB_GL7p--EN_12...
-
Page 37: Configuration
5.1 General Information The GL7p is configured using a PC/laptop and GAT Config Manager software or with the MoLA app on a mobile device. The configuration file must only be uploaded to the lock once. The configuration file of the first lock in the system is saved in GAT Config Manager after which the file is uploaded to each lock that requires the same configuration. - Page 38 NOTE! Min. version 3.13 of GAT Config Manager software is required to configure the GL7p. NOTE! The GL7p is powered by the USB cable, which means that the battery does not have to be inserted in the lock during configuration. Ensure however that the GL7p is not de-energized for more than 1 minute (e.g., after disconnecting the USB cable until the battery is inserted), otherwise the time and date will be erased.
-
Page 39: View And Edit The Gl7P Configuration Settings
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Configuration ► To add a GL7p to a location, right-click on the location and select “Add GAT Lock 7000 Series” from the “Add Device” menu (Figure 5.3). The GL7p is added to the selected location. -
Page 40: Upload Configuration Settings To The Gat Eco.lock 7Xxx F/Iso
Upload Configuration Settings to the GAT ECO.Lock 7xxx F/ISO When you are finished configuring the GL7p settings in GAT Config Manager, it is important to finalize the configuration by uploading the file to the GL7p. Complete the following steps to finalize the configuration. -
Page 41: Updating The Gl7P Firmware
5.2.4 Updating the GL7p Firmware GANTNER periodically releases firmware updates for the GL7p. In order to take advantage of the latest features, it is recommended to update the GL7p to the latest firmware during configuration or at regular intervals. ► Right-click onto the GL7p in the “Devices” tree and select “Update Firmware”. - Page 42 GAT Config Manager searches the GANTNER server for new firmware versions for the selected type (GL7p main device or the selected reader type). If a connection to the server cannot be established, or no new firmware versions are found, a corresponding message is displayed. In this case, click "OK".
-
Page 43: Configuration With The Mola App
The APP KEY data carrier is a special system data carrier (see "6.5. Summary of System Data Carriers") and is included in the GAT ECO.Basic Set. This data carrier is required to change the configuration of a GL7p or to make a new configuration of a lock that has already been configured once. -
Page 44: Configuration Settings Of The Gl7P
5.4.2 Locker Number The number of the locker where the GL7p is installed can be defined. The locker number setting is found here: Configuration > Operating mode > General > LockerNumber ► Enter the locker number for the GL7p into the “Locker number” field. -
Page 45: Duration Of Use
If this function is activated, a value must be entered. NOTE! For the automatic unlocking function, ensure that the correct time is set in the GL7p so that the automatic unlocking occurs at the correct time. Please note that the GL7p does not consider changes between summer and winter times. -
Page 46: Master Data Carriers
MASTER Data Carriers Up to 10 MASTER data carriers (also called MASTER cards) can be assigned to the GL7p to allow the locker to be opened in special circumstances, e.g., when a user has lost their data carrier. For this functionality, the MASTER data carriers must be first entered, which is done here: Configuration >... -
Page 47: Configuration Settings Table
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Configuration 5.4.10 Configuration Settings Table The following table lists all the configuration information available for the GL7p in GAT Config Manager. Options Description Format Default Operating mode General OperatingMode List option Free Locker Select the operating mode of the lock: - “FreeLocker”... - Page 48 GL7p - Battery-powered, door-mounted electronic locker lock GL7p Configuration Reader RF Standards ISO15693 Boolean False When set to "True", ISO 15693 data carriers can be read by the lock ISO14443A Boolean True When set to "True" ISO 14443 (MIFARE) data carriers ca be read by the lock.
- Page 49 100 ms (e.g. 600 = 1 min.). As each pulse requires energy, the period should be selected so that wireless signals are still quickly detectable in activation mode. BLE PreLock Timeout Period to lock the GL7p after a wireless command. Input Integer in seconds. KeyPad...
- Page 50 Firmware of the wireless interface electronics BatteryMgt Settings Batt Idle MA Information for service technicians Integer Batt Idle Information for service technicians Integer Table 5.1 – Configuration settings for the GL7p in GAT Config Manager www.gantner.com HB_GL7p--EN_12...
-
Page 51: Operation
6.2 General To operate the GL7p (e.g., to lock or unlock a locker), the user must identify themselves at the GL7p with their RFID data carrier or PIN code. For identification via RFID data carrier, the button must be pressed in with the data carrier. Pressing the button activates the GL7p and the data carrier is read. -
Page 52: Free Locker Mode (With Or Without Duration Of Use Function)
For data carriers that are configured with an expiry date, the date is checked by the GL7p. If the date has passed, the locker cannot be used. - Page 53 NOTE! The data carriers must be coded accordingly for the duration of use function (the corresponding config bits on the data carrier must be set). The GL7p must also be configured for the function (see section “5.4.4. Duration of Use ”). There are two configuration modes for the function: - Absolute duration of use (“Duration”...
-
Page 54: Free Locker Universal Mode
The time on the data carrier is checked and the current time written onto the data carrier. b) Invalid data carrier: The LED flashes blue briefly and then red and the GL7p switches off without completing the locking action. Possible reasons for this include: - Another locker has already been locked using the data carrier. -
Page 55: Free Locker Unique Number Mode
Valid data carrier: The LED flashes blue briefly and then green and the action (lock/unlock) is carried out. b) Invalid data carrier: The LED flashes blue briefly and then red and the GL7p switches off without completing the locking action. -
Page 56: Personal Locker Programming Card Mode
For lockers operating in “personal locker programming card” mode, up to 32 data carriers and/or 32 PIN codes per GL7p can be authorized for use. These 32 data carriers and/or 32 PIN codes can be used with the locker as often as required and share the same authorization access, e.g., for use as family cards. -
Page 57: Personal Locker Expiry Date Mode
► Within 5 seconds, press the button of the GL7p in using the PROGRAM data carrier for approximately 1 second. ► When the action is successful, the LED flashes red 3 times and 2 beeps are emitted. The GL7p then switches off. - Page 58 Invalid data carriers: The LED flashes red briefly and the GL7p switches off without carrying out an action. There is also no unlimited usage period for the locker, i.e., the expiry date must be a valid date (not "0"). If the "valid to"...
-
Page 59: Gat Eco.basic Set Fd
- BLOCKING data carrier 6.5 Summary of System Data Carriers The data carriers included in the GAT ECO.Basic Set are required to configure and maintain a GL7p equipped locker system. The system data carriers are coded to function with specific installations and will only function with the respective system. -
Page 60: Open Master Data Carrier (Optional Accessory)
OPEN MASTER Data Carrier (Optional Accessory) The OPEN MASTER data carriers can unlock any GL7p in a system. If a user’s data carrier is lost, an emergency opening of the corresponding locker can be carried out using an OPEN MASTER data carrier. Compared to the MASTER data carrier, the OPEN MASTER data carrier cannot lock the locker after it has been opened. -
Page 61: Battery Data Carrier
APP KEY Data Carrier The APP KEY data carrier is required to configure the GL7p using the MoLA app. This app can be installed on mobile devices with an Android operating system. When the lock is in factory mode and configured for the first time, the APP KEY is not needed. -
Page 62: Summary Of Gl7P Signalization
6.6 Summary of GL7p Signalization The electronics of the GL7p are activated when the lock button is pressed in. The activation is signaled by the LED at the top of the GL7p (LED flashes blue). Immediately thereafter, the following lock states are signaled via the same LED and the integrated beeper. -
Page 63: Cleaning And Maintenance
The door must close shut without increased effort. Readjust the door (see below) if this does not happen. ► Lock the door. Depending on the type of lock (data carrier or PIN code), press the GL7p button in with a valid data carrier or enter a valid PIN code when the door is closed. -
Page 64: Disposal
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Operation ► Unlock the door. Depending on the type of lock (data carrier or PIN code), press the GL7p button in with a valid data carrier or enter a valid PIN code when the door is locked. -
Page 65: Technical Data
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Technical Data TECHNICAL DATA 8.1 Power Supply Power supply: 1 x 3.6 V lithium battery, type AA, capacity 2.4 Ah GANTNER approved battery: - Tadiran SL-860/S - Tadiran TL-4903/S (alternative) Battery lifespan: Up to 10 years* with 10 operations per day and +20 °C... -
Page 66: Control And Display Elements
-20 to +60 °C (-4 to +140 °F) Protection type: IP 42 (when installed) Environment class (VdS 2110) II (conditions in indoor areas) Compliances: CE, FCC, IC Availability: The GL7p is not available in North America (United States, Canada) www.gantner.com HB_GL7p--EN_12... -
Page 67: Dimensions
GL7p - Battery-powered, door-mounted electronic locker lock GL7p Technical Data 8.9 Dimensions 1. LED status indicator 7. Fixing nut 2. Button (a = “unlocked”, b = “locked”) 8. Spacer sleeve 3. Latch 9. Screw for anti-rotation protection 4. Front part 10. - Page 68 GANTNER operates in over 60 countries worldwide. Please visit www.gantner.com Nüziders, Austria Houten, the Netherlands Sydney, Australia info@gantner.com info@gantner.nl info-aus@gantner.com London, United Kingdom Bochum, Germany Los Angeles, USA info-uk@gantner.com info-de@gantner.com info-us@gantner.com Ypern, Belgium Dubai, UAE Ahmedabad, India info@gantner.be info-me@gantner.com info@gantnerticketing.com Current contact information: www.gantner.com/locations...
