Quick Start Guide
SABRE Module
The SABRE Module offers a quick Bluetooth
mobile access upgrade for legacy readers with
a Hirose connector.*

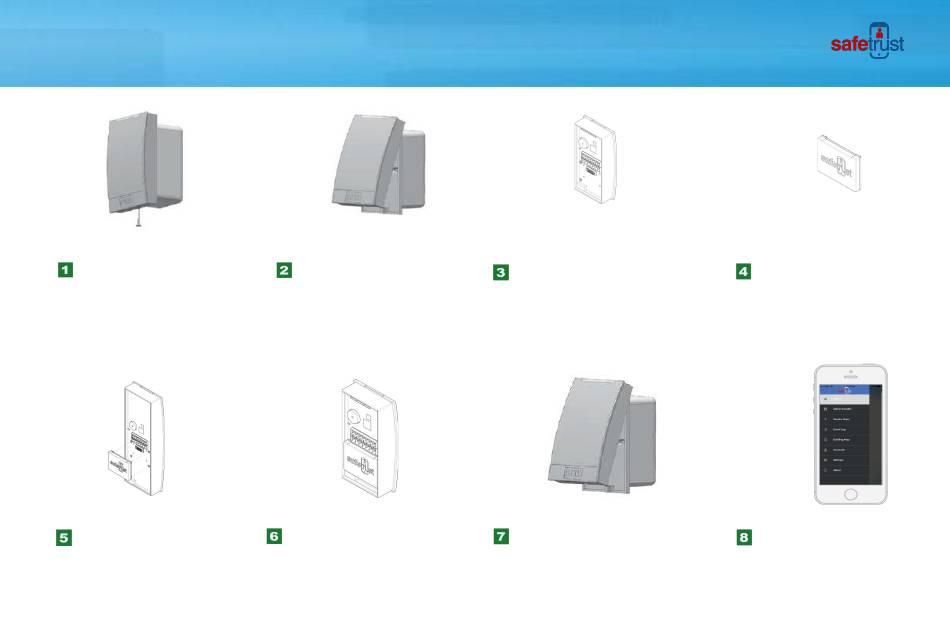

Remove the mounting screw at the bottom of
the reader.
Position the SABRE module (with logo up),
onto the Hirose connector and press firmly
to make a connection.
Once the screw is removed pull the reader out
and up to remove it from the wall mount bracket.
Once a connection is made between the Hiroshi
connectors, the module will start to receive power
and within 5 seconds will be operational.
The Hirose connector is hidden behind black
electrical tape. By peeling the tape the
connector will become accessible.
With the SABRE module connected, re-mount
the reader onto the wall and reinsert the
mounting screw.
The SABRE module has a matching Hirose
connector that will plug into the host reader.
Open the Safetrust Wallet APP and select Admin
Installer tab. Make sure your system admin has
set you up with this role).
www.Safetrust.com
Advertisement
Summary of Contents for SafeTrust SABRE SA210
- Page 1 Position the SABRE module (with logo up), With the SABRE module connected, re-mount Open the Safetrust Wallet APP and select Admin Once a connection is made between the Hiroshi onto the Hirose connector and press firmly connectors, the module will start to receive power the reader onto the wall and reinsert the Installer tab.
- Page 2 With the Admin Installer tab open from the App, from the drop down box. Assign a short “Name” running the Safetrust Wallet application to the successfully saved to the Credential Manager, bring the phone in range of the SABRE Module and and “Description”...
