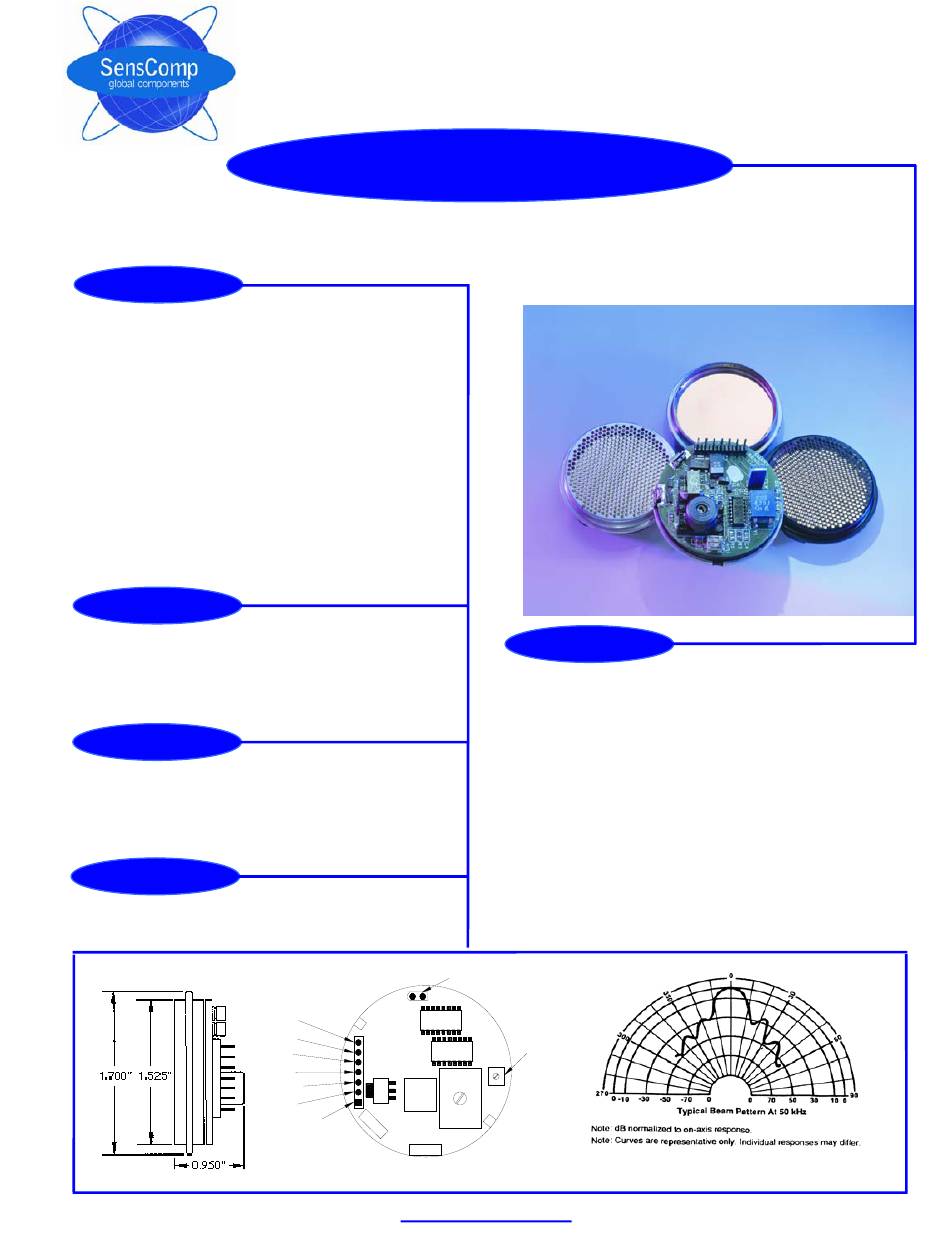

SensComp's totally integrated Series 600 Smart Sensor simplifies product design and packaging.
Features:
Features
50 KHz Electrostatic Transducer
Integrated SMT Drive Electronics
TTL Compatible
Convenient Pin Terminal Connection
Monostable and Astable Modes of Operation
Voltage Regulated
Beam Angle of 15° at -6 dB
Low Ring Characteristics
Ranges from 6" to 35'
Excellent Receive Sensitivity
Available with all Series 600 Transducers
Specifically intended for operation in air at ultrasonic
Frequencies
Part No.
PID# 615088 – Instrument Grade Smart Sensor
PID# 615089 – Environmental Grade Smart Sensor
PID# 615090 – Open Face Smart Sensor
PID# 615095 – Environmental Grade Smart Sensor w/Parylene
Benefits
Self Contained Compact Design
Easy to Interface with Minimum of External Components
Can be Triggered Internally or Externally
Will Operate on a Power Source from 6 to 24 VDC
Applications
Level Measurement, Proximity Detection, Presence Detection,
Robotics, Educational Products
Smart Sensor
For more information, visit our website:
Smart Sensor
BLNK
J1
BINH
INIT
OSC
ECHO
GND
6-24 VDC
www.senscomp.com
Description

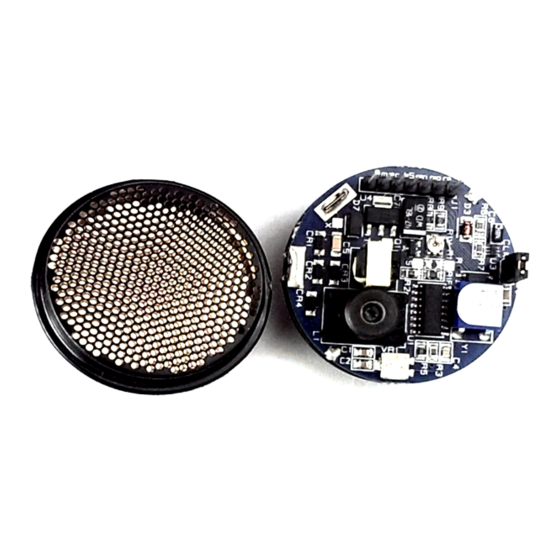

The new SensComp Smart Sensor is based on the ultra-sensitive
Series 600 Electrostatic Transducer line with an enhanced
version of our 6500 ranging module on board. The new voltage
regulated circuitry allows the sensor to operate from a 6 to 24
VDC power source.
The TTL compatible open collector outputs include pull-up
resistors. Configuration of the new oscillator circuit enables the
unit to be externally triggered or continually sense at 5 Hz.
The digitally controlled gain and variable bandwidth amplifier
minimizes noise and side lobe detection in sonar applications.
The typical absolute accuracy is ±1% of the reading over the
entire range.
This new compact integrated design of SensComp's Series 600
Smart Sensor will expedite the product development process
Programmable Jumper
(CLK)
Gain
Adjust
(VR1)
SensComp, Inc.
36704 Commerce Rd.
Livonia, MI 48150
Telephone: (734) 953-4783
Fax: (734) 953-4518
www.senscomp.com
Copyright © 2004 SensComp. Inc. 02/05/09
