Summary of Contents for PCTEL AP-WiFi-1200
- Page 1 OPERATION GUIDE AP-WiFi-1200 Access Point Rugged Dual-Band 2x2 802.11ac Wave 2 WiFi AP-WIFI-1200...
-
Page 2: Table Of Contents
Referenced Documents ........................4 1. Overview ............................4 Features............................5 2.1. Summary ..........................5 2.2. AP-WiFi-1200 WiFi Features ..................6 2.3. AP-WiFi-1200 WiFi Summary ..................6 3. Setup and Configuration ......................7 3.1. Packing List .......................... 7 3.2. Setup ............................8 3.3. - Page 3 Terms and Abbreviations OFDM Orthogonal Frequency-division Multiplexing MU-MIMO Multi-User, Multiple Input, Multiple Output DSSS Direct Sequence Spread Spectrum Complementary Code Keying * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change.
-
Page 4: Referenced Documents

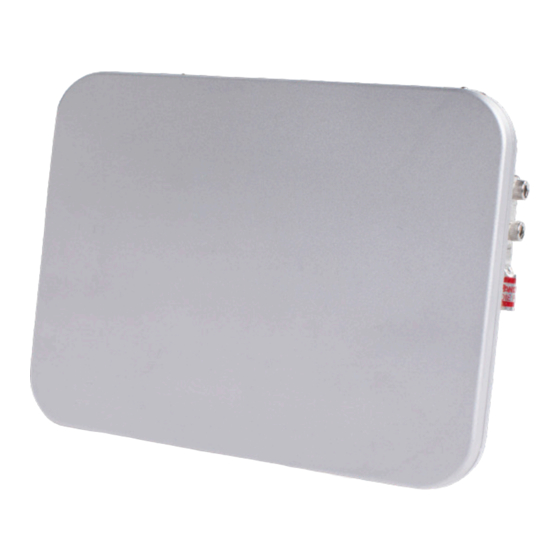

The compact enclosure weighs just over 3.2 pounds (1.45 kg) and is only 5.79" x 7.84" x 2.50". The AP-WiFi-1200 can be deployed in extreme weather environments with an operating temperature range between -40°C and +65°C [+55°C with a full solar loading of 1200 W/m2]. -
Page 5: Features
OPERATION GUIDE 2. Features 2.1. Summary Parameter Specification 2.4 GHz: 802.11b/g/n, 2x2:2 Radios (Dual Band Concurrent) 5 GHz: 802.11a/n/ac Wave 2, 2x2:2 2.4 GHz: 20 MHz, 40 MHz Channel Bandwidth 5 GHz: 20/40/80 MHz 2.4 GHz: 26 dBm Total, 23 dBm per path TX Power 5 GHz: 24 dBm Total, 21 dBm per path 2.4 GHz: 300 Mbps (40 MHz) -
Page 6: Ap-Wifi-1200 Wifi Features
OPERATION GUIDE 2.2. AP-WiFi-1200 WiFi Features • Supports IEEE 802.11a/b/g/n and ac Wave 2 standards • Capable of 2x2, two spatial stream communication concurrently on the 2.4 and 5 GHz bands • Supports 20/40 MHz at 2.4 GHz and 20/40/80 MHz at 5 GHz •... -
Page 7: Setup And Configuration
OPERATION GUIDE 3. Setup and Configuration The PCTEL AP-WiFi-1200 is designed for ease of setup and configuration. Out of the box, only settings that are particular to system integration need to be changed as needed. A Web User Interface is provided for access to all system settings. -
Page 8: Web User Interface
OPERATION GUIDE 3.2. Setup Only a few steps need to be taken to setup the AP-WiFi-1200. For convenience, all the external ports and pushbutton switch are identified on the enclosure. See Section 4 for installation details. Connect (2) Identified 2.4 GHz WiFi Antennas Connect (2) Identified 5 GHz WiFi Antennas Connect the 2.4 GHz Bluetooth antenna... -
Page 9: Radio Configuration
OPERATION GUIDE 3.4. Radio Configuration The PCTEL AP-WiFi-1200 radios can be configured through the Web UI. Be sure the 2.4 GHz radio and the 5 GHz radio are configured as prescribed by the network. From the top bar menu, select Network -> WiFi. -
Page 10: Console Interface
OPERATION GUIDE 3.5. Console Interface The Console Interface on the AP-WiFi-1200 uses a weatherproof USB Type-B mini connector. Operating as a serial port, the following settings needed at the connected computer are listed here. • Baud rate: 115200 • Data: 8 bits •... -
Page 11: Factory Configuration
OPERATION GUIDE If you stop Autoboot, you will see U-Boot displayed on the console. 3.6. Factory Configuration Here is a summary of the Factory Configuration settings. Often these settings are changed to match how and where the Access Point is used. WiFi interfaces are disabled (both 2.4 GHz and 5 GHz radios) Bluetooth radio is disabled. -
Page 12: Figure 2 Access Point Enclosure Top And Bottom Views
Antenna Antenna Pressure Vent Ethernet Port Mode Switch + LED Status Indicator Figure 2. Access Point enclosure Top and Bottom views* * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 13: Figure 3 Access Point Enclosure Front And Rear Views
Bluetooth Bluetooth Antenna Antenna Mounting Holes 2.4 GHz Antenna 2.4 GHz Antenna Figure 3. Access Point enclosure Front and Rear views* * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 14: Antenna Installation
The AP-WiFi-1200 Installation Kit includes Butyl Tape and Joint Compound. Follow package directions to properly seal the antennas and protect them from the outdoor environment. * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 15: Mounting Bracket Installation
Assembled wall mounting option screws [not supplied] Wall mounting option [side view] Wall mounting option [top view] Figure 5. Access Point wall mounting options* * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 16: Pole Mounting
[side view] Pole mounting option Pole mounting option [top view] [small and large pole] Figure 6. Access Point pole mounting options* * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 17: Figure 7 Grounding Lug Attachment Options
[in-line with cables] Building wall 6AWG grounding wire Grounding Lug attachment [opposite cables] Ground rod Figure 7. Grounding Lug attachment options* * This representation of the PCTEL AP-WiFi-1200 enclosure shows the product as currently proposed and is subject to change. -
Page 18: Figure 8 Compliance
RSS-210 RSS-247 Figure 8. Compliance Changes or modifications not expressly approved by PCTEL could void the user's authority to operate the equipment. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the... -
Page 19: Safety Notices
6. Safety Notices This section lists the product safety notices for the AP-WiFi-1200. Please follow all safety notices to ensure proper installation and operation. A. Only trained and qualified personnel should be allowed to install, replace or service this product. -
Page 20: Product Usage
T: +1 630 372 6800 PCTEL, Inc. T: +1 630 372 6800 | pctel.com | NASDAQ: PCTI Specifications subject to change without notice. Bluetooth® is a registered trademark of Bluetooth SIG. ©2021 PCTEL, Inc. All rights reserved. Rev A (March 2021)
