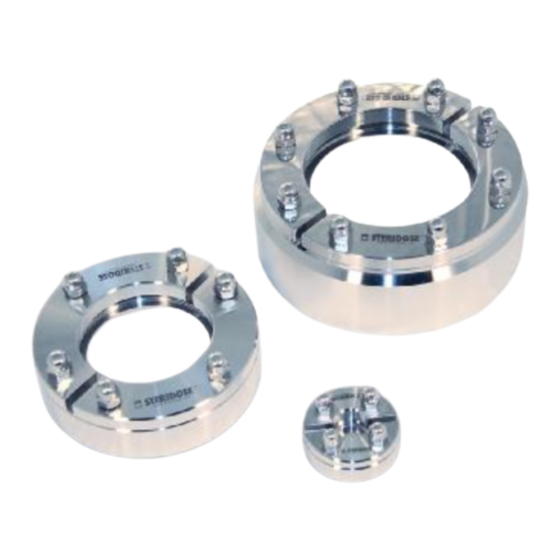

STERIFLANGE
Welding Guide
Welding the flange into position
This welding guide should be read carefully
®
before unpacking the Steriflange
Order No.____________
STERIDOSE SALES
Head Office
Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN
Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90
info@steridose.com · www.steridose.com
Regional Office
5020 World Dairy Drive · Madison, WI 53718 · USA
1
Phone: +1-608 229 5225 · Fax: +1-608 227 9599
info@steridose.com · www.steridose.com
Advertisement
Table of Contents
Summary of Contents for Steridose STERIFLANGE
- Page 1 STERIFLANGE Welding Guide Welding the flange into position This welding guide should be read carefully ® before unpacking the Steriflange Order No.____________ STERIDOSE SALES Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90 info@steridose.com ·...
-
Page 2: Table Of Contents
3.3 DISTANCE FROM OUTER EDGE..................5 ® 4. OPTIMUM ALIGNMENT OF STERIFLANGE .............6 5. MAKING AND PREPARATION OF HOLE IN THE GABLE.......6 6. WELDING (TIG), TACK WELDING THE STERIFLANGE........7 7. FINAL WELDING......................9 8. AFTER WELDING.....................10 STERIDOSE SALES Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 ·... -
Page 3: About The Welding Guide
For other countries than Sweden, please make sure that the relevant standards for that country are complied with. The purpose of this manual is to avoid deformation of the Steriflange due to release of tension forces in the gable. This manual should only be regarded as an aid in the welding work and not override the legal obligations. -
Page 4: General
2. General The Steriflange may be welded into the vessel before it’s welded together. It can also be welded in an already finished vessel. It is vital that all other welding on the lower gable end is completed before making a hole for the flange. -
Page 5: Distance Between Welds
Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90 info@steridose.com · www.steridose.com Regional Office 5020 World Dairy Drive · Madison, WI 53718 · USA Phone: +1-608 229 5225 · Fax: +1-608 227 9599... -
Page 6: Optimum Alignment Of Steriflange
® 4. Optimum Alignment of Steriflange Since the Steriflange shall be welded into a gable. Make sure that it will be welded flush with the inner surface. 5. Making and Preparation of Hole in the Gable 1. Measure the outer diameter of the Steriflange. -
Page 7: Welding (Tig), Tack Welding The Steriflange
No cooling medium, other than air has to be used. 1. Check that stamped charge number on the Steriflange is identical to the number on certificate. Position the flange in the hole so that the inner surface is flush with the inner gable surface. - Page 8 Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90 info@steridose.com · www.steridose.com Regional Office 5020 World Dairy Drive · Madison, WI 53718 · USA Phone: +1-608 229 5225 · Fax: +1-608 227 9599...
-
Page 9: Final Welding
Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90 info@steridose.com · www.steridose.com Regional Office 5020 World Dairy Drive · Madison, WI 53718 · USA Phone: +1-608 229 5225 · Fax: +1-608 227 9599... -
Page 10: After Welding
Head Office Himmelsbodavägen 7 · P.O.Box 120 · SE-147 22 TUMBA · SWEDEN Phone: +46-8 449 99 00 · Fax: +46-8 449 99 90 info@steridose.com · www.steridose.com Regional Office 5020 World Dairy Drive · Madison, WI 53718 · USA Phone: +1-608 229 5225 · Fax: +1-608 227 9599...
