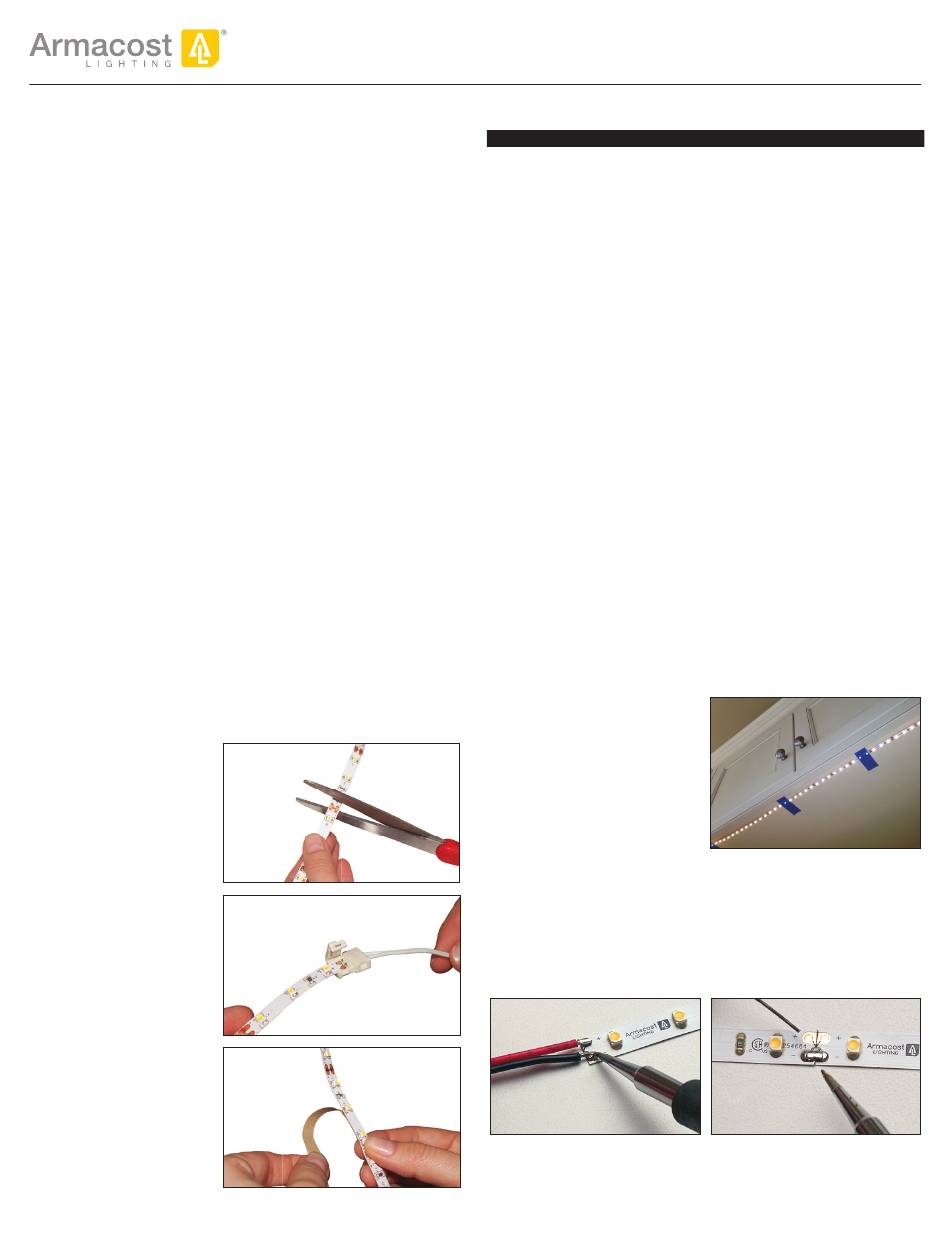

Armacost Lighting RibbonFlex Pro RF3528060 Manual

Welcome to RibbonFlex Pro
Ultra thin and fl exible, RibbonFlex Pro
to install in straight, curved and irregular spaces – offering virtually
limitless design and installation possibilities. Using high performance
solid state lighting technology, light output, color accuracy and LED
brightness are exceptional. Fully dimmable and designed to cast a
seamless glow, RibbonFlex Pro creates warm and relaxing environments
or delivers bright task lighting.
60 White LEDs per meter (18 LEDs per foot), model # RF3528060
Good, all-around solution for accent lighting and lower brightness
task lighting.
Over, under and inside cabinets, and in toe kick areas
■
Indirect lighting for coves and tray ceilings
■
Edge lighting under counters and shelving perimeters
■
Use in displays and bookcases
■
Creative lighting for objects and artwork
■
Please read these guidelines completely
before installing.
RibbonFlex Pro LED tape is a new and exciting type of lighting. It is
important to read these guidelines completely to understand how the
product works, and how it can be confi gured, cut to size, connected, and
installed so you can design your LED lighting layout.
Installing tape lighting is an easy DIY project, however, basic wiring skills
such as stripping, splicing, extending, and connecting wires are required.
This product operates on low voltage 12V DC power. 12V DC power
supplies are sold separately and are available in different wattages. Some
are dimmable, some are not.
Visit armacostlighting.com for additional installation tips, ideas, and latest
product information.
Cut to Size
Offers unlimited lighting
design options for custom
installations.
Connect with Ease
Use LED Snap Connectors
to join strips and add
power wires.
Peel and Stick
Simply remove 3M paper
backing from LED tape
lighting and stick in place.
RibbonFlex Pro LED Accent Lighting
®
White LED Tape Light
LED Tape Lighting
®
white LED lighting is easy
®
60 White LEDs per meter
IMPORTANT
Use only with low voltage 12V DC power source
■
Do not stare directly into the LED lights when illuminated
■
Do not power LED tape while coiled on reel
■
Always observe polarity for 12V connections, positive (+) to positive
■
and negative (–) to negative
Do not install this product in areas that are susceptible to direct
■
exposure to the elements
Use only insulated staples, plastic ties, or wire support clips to secure
■
cords and wires
Route and secure wires so they will not be pinched or damaged
■
For any wire runs inside of walls, use properly certifi ed CL2
■
or better cabling
Do not install Class 2 low voltage wiring in the same runs as AC main
■
power. If AC and low voltage wires cross, keep them at 90-degree angles
All wiring must be in accordance with national and local electrical codes,
low voltage Class 2 circuit. If you are unclear as to how to install and wire
this product, contact a qualifi ed professional.
Planning
RibbonFlex Pro LED lighting is designed for indirect lighting applications.
The light from the LED tape is not to be seen directly by the eye. Every
installation is unique and the illumination effects are personal preference.
Installation location, wall colors, mounting angle, and the light's refl ection
off of walls, surfaces and objects will affect the fi nal lighting appearance.
Installation considerations
Where will you locate your power supply?
■
How will you switch your LED lighting on and off?
■
What is the best layout
■
confi guration for your
installation?
How will you run and conceal
■
the wires to your LED tape
lighting?
Important: Using painter's tape or
masking tape, temporarily place
the LED light strip into your
desired mounting position. Power
on the LEDs to make sure you
are achieving the desired lighting
effect before removing the 3M
paper backing for fi nal installation.
Optional Soldering of RibbonFlex Pro
Soldering is a fast and easy way to join wires and make splice connections.
It is also the surest method for making extra reliable electrical connections.
Wire Lead Connection
To learn how to solder RibbonFlex Pro, visit armacostlighting.com/installation.
Note: Soldering connections is required for marine or RV applications due to vehicle movement
and vibrations.
(18 LEDs per foot)
Model # RF3528060
Temporarily mounting the LED light
strip using painter's tape allows you to
experiment with tape light positioning
before permanent installation.
Splice Connection
1
