TOWELRADS
"

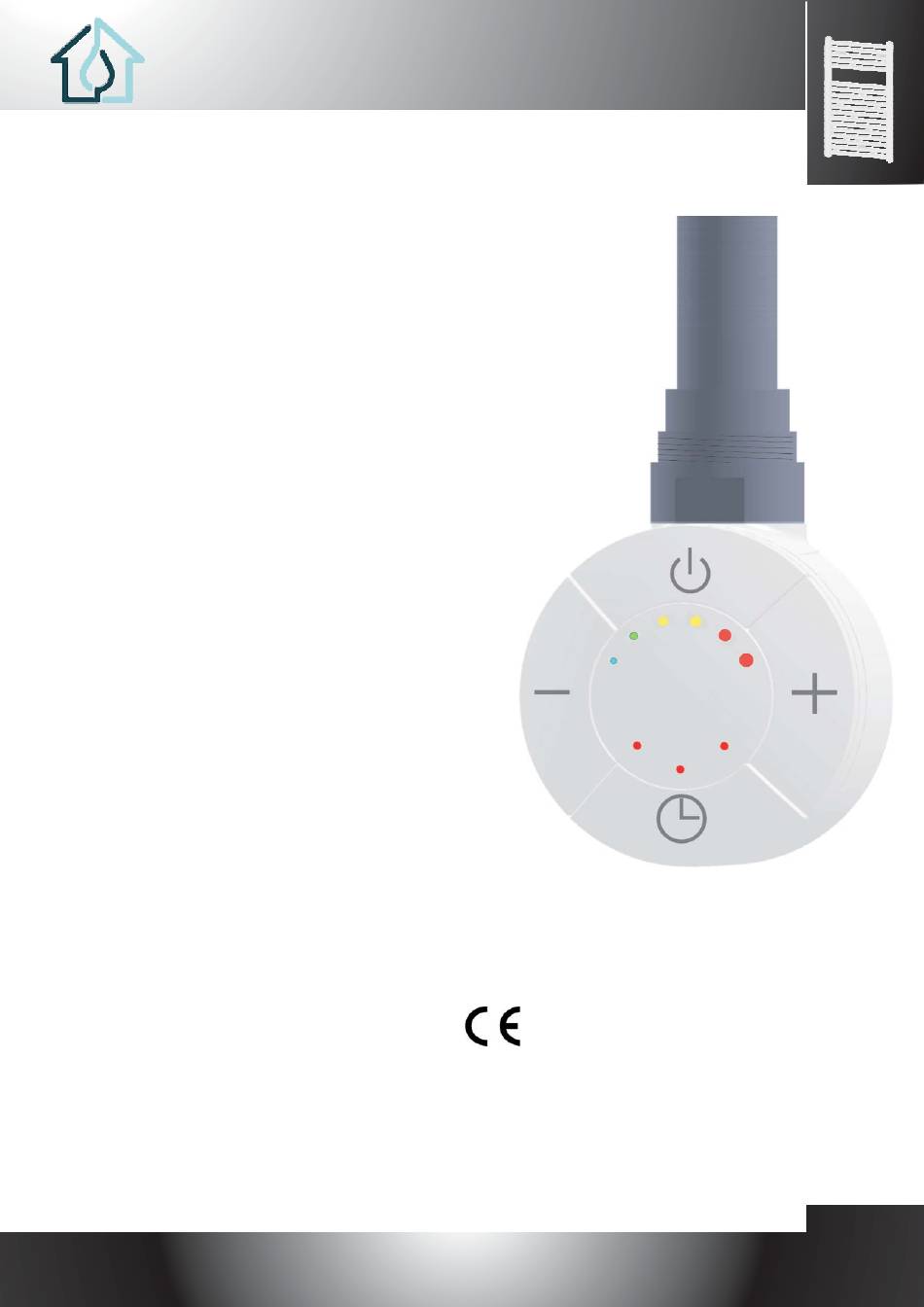

Electronic control for towel radiators
SMART Thermostatic
for the automatic control of electric towel radiators.
using internal sensor, it is capable of keeping the
temperature of the towel radiator to a desired value.
Ten different electric resistances are available in a
range between 100W and 1000W.
Operative modes: Comfort,
Stand-by/Antifreeze, Boost 2h, P1, P2.
•"Comfort" mode:
towel radiators temperature at the level set by the
user.
•"Boost 2h" mode:
activated for a period of 2 hours independently of
the configured temperature. The temperature is
automatically controlled so as not to exceed 65°C.
At the end of the 2 hour period, the device returns to
•"P1" and "P2" mode":
"Boost" mode for 2 hours; after that it returns into
"Comfort" mode for 22 or 10 hours (configurable by
the user P1 or P2) and then it enters again into
"Boost" mode for 2 hours, repeating the same
procedure endlessly.
•"Standby/Antifreeze" mode":
drops below 10°C the device will automatically active
the control system in order the internal liquid freezing
SMART
Thermostatic
SMART
Thermostatic
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
-EN 60335-1:2012+A11:2014 -EN 60335-2-30:2009+A11:2012
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011 -EN 55014-2:1997+A1:2001+A2:2008
Towelrads LTd.
Towelrads LTd.
Unit 4 e 5, Maidenhead Trade Park, Priors Way,
Unit 4 e 5, Maidenhead Trade Park, Priors Way,
SMART Thermostatic
is an electronic thermostat
The thermostat keeps the
the heating element is
The control system enters
if the temperature
is a certified product:
is compliant with the following standards:
Maidenhead, Berkshire SL6 2GQ tel.
Maidenhead, Berkshire SL6 2GQ tel.
"
TOWELRADS
P2
P1
2h
Available colors: - White
- Chrome
-
Rev.04 - August 2015
01628659520 wwww.towelrads.com
01628659520 wwww.towelrads.com
EN
Advertisement
Table of Contents
Summary of Contents for Towelrads SMART Thermostatic
- Page 1 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators SMART Thermostatic is an electronic thermostat for the automatic control of electric towel radiators. using internal sensor, it is capable of keeping the temperature of the towel radiator to a desired value.
- Page 2 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators TECHNICAL CHARACTERISTICS Product Electronic control for electric towel radiators Applications Towel radiators Insulation class Class I, Class 2 IP Level IP44 Temperature setting Digital Selectable temperature range 40°C ÷ 65°C 10°C Antifreeze Operational temperature -10°C ÷...
- Page 3 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators WARNING RISK OF ELECTRIC SHOCK! Disconnect power supply before proceeding with installation. Please read carefully before using the device. • The present device has been designed for exclusive use on a towel radiator.
- Page 4 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators Installation Guide To be used by installer only • Disconnect the device from power supply before proceeding with installation or maintanance. • Protect the device with a 30mA RCD circuit breaker and an isolating switch to disconnect from Insert the heating element in the threaded opening located on the bottom part of the radiator.
- Page 5 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators User manual “Comfort Bar”: Indicates the selected Heating element temperature [On/Stand-by] button and further accessory information 1/2" GAS thread for fastening on the radiator [+] and [-] buttons: For setting the desired...
- Page 6 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators User Gude Press the [On/Standby] button to turn on the device or to enter the “Standby / Antifreeze” mode. NOTE: The device will beep twice for 0.5 secons when put into "Standby/Antifreeze" mode.
- Page 7 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators "P1" mode: to activate this mode press the [Boost/program] button until the led "P1" is lit. In this mode the thermostat activates for 2 hours the "Boost" function; after 2 hours the thermostat returns to the "Comfort"...
- Page 8 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators "Boost 2h" mode: to activate this mode press the [Boost/program] button until the "2h" led is lit. This mode activates the heating element to the maximal power for 2h (for safety reasons the maximal temperature of the towel radiator is limited to 65°C).
- Page 9 TOWELRADS “ SMART Thermostatic ” Electronic control for towel radiators Key-lock function: press simultaneously the buttons for 3 seconds to activate the key-lock function, which prevents the inadvertent use of the keypad, with the exception of the [On/Standby] button. To deactivate the function, repeat the same procedure.
