Summary of Contents for GPX TDU4235B

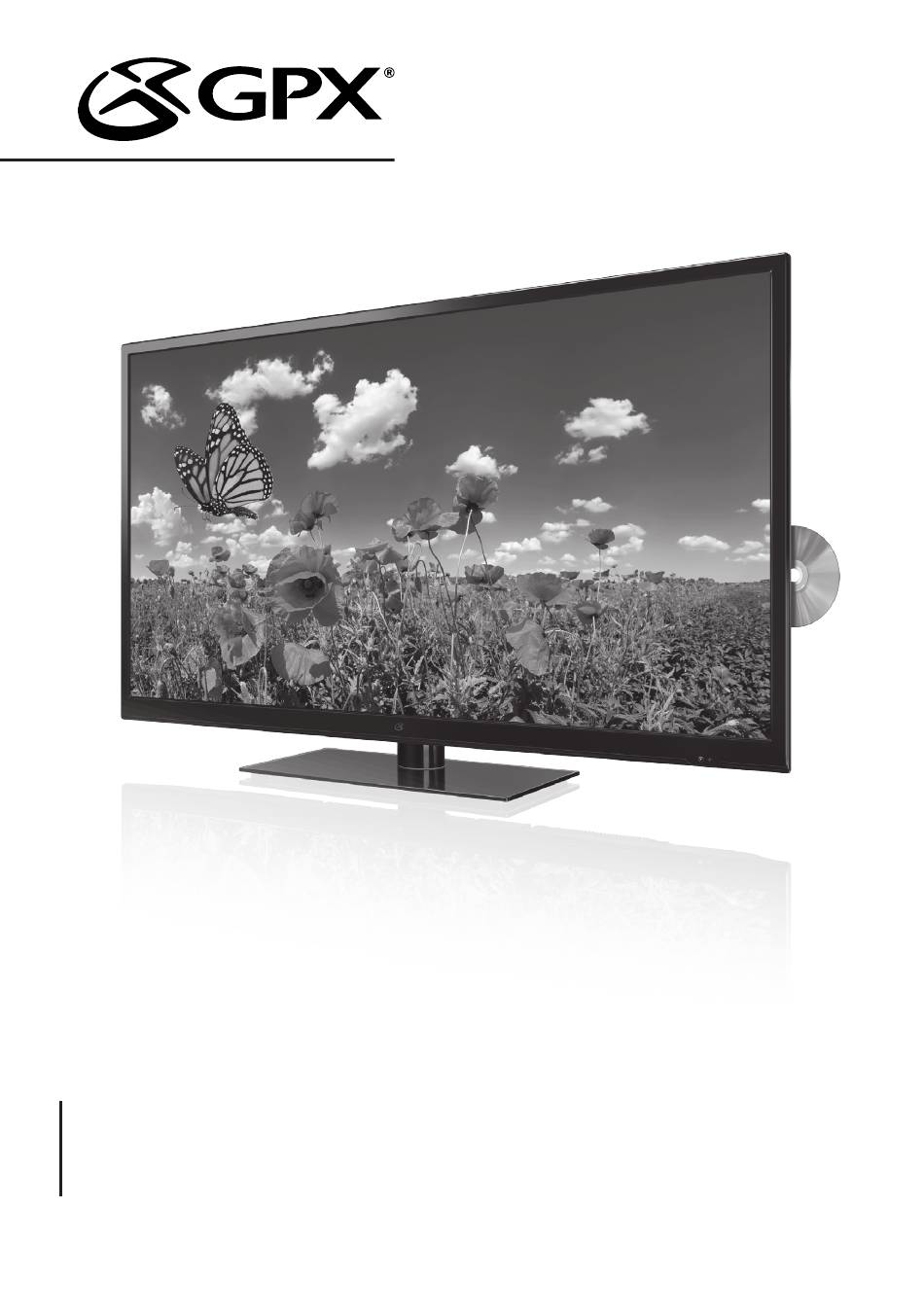

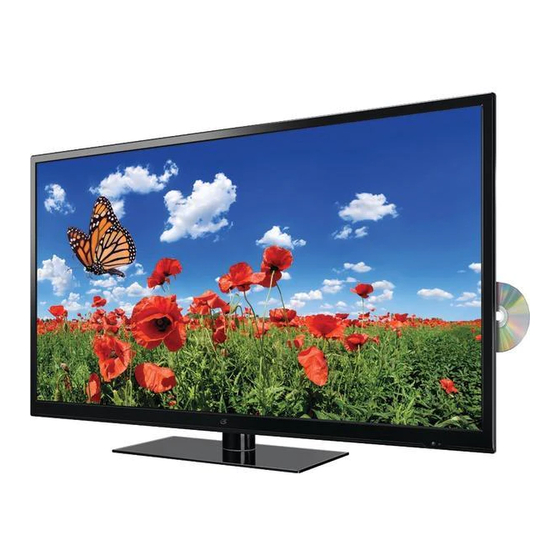

- Page 1 42" DLED Ultra HDTV + DVD User’s Guide for Model No. TDU4235B v1199-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
- Page 2 Safety Instructions & Warnings Important Safety Instructions Warning: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No • Read these Instructions. DO NOT OPEN user-serviceable parts inside. Refer servicing ATTENTION • Keep these Instructions. RISQUE D' ÉLECTROCUTION to qualified service personnel.
- Page 3 Safety Instructions & Warnings Additional Warnings and Precautions disposal or recycling practices in your area. They should never be incinerated since they might explode. • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH AVIS: Les piles Lithium ion, comme toutes les autres piles WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. rechargeables, sont recyclables et doivent être etées avec vos Avis: AFIN DE PRÉVENIR LES CHOCS ÉLÉCTRIQUES, déchets ménagers. Contactez votre municipalité pour obtenir FAITES CORRESPONDRE LA FICHE BLANCHE DE LA des conseils sur les moyens de disposition et de recyclage PRISE À...
-
Page 4: Table Of Contents
Table of Contents Your 42" DLED Ultra HDTV + DVD � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5 Includes Setup �... -
Page 5: Your 42" Dled Ultra Hdtv + Dvd
Your 42" DLED Ultra HDTV + DVD Includes • Remote control and 2 AAA batteries • Removable stand • 3.5mm to RCA audio adapter Setup Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is not a defect on the TV, and does not negatively affect the performance or picture quality. -
Page 6: Orientation
Orientation TV Controls & Inputs CD/DVD Player USB Port Memory Card Port VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz TV Controls HDMI 1 Component HDMI 2 Optical (Right Side) (4k High Speed) Video Input (Standard Speed) Audio Output (Y/Pb/Pr) Stereo 3.5mm HMDI 3 Eject Audio Input... -
Page 7: Remote
Remote Power Mute Press to power the television off or on. Press to mute the volume. Display Freeze Press to view the on-screen display. Press to freeze or unfreeze the current frame in TV mode. DISPLAY ASPECT FREEZE SLEEP Aspect Press to adjust the aspect ratio between Sleep ZOOM, WIDE, CINEMA, and NORMAL. -
Page 8: Connecting Devices To Your
Connecting Devices to Your TV Connecting Cable/TV Antenna You will need: a cable/antenna wire (not included). 1. Connect the Cable/Antenna wire to the input on the television. 2. Press the Source button to switch to TV mode. 3. Press the Setup button to access the setup menu. 4. - Page 9 Connecting Cable/TV Antenna- Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz Connecting HDMI - Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz HDMI Connecting Composite Audio/Video- Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz HDMI VIDEO VIDEO COMPONENT VIDEO INPUT COMPONENT VIDEO INPUT INPUT INPUT...
-
Page 10: Connecting A Computer
Connecting Devices to Your TV Connecting Component (YPbPr) Video/Audio You will need: component video (green, blue, red) and RCA stereo (red, white) cables (not included). 1. Connect the audio output on your media device to the corresponding color coded audio input on the television with stereo RCA cables. - Page 11 Connecting Component (YPbPr) Cables - Rear View VIDEO VIDEO COMPONENT VIDEO INPUT COMPONENT VIDEO INPUT INPUT INPUT 4K@60Hz Connecting a Computer- Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz Connecting Optical Audio - Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz...
-
Page 12: Using The 3.5 Mm Audio Out
Connecting Devices to Your TV Using the 3.5 MM Audio Out Requires a 3.5 mm to RCA audio cable (included) Note: This is not a headphone jack, please do not attempt to use headphones with this port. 1. Connect a 3.5 mm to RCA cable to the Audio Output on the unit and an audio input on an external stereo system. - Page 13 Connecting the 3.5 MM Audio Out - Rear View VIDEO COMPONENT VIDEO INPUT INPUT 4K@60Hz IMPORTANT: The 3.5mm Audio Out sends a fixed audio volume level to any connected audio device. To adjust the volume, you must change it from the connected device. ADJUSTING THE VOLUME OF THE TV WILL HAVE NO EFFECT.
-
Page 14: Dvd & Cd
DVD & CD Playing a DVD or CD Note: This unit is not compatible with MP3 CDs. 1. Insert a DVD or CD into the slot-load disc drive, with the label side facing the rear of the television. Once a DVD or CD is loaded into the television, the TV will automatically switch to DVD mode 2. -
Page 15: Usb & Sd, Mmc, Ms Memory Card
USB & SD, MMC, MS Memory Card Using a USB Thumb Drive 1. Load a USB thumb drive into the USB Port on the side of the television. 2. Press the Source button to switch to USB mode. 3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive. -
Page 16: Settings
Settings Auto Scanning for Channels The Auto Channel Scan must be run before any channels can be viewed on the television. Initial channel scanning process may take up to 15 min. 1. Press the Source button to switch to TV mode. 2. -
Page 17: Mounting To A Wall
Mounting to a Wall 200mm 200mm VIDEO VIDEO COMPONENT VIDEO INPUT COMPONENT VIDEO INPUT INPUT INPUT 4K@60Hz Specifications • 200mm x 200mm spacing (ht. x wth.) • M6 bolt pattern and thread pitch A 15 to 25mm long bolt is recommended, depending on the thickness of the wall bracket selected. We strongly recommend having this television mounted professionally. -
Page 18: Company Information
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com Green Initiative Our Environmental Commitment to "Protect for Today and Sustain for Tomorrow".
