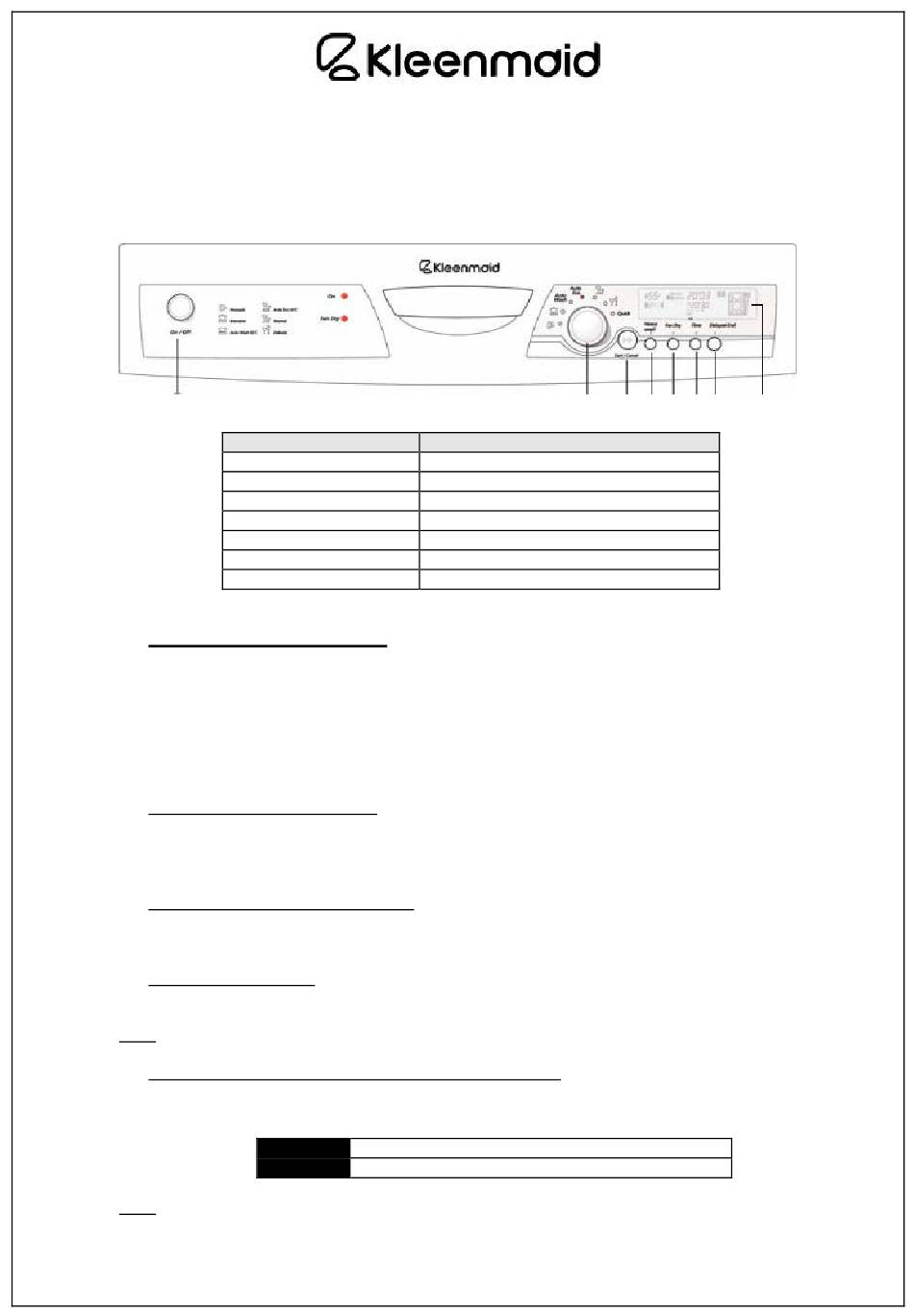

Kleenmaid DW21 Quick Start Manual

TEST PROGRAM FOR DISHWASHER MODEL

⇒ IMPORTANT INFORMATION

•
The change from one step to the next is performed by pressing the START button. It is
therefore possible to skip one or more steps (except those where level control is
necessary).
•
It is possible to disconnect the appliance during test, in order to check the faulty circuit,
and then to connect it again and continue the test.
•
To cancel the test, the START button must be kept pressed down for more than 2
seconds.
♦

ACCESS TO TEST PROGRAM

Press START 5 times within 5 seconds.
All LED's around program selector button will light alternately, and all segments of display will
be lit.
♦

TO CHECK PROGRAM SELECTOR

Press START button, the left 2 digits on display indicate '01'. Turn the program selector and
check that only 1 LED lights up at a time.
♦

CHECK OF BUTTONS

Pressing the buttons makes the related symbol on the display come on or go off. Rotate the
DELAYED END button for checking the related symbol.
Note. Pressing the START button causes the test program to go to the next step.
♦

TO CHECK THERMISTOR (NTC) AND TURBIDIMETER

Press START button, the left 2 digits will indicate '02'. After 3 seconds, if a fault exists either
fault code will be displayed in the right 3 digits.
'd04'
'd06'
Note. If no faults, the NORMAL and INTENSIVE LED's will light.
DW21
CODES CONTROLS
01 Filling
02 Draining
03 Heating
04 NTC (Thermistor)
05 Flow-meter
06 Turbidimeter
07 Leakage
Thermistor fault (valve out of range)
Turbidimeter fault (valve out of range)
1
