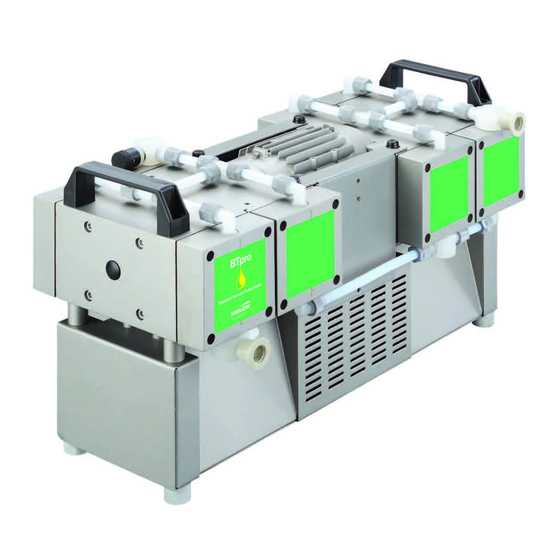

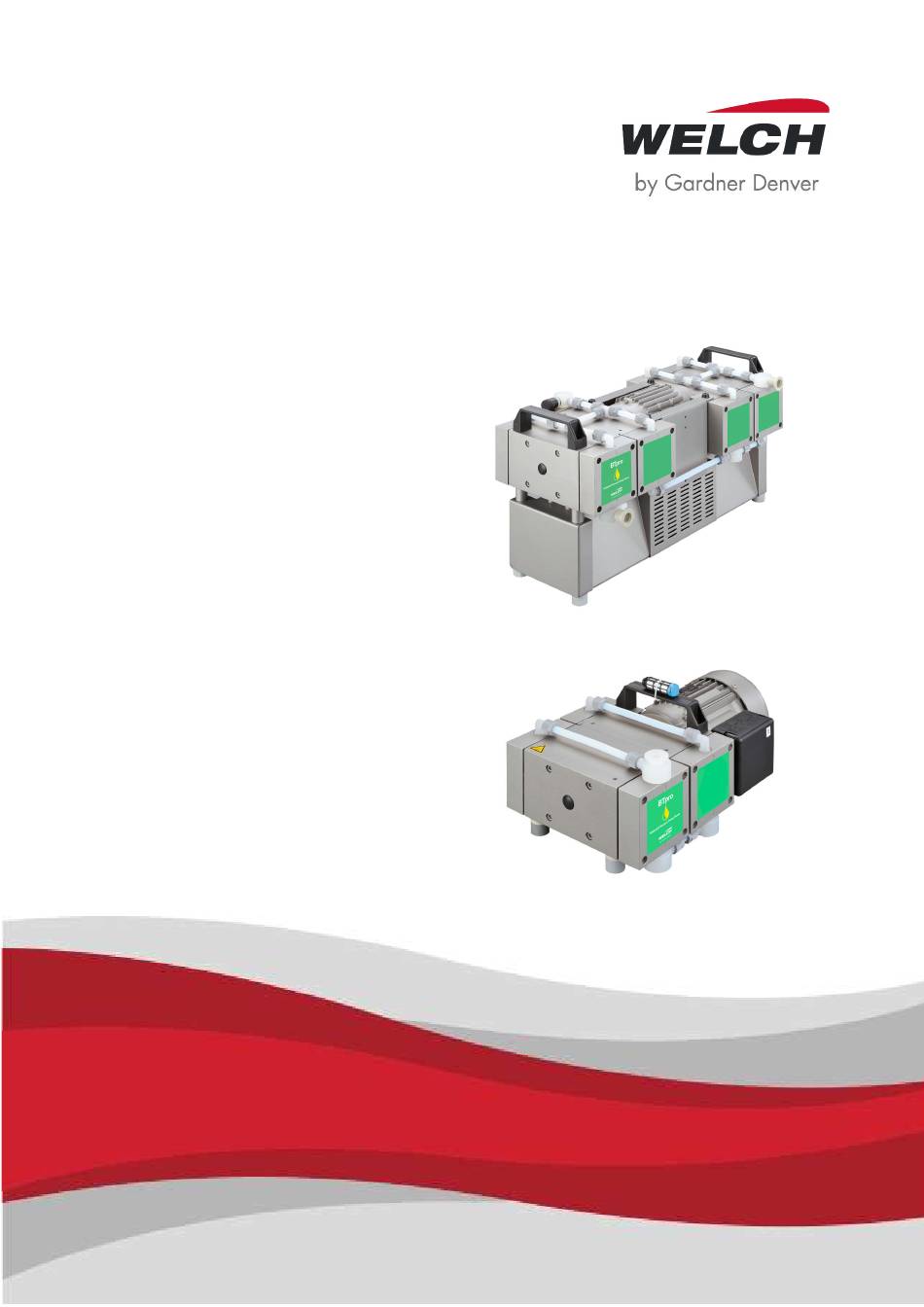

- Page 1 Operation Manual BTpro Botanical Diaphragm Pumps 8-Headed BTpro170 ► Models: 7040, 7042 4-Headed BTpro100 ► Models: 7030, 7032 BTpro170 - BTpro100 UL 2019-11-01...
- Page 2 Gardner Denver Thomas, Inc. Germany 1601 Feehanville Drive Suite 600 T +49 3677 604 0 Mount Prospect, IL 60056 USA F +49 3677 604 131 T +1 847 676-8800 F +1 847 677-8606 welch.emea@gardnerdenver.com welch.na@gardnerdenver.com www.welchvacuum.com www.welchvacuum.com Customer Support +49 3677 604 0...
- Page 3 Diaphragm pumps BTpro170, BTpro100 MAINTENANCE AND INSTALLATION INSTRUCTIONS Read and understand the information and instructions included with this product before using. This information is for your safety and to prevent damage to this product. Failure to observe these safety precautions could result in severe bodily injury, including death in extreme cases.
- Page 4 The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. This adapter shown in Fig. B and Fig. C is not acceptable in Canada.
- Page 5 Tools required: Tool kit: Order no. 402106-US, consists of: • Order no. 826801 Pin type face wrench, adjustable, size 3, • Order no. 826801-6 Hex wrench, size 4mm, • Order no. 826801-5 Open spanner, size 17mm. Disassembly 1. Open the screw clamps (9) of the hoses (10) on the pump body with the size 17 open spanner. 2.
-
Page 6: Service Kits
Service kits Designation Order no. Service kit for model: BTpro170 402043-US BTpro100 402042-01-US The Service kit consists of: Kit - Order no. 402042-01-US Kit - Order no. 402043-US for Model BTpro170 for Model BTpro100 Designation Piece Order no. Piece Order no. -
Page 7: Device Data
Technical Data - BTpro170 Dimensions Fig. 3 Dimensions Device Data Diaphragm pump – BTpro170 Parameter Unit (two-stage) Free Air Displacement @ 60 Hz L / min mbar Ultimate pressure Max. inlet pressure Max. outlet pressure standard Small flange DN 16 KF... -
Page 8: Spare Parts Overview
Spare Parts Overview Spare parts view - Basic structure – BTpro170 Fig. 4 Exploded view - Basic structure (Diaphragm pumps 8-headed) - Page 9 Spare Parts Overview Spare parts list - Basic structure – BTpro170 BTpro170 230 V 115 V Item Order no. Order no. Designation Piece 7042-01 7040-01 Order no. Order no. Basic pump complete - *) 410404-07 (consisting of position: 1 – 9)
- Page 10 Spare Parts Overview Spare parts view - Vacuum connection BTpro170 Spare parts list - Vacuum connection BTpro170 7042-01 7040-01 Item 230 V 115 V Designation Piece Order no. Order no. Manifold 2 400903 400903 Manifold 3 400904 400904 Manifold 4...
-
Page 11: Technical Data
Technical Data Technical Data - BTpro100 Dimensions Fig. 5 Dimensions (Model BTpro100) Device Data Diaphragm pump – BTpro100 Parameter Unit (two-stage) Free Air Displacement @ 60 Hz L / min mbar Ultimate pressure Max. inlet pressure Max. outlet pressure standard Small flange DN 16 KF IN - Intake option... - Page 12 Spare Parts Overview Spare parts view - Vacuum connection BTpro100 Fig. 6 Exploded view (BTpro100)
- Page 13 Spare Parts Overview Spare parts list - Diaphragm pump - BTpro100 7032-01 7030-01 Item 230 V 115 V Designation Piece Order no. Order no. - *) Basic pump complete 410403 410403-01 (consisting of position: 1 – 9) - Pump casing 1 410430-01 410430-01 - Pump casing 2...
-
Page 14: Warranty
The liability of Welch under this warranty is limited to servicing, adjusting, repairing or replacing any unit or component part which in the judgment of Welch-Ilmvac has not been misused, abused or altered in any way causing impaired performance or rendering it inoperative.
