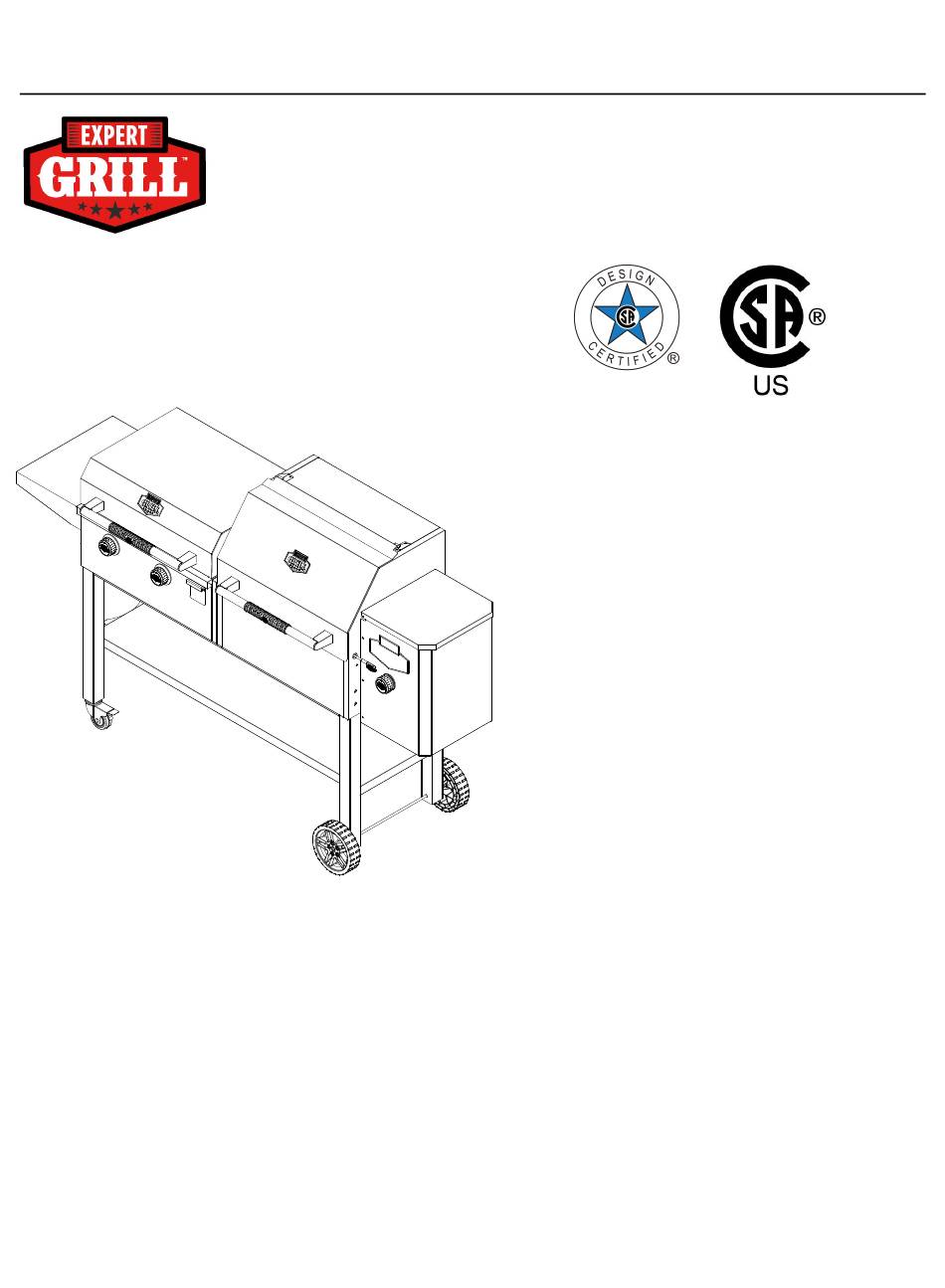

Expert Grill Concord-Gas Griddle
Read this Owner's manual carefully and be sure your
gas grill is properly assembled, installed and
maintained. Failure to follow these instructions could
result in serious injury and/or property damage.
For Outdoor Use Only
Owner's Manual
Model: XG1136224169004
1
Description:
Important: Keep this Owner's Manual for
convenient reference and for part replacement.
If you have any questions or problems, you can
contact our customer service at 855-256-2160 or
expertgrill@grillservices.net from 8 AM – 4:30
PM Eastern Time, Monday to Friday.
Please make sure the cylinder valve connection
device shall properly and safely mate with the
connection device attached to the inlet of the
pressure regulator.
• Parts
• Assembly
• Safety Rules
• Use and Care
• Troubleshooting
Advertisement
Table of Contents
Summary of Contents for EXPERT GRILL Concord
- Page 1 Owner's Manual Model: XG1136224169004 Expert Grill Concord-Gas Griddle • Parts Description: • Assembly • Safety Rules • Use and Care • Troubleshooting Important: Keep this Owner’s Manual for Read this Owner’s manual carefully and be sure your convenient reference and for part replacement.
-
Page 2: Safety Precautions
Safety Precautions READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE SAVE THESE INSTRUCTIONS WARNING DANGER Do not store or use gasoline or If you smell gas: other flammable liquids or Shut off gas to the appliance. vapors in the vicinity of this or Extinguish any open flame. - Page 3 Safety Precautions • Let your LP gas cylinders be filled by reputable propane gas distributors and visually inspected and recertified each time you fill. Provided with a listed overfilling prevention 1) do not store a spare LP gas cylinder under or device.
-
Page 4: Burner Flame Check
WARNING Burner Flame Check A strong gas smell, or the hissing sound of gas indicates a serious problem with your gas grill or the LP gas cylinder. Failure to immediately follow the steps listed below could result in a fire or explosion that could cause serious bodily injury, death, or property damage. -
Page 5: Table Of Contents
Table of Contents Safety Precautions ----------------------------------2-4 Burner Flame Check---------------------------------- 4 Expert Grill Concord Model Description---------- 6 Hardware ------------------------------------------------ 6 Tools Required for Assembly------------------------ 6 Parts Diagram------------------------------------------- 7 Parts List----------------------------------------------- 8-9 Assembly Steps -----------------------------------10-19 Connecting LP Gas cylinder to LP Grill ----- 20-21... -
Page 6: Expert Grill Concord Model Description
Expert Grill Concord Model Description The rated power of each main grill is 11000BTU; Grill burners are not installed with cross-illumination channels between each adjacent burner; All burners are operated by separate plug-type gas valves; All burner controls are installed in the control panel of the appliance. The control valve is operated by a coated plastic control knob. -
Page 7: Parts Diagram
Parts Diagram... -
Page 8: Parts List
Parts List... - Page 9 Parts List...
-
Page 10: Assembly Steps
Assembly Steps Parts Required: • Left Front Leg (Part #10) x1 • Left Rear Leg (Part #9) x1 • Locking Caster (Part #11) x2 Installation: • Insert Locking Caster (Part #11) stem into bottom of Left Front Leg (Part #10). Press into hole until click is felt. - Page 11 Hardware Required: • (Hardware B) x8 • (Hardware C) x4 Installation: • Lock Left Front Leg (Part #10) and Left Rear Leg (Part #9). • Use 8 screws (Hardware B) and 4 washers (Hardware C). Note: The washers concave side down when install.
- Page 12 Hardware Required: • (Hardware B) x4 • (Hardware C) x4 Installation: • Lock Right Rear Leg (Part #16) and Right Front Leg (Part #15). • Use 4 screws (Hardware B) and 4 washers (Hardware C). Note: The washers concave side down when install.
- Page 13 Parts / Hardware Required: • (Hardware A) x1 • Wheel Axle (Part #14) x1 • Wheel (Part #13) x2 Installation: • Upright grill with help from an additional person. • Insert Wheel Axle (Part #14) through Wheel (Part #13) and Leg (Part #15), Leg (Part #16).
- Page 14 Parts / Hardware Required: • (Hardware D) x4 • Hood Handle (Part #3) x2 Installation: • Open the Hood • Mount Hood Handle (Part #3). • Use 4 screws (Hardware D). Parts / Hardware Required: • (Hardware B) x4 • Connecting Board of Gas Cylinder Hook (Part #7) x1 Installation: •...
- Page 15 Parts / Hardware Required: • (Hardware B) x2 • Gas Cylinder Hook (Part #6) x1 Installation: • Mount Gas Cylinder Hook (Part #6). • Use 2 screws (Hardware B). Parts / Hardware Required: • (Hardware B) x2 • Baffle of Cylinder and Strap (Part #5) x1 Installation: •...
- Page 16 Parts / Hardware Required: • (Hardware B) x4 • Side Shelf (Part #2) x1 Installation: • Pre-thread in the 2 screws (Hardware B) with 0.2 inch of thread exposed. • Hang Side Shelf (Part #2) on 2 screws (Hardware B).Tighten preinstalled screws.
- Page 17 Parts Required: • Ash Clean-out Cover (Part #8) x1 Installation: • There are two ears on the back side of Ash Clean-out Cover (Part #8). • Put this cover into the hole, with 2 ears at orientation shown, then turn 90 degree as shown. Parts Required: •...
- Page 18 Parts Required: • Grease Drain Pan (Part #19) x1 Installation: • Mount Grease Drain Pan (Part #19) on the firebox. The tab should be placed as shown. Parts Required: • Searing Station Pull Handle (Part #22) x1 Installation: • Insert Searing Station Pull Handle (Part #22) through grommet on side of firebox assembly.
- Page 19 Parts / Hardware Required: • Power Cord Bracket (Part #24) • (Hardware E) x2 Installation: • Insert Power Cord Bracket (Part #24) through slots in backside of Hopper Assembly •Insert screw (Hardware E) through hole and tighten. Parts Required: • Cooking Griddle (Part #4) x1 •...
-
Page 20: Connecting Lp Gas Cylinder To Lp Grill
Connecting LP Gas cylinder to LP Grill Regulator Connection 1. Please hang a 20lb LP gas cylinder on the hook of Figure 1 the gas cylinder on the right side of the oven, and fasten it with the gas cylinder strap (Fig.2). 2. -
Page 21: Grill Lighting Instructions
Checking for LP gas leaks Grill Lighting Instruction Check the hose before using the outdoor cooking gas appliance. If there is a significant excessive Grill Lighting Instructions for Main Burners wear, or if the hose is cut, it must be replaced before 1. - Page 22 If Grill Still Fails To Light WARNING 1. Check gas supply and connections for leaks. Never lean over the grill cooking area while Check that all wire connections are secure. lighting your gas grill. Keep your face and body a safe distance (at least 18 inches) 2.
-
Page 23: Cooking Instruction
HIGH Cleaning and Seasoning setting for 3 to 5 minutes. FIRST TIME: Expert Grill Griddle are pre- Prepare before cooking seasoned with cooking oil to prevent rust and Before cooking food, evenly coat the surface of damage during shipping. -
Page 24: Cleaning And Maintenance
Cleaning and Maintenance Cleaning Exterior Stainless Steel Surfaces • Weathering and extreme heat can cause exterior stainless steel surfaces to turn tan in color. Machine Please do the following before use every year oils used in manufacturing process of stainless steel 1) keeping outdoor cooking gas appliance area clear can also cause this tanning color. -
Page 25: Troubleshooting
Regardless of which burner cleaning procedure you 3. Inspect each burner for damage (cracks or holes) use, we recommend you also complete the following and if such damage is found, order and install a new steps to help prolong burner life. burner. -
Page 26: Notes On Electrical Appliances
Notes on electrical appliances When installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part I, CSA C22.1. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. a) To protect against electric shock, do not immerse cord or plugs in water or other liquid. -
Page 27: Customer Service
Customer Service If you have any questions or if you need replacement parts, please contact our customer service： 855-256-2160 expertgrill@grillservices.net We're pleased to help you with any question concerning replacement parts or your warranty. Our customer service staff can be reached 8 AM – 4:30 PM Eastern Time, Monday to Friday.
