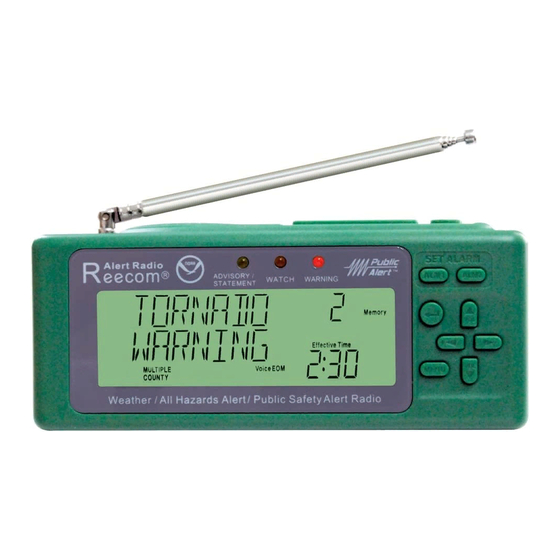

Reecom Electronics R-200 User Manual

Reecom Electronics R-200 User Manual

Weather / all hazards alert radio s.a.m.e (specific area message encoding) technology

Advertisement

Please read before using the Alert Radio
Weather / All Hazards Alert Radio
S.A.M.E (Specific Area Message Encoding) Technology
http://www.reecominc.com
Model: R-200
User's Manual
Reecom Electronics Inc.
FCC Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
In accordance with FCC requirements, changes or
modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to
operate this product.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
1. Reorient or relocate the receiving antenna;
2. Increase the separation between the equipment and receiver;
3. Connect the equipment into an outlet on a circuit different
from that to which the receiver is needed;
4. Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the condition that this device does not
cause harmful interference.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Reecom Electronics R-200

  • Page 1 FCC Information This device complies with Part 15 of the FCC Rules. Model: R-200 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, User's Manual including interference that may cause undesired operation.
  • Page 2: Table Of Contents

    Table Of Contents Section 2: Setting Up the Radio Features ------------------------------------------------- 2.1 Setting Date / Time -------------------------------- 2.2 Setting Channel / County -------------------------- Getting Started ----------------------------------------- 2.3 Setting Alert Mode --------------------------------- Installing the Back-Up Batteries ------------------- 2.4 Setting Siren Volume ------------------------------ Powering up the Radio ------------------------------ 2.5 Setting Voice Volume ------------------------------ Setting Time / Date ---------------------------------...
  • Page 3: Features

    Getting Started Features: For better reception, the radio should be placed nearing a S.A.M.E (Specific Area Message Encoding) Alert Technology window facing to the direction of the NWS (National Weather - Multi-Channel (WX) Watch in Standby Mode Service) transmitter. The radio is not weather resistant, care - LED Indicators For Warning, Watch or Advisory / Statement must be taken.
  • Page 4: Section 1 Operation

    Section 1 Operation 1.4 Review Stored County Codes (in Standby Mode) - Press key to view the stored county code / SAME#. In the web site below, on-line manual is available for Note manual update or error correction, if any. - Press key to view other stored county codes, if any.
  • Page 5: Nap Timer

    1.9 Nap Timer (in Standby Mode) In the second line display: indicates clock alarm Info - Press and hold SNOOZE key for 2 seconds to enter Nap mode. has been set for the week day above. - Press key to set nap time, 1 minute up to 2 hours. As all set, press key to exit and activate the alarm clock.
  • Page 6: Receiving Alert Message

    Event Message Table 1 (events with defeat siren option) 1.13 Receiving Alert Message Upon receiving alert, the radio will generate siren (if events Event Message on Display Audible Response unblocked) with flashing LED, display the event message and REQUIRED WEEKLY TEST Beep (Initially Disabled) , unlock keypad if locked previously.
  • Page 7: Event Message Table 1

    Event Message Table 1 (continue) Event Message Table 2 (continue) Event Message on Display Audible Response Audible Response Alert Message on Display SPECIAL MARINE WARNING Warning Siren IMMEDIATE EVACUATION Warning Siren SPECIAL WEATHER STATEMENT Advisory Siren FOOD CONTAMINATION WARNING Warning Siren SEVERE WEATHER STATEMENT Advisory Siren HAZARDOUS MATERIALS WARNING...
  • Page 8: Section 2 Setting Up The Radio

    Section 2 Setting Up the Radio Variety features and functions are available for use Info and configured in Program Mode with Menu Pages listed below: Menu Menu Description Description Page Page SET DATE TIME MULTI-CH WATCH CHANNEL COUNTY ALARM SOCKET ALERT MODE SIREN TEST SIREN VOLUME...
  • Page 9: Setting Channel / County

    2.2 Setting Channel / County (Menu Page P2) 2.2.2 ADD / Edit / Delete County 1. Press key to select county option. Before setting Channel / County, please call NWS toll free No.: or visit NWS web site: 1-888-NWS-SAME (1-888-697-7263) Three county options are available: https://www.weather.gov/nwr/counties to obtain: 1.
  • Page 10: Setting Alert Mode

    2.3 Setting Alert Mode (Menu Page P3) 2.4 Setting Siren Volume (Menu Page P4) Alert Option Table The siren volume can be set to your desired loudness. Info Siren mute option is also available for the events in Alert Responses: Alert Option: Event Message Table 1.
  • Page 11: Setting Event Blocking

    2.6 Setting Event Blocking (Menu Page P6) 2.7 Setting Multi-Channel Watch (Menu Page P7) The event messages in Event Message Table 1can be The radio can be set to watch up to 7 channels in Standby Info set to block (defeat siren) or unblock while the event Info Mode.
  • Page 12: Setting Alarm Out Socket

    2.8 Setting ALARM OUT Socket (Menu Page P8) 2.10 Setting LCD Back Light (Menu Page P10) The ALARM OUT socket is a 3.5mm (1/8inch) phone 1. Long press MENU key for 2 seconds to enter program mode. Info jack with center positive polarity, compatible with home 2.
  • Page 13: Trouble Shooting

    Specification: Trouble Shooting: Power Supply: 10 - 14 Volt DC (centre positive DC Jack) Problem Back-up Battery: 4 'AA' Batteries (6 Volt) Possible Cause / Suggestion Operating Temperature: -10 C (14 F) ~ +50 C (122 F) AC adapter is loosely connected to the wall outlet or the adapter DC With fresh alkaline batteries (Duracell or Energizer brand), No Sound/Power...
  • Page 14 Limited One-Year Warranty THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED Subject to the conditions of this Limited Warranty, Reecom WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING Electronics, Inc. (Reecom) warrants this Product to be free WITHOUT LIMITATION THE IMPLIED WARRANTIES OF from defects in material and workmanship at the time of its MERCHANTABILITY OR FITNESS FOR A PARTICULAR...
