Foscam S41/SPC User Manual

Spotlight camera
Hide thumbs Also See for S41/SPC:
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manual
User
Manual

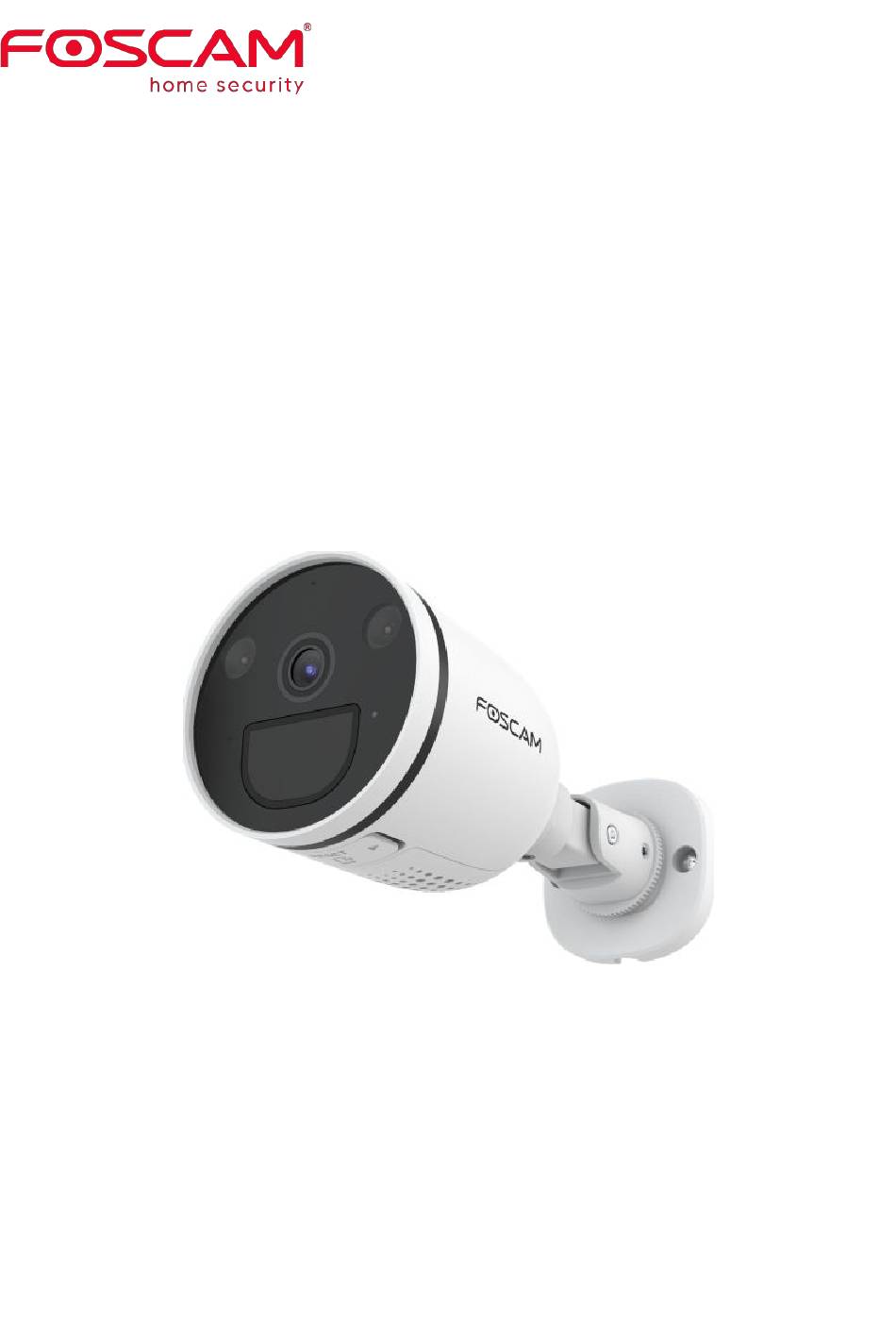

Spotlight Camera
Model: S41/SPC
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S41/SPC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Foscam S41/SPC

Summary of Contents for Foscam S41/SPC

  • Page 1 User Manual User Manual Spotlight Camera Model: S41/SPC V1.0...

  • Page 2: Table Of Contents

    1.2 Read before Use..............................2 1.3 Packing Contents..............................3 1.4 Physical Description.............................. 3 1.5 SD Card Management............................4 1.6 Add Device: Connection via the Foscam App....................5 1.7 Installation................................8 2 Access the IP Camera in Foscam App........................10 2.1 Foscam APP Surveillance Window........................10 2.

  • Page 3: Security Warning

    Security Warning  Please change the password of your spotcam regularly, using a combination of numbers, letters and special characters.  We recommend that you regularly update your spotcam to the latest available software and firmware versions to help ensure the best experience for your Spotlight Camera.

  • Page 4: Overview

    1 Overview Welcome to use our product, Spotlight Camera. Foscam Spotlight Camera is an integrated IP Camera with a color CMOS sensor enabling viewing in High Definition resolution.It combines a high quality digital video camera, with a powerful free Foscam Video Management Software，to bring clear video to your desktop from anywhere on your network or over the APP.

  • Page 5: Packing Contents

    Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Setup Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended. 1.3 Packing Contents ●...

  • Page 6: Sd Card Management

    NOTE: There are up to two labels located at the bottom of the camera, this is an important feature of original Foscam cameras. If your camera does not have labels, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

  • Page 7: Add Device: Connection Via The Foscam App

    1.6 Add Device: Connection via the Foscam App Scan the QR code below to download and install the Foscam APP. To ensure a smoother video experience on your smart phone, it is recommended that your smart phone meet the following specifications: iOS: version 11 or higher.
  • Page 8 2. Make sure that your smart phone is connected to your WiFi router. 3. Open the foscam APP and please sign up for a Foscam account, or sign in if you have one already. 4. After logging into Foscam APP, select “Tap to add a camera” or "+" icon on the upper right corner, then...
  • Page 9 5. . In “Add Device”, if you hear "Hello Foscam", select the checkbox and tap ”Next”, continue to confirm that the device is in the blue flashing state and tap ”Next”. In “WiFi connection”, enter your WiFi's password and tap "Confirm".

  • Page 10: Installation

    Note: If the process of adding a camera fails, please reset your camera and try adding again according to the above method. 8. Tapping on the play button within the video box will jump to the “ Camera Login” setting interface. For your security, please set a new username and password for your camera before viewing live video.
  • Page 11 Please Note: Ensure that rain or water will not reach the connector ports at the end of the pig tail wiring. These connectors are not weather-resistant.

  • Page 12: Access The Ip Camera In Foscam App

    2.1 Foscam APP Surveillance Window Please refer to the section 1.6 if you install the camera for the first time. You can start to learn about software operation after finish quick installation.When you launch the Foscam App, the devices page displays. Split Screen...

  • Page 13: Watch Live

    Share: You can share the camera with your family or other users to watch, tap Live > Camera Settings > Share Camera > Family or Invite. Cloud Service: Foscam Clound can save every alarm detection videos in ht cloud, and you can review every event anywhere, any time. More: Click the button to enter the more options page of the camera, Album, Alarm Settings, Playback, Notification, Settings, Siren and Spotlight.
  • Page 14 Spotcam Back Camera Setting IR LED Schedule Mirror Wired connection/ Wireless connection Resolution Bit Rate Speaker / Mute the audio Full screen Video Snapsho More Function Two-way audio Date Timeline Back: To stop viewing and listening to the live feed, tap the Back. Resolution: There are three types to identify different streams you have set.
  • Page 15 Date：Show date, Display the date, you can select the date through “<” or “>”button. Timeline: If you have purchased cloud service, you can click the timeline to watch the storage video at the corresponding time on the cloud. Camera Setting: Click this button to set more. IR LED Schedule: On this page, you can enable/disable the IR LED, and set the IR auto switch or you can schedule it.
  • Page 16 1 Enable Activity Detection button 2 Click Alarm when a movement is detected or Alarm only when a human is detected. Alarm when a movement is detected: Alarm when a movement activity is detected. Alarm only when a human is detected: Alarm only when a human is detected. 3 Sensitivity---- It supports three modes: Low, Middle and High.
  • Page 17 NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime. Siren Linkage: When an alarm is triggered, the camera makes a sound.You can turn it on as needed. Spotlight Linkage: When an alarm is triggered, and at night, the spotlight lights up, you can turn it on as needed.

  • Page 18: Camera Setting

    2.3 Camera Setting the button, goes to Device Settings to make advanced camera settings. 2.3.1 My Plan Here you can choose a 7-day free cloud service experience, and you can also purchase related cloud packages according to your needs. After successful activation, you can enjoy storing videos on the cloud anytime, anywhere.
  • Page 19 2.3.3 SD Card If you have an SD card on your device, click this button to enter the SD-Card Video Playback.You can filter the corresponding videos according to the time and type. Settings Click the button enter to SD Card settings, you can set SD card info and Recording Schedule.
  • Page 20 SD card info Click the button enter to SD Card settings, you can view the SD card storage information from this page, and you can also format the SD card. Recording Schedule Click the button enter to Recording Schedule setting, you can setting Loop Coverage, Voice Recording and Recording Schedule.
  • Page 21 2.3.5 Camera Info You can see the basic information of the camera through this, such as Camera name, UID, MAC ID and firmware version information. 2.3.6 Share Camera If you set up family members in my family, you can share the camera with your family here.Or you can invite other users to watch the live broadcast in the form of username and account information.
  • Page 22 2.3.7 Motion Zones For Light Customize the area where you want motion to turn on your light.
  • Page 23 2.3.8 Privacy mask This can be used to set certain masks as private areas on the video. Click + draw a mask area on the video , the mask area will be black on the video .Click the back button, the save page appears, click save, click Save to take effect.
  • Page 24 2.3.9 WiFi Settings If you selected Wired Connection via the Foscam, Tap the “WiFi Settings” button > select your WiFi network and enter your WiFi’s password. After setting up successfully, you can view live video without the Ethernet cable. 2.3.10 Advanced Settings...
  • Page 25 Note: Please select the corresponding to the area where you third-party smart speaker account is registered. If the connection is abnormal, you can try to change the area or contact Foscam customer service or contact third-party customer service to change the area registered by Alexa app.
  • Page 26 Prompt Settings On this page you can set Status LED and Voice Prompt Screen Flip On this page you can set Screen Flip. Camera Speaker Volume On this page you can set Camera Speaker Volume, you can adjust the volume by dragging. 2.3.12 Reboot Camera Click Reboot to reboot the camera.
  • Page 27 2.3.13 Delete camera You can click the delete Camera button to delete the camera from the app, or delete and keep history files from the app.

  • Page 28: Surveillance Software Foscam Vms

    3.1 Hardware Connection & Software Installation 1. Connect the camera to the network, make sure it is on the same network as the computer 2. You can download the “Foscam VMS” Windows version from foscam.com/vms , and can download the "Foscam VMS"...

  • Page 29: Add Device

    you haven't created a local administrator account, please click Create Account to create. After creating a local administrator account, you can: 1. Use the account to log in to the client to ensure information security. 2. Create sub-accounts and assign different permissions for management. 3.3 Add Device 3.3.1 LAN Add If your spotcam is wired connect, you can choose the following method to add to FoscamVMS.
  • Page 30 Step1 Select “ALL” from the device types. Step2 Click the IP address of the camera on the list, then the name of the camera and the IP information will be entered automatically. Step 3 Click Add. Step 4 Enter the username and password of the camera. Please Note: Make sure the camera and PC are both in the same Local Area Network (LAN).
  • Page 31 Step 1 Select the IP address from Connection Mode Step 2 Enter the IP and Port of the camera. Step 3 Select “IPC” or “NVR” from the Device types. Step 4 Click Add Step 6 Enter the username and password of the camera.
  • Page 32 3.3.3 Manual add via UID You can add the camera use manual add via UID also. Click the Manual add first, then follow below steps: Step 1 Select the UID from Connection mode Step 2 Enter the UID of the device. Step 3 Click Add...
  • Page 33 Step 4 Enter the username and password of the camera. 3.3.4 Connect the camera to WiFi You can add the camera via Connect the camera to WiFi also. Click Connect the camera to Wi-Fi or the button first, then follow below steps:...
  • Page 34 Step 1 Enter the WiFi Name and WiFi Password, then click Next Note: Please reset your camera. Step 2 Please scan the QR code above with the camera you want to add. After the scan is successful, click confirm.
  • Page 35 Step 3 Return to the device list to connect the device, refer to the LAN add steps 3.3.5 Manually Add via DDNS You can add the camera use manual add via DDNS also. Click the Manual add first, then follow below steps: Step 1 Select the DDNS from the Connection Mode Step 2 Enter the DDNS and Port of the camera.
  • Page 36 Step 5 Enter the username and password of the camera.

  • Page 37: Surveillance Software Gui

    3.4 Surveillance Software GUI First time you login the software, the whole video window is gray, you need to connect the cameras and add cameras to it. Section1 Menu Bar Path to surveillance window. Click this button enter to Device List and back to the surveillance window.
  • Page 38 Left Bar of Live: You can view the list of connected cameras 1----- Reconnect Click the settings button and the device will reconnect. 2----- Move To Click this button, you can move the device to your group list. 3-----SD Card If you have an SD card on your device, click this button to enter the SD directory.
  • Page 39 1-----Close Click the icon to close this channel live window 2-----Device Name Show view channel and camera name. 3-----Recording and Alarm status This icon will turn to red, it indicates that the camera is recording This icon will turn to yellow, the motion is detected during the detection time in the detection area, the camera alarm and adopt the corresponding alarm indicators 4----- Record / Snap Shot / Sound / Talk button Talk...
  • Page 40 need to plug in earphones or enable the computer speakers to hear from the camera's microphone. Make sure the camera supports audio. Click again and stop audio. Talk ----- Click the button, then talk to the microphone that connected with PC, people around the camera can here you voice.

  • Page 41: Advanced Camera Settings

    Night Vision: You can set Night Vision. 3.5 Advanced Camera Settings Click the button, goes to Device Settings to make advanced camera settings. 3.5.1 Status Status contains two columns: Device Information and Logs, it will show you various information about your camera.
  • Page 42 System Firmware Version: Display the System Firmware version of your camera. App Firmware Version: Display the application firmware version of your camera. MAC ID: Display the MAC address of your camera. For example Device ID is 00626EE96E3C, the same MAC ID sticker is found at the bottom of the camera. Device Time: The system time of the device.
  • Page 43 3.5.1.4 Logs The log record shows who and which IP address accessed or log out the camera. Click the page number and go to the corresponding page to see more logs Full in one page number, click go GO button and go to the corresponding page.
  • Page 44 3.5.2 Basic This section allows you to configure your Device Name, Time, User Accounts, Status Light and Voice Prompt. 3.5.2.1 Camera Name Default alias is Foscam_camera. You can define a name for your camera here such as apple. Click Save to save your changes.
  • Page 45 Click Save button and submit your settings. 3.5.2.3 User Accounts Here you can create users and set privilege, visitor, operator or administrator. The default administrator user accounts are administrator with a blank password. How to change the password? Firstly, select the account which you want to change the password, then select Change password, enter the old password and the new password, lastly click modify to take effect.
  • Page 46 3.5.2.4 Status Light If you have a power and network status light on your camera, you can turn it on and off with this feature. This camera don‘t have the status light described above. 3.5.2.5 Voice Prompt You can set the voice prompt on the camera to turn on and off if you connect an external audio device.
  • Page 47 3.5.3 Network This section will allow you to configure your camera's information. 3.5.3.1 IP If you want to set a static IP for the camera, please go to IP page. Keep the camera in the same subnet of your router or computer. It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC.
  • Page 48 If you don't know the DNS server, you can use the same settings as the Default Gateway. 3.5.3.2 WiFi Step 1: Click the Scan button and the camera will detect all wireless networks around the area. It should also display your router in the list.
  • Page 49 Click the Scan button to search for wireless networks. Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network, such as the name and the encryption, will be filled into the relevant fields automatically. You will only need to fill in the password of your network.
  • Page 50 Congratulations! You have set up the wireless connection of the camera successfully. NOTE: If you fail to make a wireless connection, please refer to your seller or contact us directly for assistance. 3.5.3.3 DDNS FOSCAM cameras can use third-party domain names.You can choose the corresponding third-party domain name.
  • Page 51 3.5.3.4 Port This camera supports HTTP Port / HTTPS Port/ ONVIF Port. HTTP Port is used to access the camera remotely. HTTP port: By default, the HTTP is set to 88. Also, they can be assigned with another port number between 1 and 65535.
  • Page 52 FTP server: If your FTP server is located on the LAN, you can set as Figure a. If you have an FTP server which you can access on the internet, you can set as Figure b. Port: Default is port 21. If changed, external FTP client program must change the server connection port accordingly.
  • Page 53 1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.
  • Page 54 If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail. If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test .
  • Page 55 Stream type: There are four types to identify different streams you have set. Resolution: The camera supports multiple types, For example: 2K,3M,1080P, 720P, VGA. The higher the resolution is, the clearer video will become. But the code flux will become larger too, and it will take up more bandwidth.
  • Page 56 3.5.4.3 Privacy This page is used to set some mask as privacy zone on the video. Privacy Zone: Allow On Screen Display Mask, there are two options, Yes or NO. Select Yes and draw a mask area on the video, the mask area will be black on the video. The mask area...
  • Page 57 Click Save button and return to the Privacy Zone page, click Save to take effect. Back to the surveillance window, you can see the mask area as the following picture. 3.5.4.4 Snapshot On this page you can set the snapshot pictures' image quality and the storage path. Manual Snap Quality: Low, Middle and High.
  • Page 58 Enable Timing to Capture To enable capture interval, follow the steps below: 1 Select Enable timing to capture 2 Capture interval: The interval time between two captures. 3 Select the capture time  Capture anytime Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will capture.
  • Page 59 3.5.4.6 Color Adjustment You can adjust the settings to your liking. 3.5.4.7 NAA Enabling NAA(Network Auto-Adaptability) can make IP Camera changing the real-time rate to adapt different network conditions, which can supply better preview experience.
  • Page 60 3.5.4.8 HDR You can choose to turn it on or off according to your own scene. 3.5.5 Detector 3.5.5.1 Motion Detection IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or upload images to FTP.
  • Page 61 To enable motion detection, follow the steps below: 1 Enable Detection Switch 2 Set detection area You can set the alarm area. 3 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed.
  • Page 62 If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail Settings first. D Recording If you select this checkbox, when the motion has been detected, the camera will recording and load it to the FTP server.
  • Page 63 Press the left mouse and drag it on the time boxes, you can select the serial area, 8 Click Save button to take effect. When the motion is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators. NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.
  • Page 64 To enable motion detection, follow the steps below: 1 Enable Detection Switch 2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity. 3 Trigger Interval----The interval time between two motion detections. Here supports 5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s.
  • Page 65 If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail Settings first. D Recording If you select this checkbox, when the sound has been detected, the camera will recording and load it to the FTP server.
  • Page 66 Press the left mouse and drag it on the time boxes, you can select the serial area, 7 Click Save button to take effect. When the sound is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators. NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.
  • Page 67 5.3.5.4 Alarm Linkage After setting an URL, when camera triggers a detection, will call the URL. step: 1. You can fill in the alarm linkage address in the Full URL and click the Generate button, or modify it in the saved information, then click Save.
  • Page 68 3.5.6 Record 3.5.6.1 Storage Management On this page you can choose Record Storage Path. The record storage path default is SD card. 3.5.6.2 Alarm Recording On this page you can configure the Alarm-recording Time, Enable pre-record time and Alarm-Recording time. 3.5.6.3 Schedule Recording On the page you can configure the schedule record.
  • Page 69 Click Save button to take effect. 3.5.7 System In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device. 3.5.7.1 Back-up & Restore Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future use.
  • Page 70 3.5.8.2 System Upgrade Click Download the Latest Firmware, you will see the following screen. And click Save to save the firmware on your computer locally. Your current firmware version will be displayed on your screen. You may go to the Status > Device Information page to check for the latest firmware versions available.
  • Page 71 3.5.7.4 Factory Reset Click Factory Reset button and all parameters will return to factory settings if selected. 3.5.7.5 Reboot Click Reboot to reboot the camera. This is similar to unplugging the power to the camera. You can set Enable periodic maintenance and set Period.

  • Page 73: Appendix

    After setup wireless configuration, and input the wireless password correctly, save the settings. Normally, after you disconnect the Ethernet cable, wait for few minutes camera will show up again in Foscam VMS LAN list with a new IP address. That indicates your camera’s connected wireless.
  • Page 74 and set a new user name and password. 4.1.3 How to setup alarm recording to Micro SD card For the cameras that support Micro SD card, we can save alarm recording on SD card and below are the steps to set it up: Step 1: Setup the Motion Detection Settings Please go to Device Settings >...
  • Page 75 Note: 1) Please DO NOT forget to set the alarm schedule, the alarm schedule is red. 2) Please make sure your camera time is correct. 3) Please DO NOT forget to set the alarm area, the detected area is covered by the red grids. Or for some models you can setup 3 detection zones in total.
  • Page 76 4.1.5 Camera is added by others When use Foscam app, one camera can only be added to one account at the same time. To solve error “This camera has already been added by another account” when add camera to Foscam app , please reset the camera.

  • Page 77: Default Parameters

    4.2 Default Parameters Default network parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically 4.3 Specification ITEMS Spot Camera White LED The irradiation distance of white light can reach 10m Spotlight Color temperature 2800K Sensor High Definition Color CMOS Sensor Image Sensor Display Resolution 2688*1520 (4.0M Pixels)

  • Page 78: Ce & Fcc

    Alarm via E-Mail, upload alarm snapshot to FTP , push Motion Detection message to mobile phone and push stream to Cloud Alarm via E-Mail, upload alarm snapshot to FTP , push Sound Detection message to mobile phone and push stream to Cloud Alarm via E-Mail, upload alarm snapshot to FTP , push Human Detection message to mobile phone and push stream to Cloud...

  • Page 79: Warranty

    No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.
  • Page 80 Failure to follow the product instructions.  Normal wear and tear. Return Procedures Please read FOSCAM warranty policy & policy of your reseller first before sending items back to  point-of-purchase.  Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA) number before returning the product.

  • Page 81: Statement

    FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.
  • Page 82 You need to abide by the relevant laws and regulations of the use restrictions when using Foscam cameras. Our company takes no responsibility of illegal activities by using our products. Our company takes no responsibility of the loss by force majeure, such as failure or faults of telecom system or the Internet network, computer viruses, malicious attacks of hackers, information damage or loss, and faults of computer system.

  • Page 83: Obtaining Technical Support

    User's Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: support@foscam.com...
