Wize A55 Instruction Manual

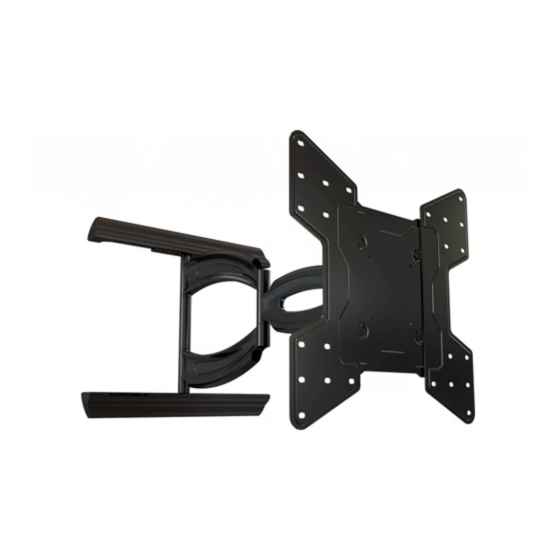

Full motion articulating wall mount for 37”-55” tv's / weight capacity: 150 lb
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.wize-av.com

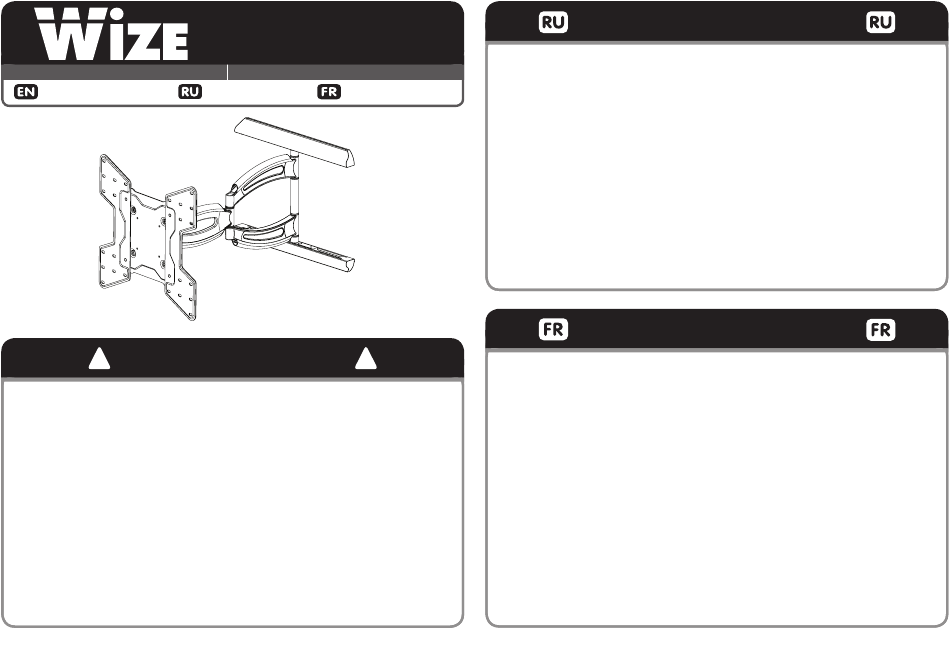

Instruction Manual
WA RN ING!
!
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM
IMPROPER INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE
Do not use this product for any purpose not explicitly specified by Wize. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts
about the safety of the installation, contact Wize Customer Service or call a qualified contractor. Wize
is not liable for damage or injury caused by incorrect mounting, assembly, or use.
The hardware provided with this product, is exclusively intended for installation on walls made of
solid wood, concrete, concrete block or solid wood columns with a maximum of 16 mm of drywall.
For walls made of other materials, for example hollow bricks, please consult your installer and/or
specialist supplier.
DO NOT EXCEED THE MAXIMUM WEIGHT CAPACITY FOR THIS PRODUCT
Full motion Articulating Wall Mount
For 37"-55" TV's / Weight Capacity: 150 lb
inf@wize.ru
Инструкция
Manuel D'instructions
!
BEGINNING.
A55
ВНИМАНИЕ! ТРАВМА И ПОВРЕЖДЕНИЕ ОБОРУДОВАНИЯ МОЖЕТ ПРОИЗОЙТИ ОТ
НЕПРАВИЛЬНОЙ УСТАНОВКИ ИЛИ СБОРКИ. ОЗНАКОМЬТЕСЬ СО СЛЕДУЮЩИМИ
Компоненты, входящие в этот продукт, предназначен для установки на стенах из цельного
дерева, бетона или бетонных блоков. Для стен из других материалов, таких как кирпич,
пожалуйста, проконсультируйтесь с вашим инсталлятором и / или специалистом поставщика.
НЕ ПРЕВЫШАЙТЕ МАКСИМАЛЬНЫЙ ВЕС, УКАЗАННЫЙ В ИНСТРУКЦИИ
AVE RT ISSE ME NT
AVERTISSEMENT! SI CE PRODUIT N'EST PAS CORRECTEMENT INSTALLÉ OU ASSEMBLÉ,
IL RISQUE DE CAUSER DES BLESSURES RAVES, VOIRE MORTELLES, AINSI QUE DES DOM-
MAGES MATÉRIELS IMPORTANTS. AVANT DE COMMENCER, LISEZ LES AVERTISSEMENTS
NE DÉPASSEZ JAMAIS LA CAPACITÉ DE CHARGE MAXIMALE DE CE PRODUIT.
1
ВНИ МА НИ Е !
ПРЕДУПРЕЖДЕНИЯМИ ПЕРЕД НАЧАЛОМ.
SUIVANTS.
A55V-0002
