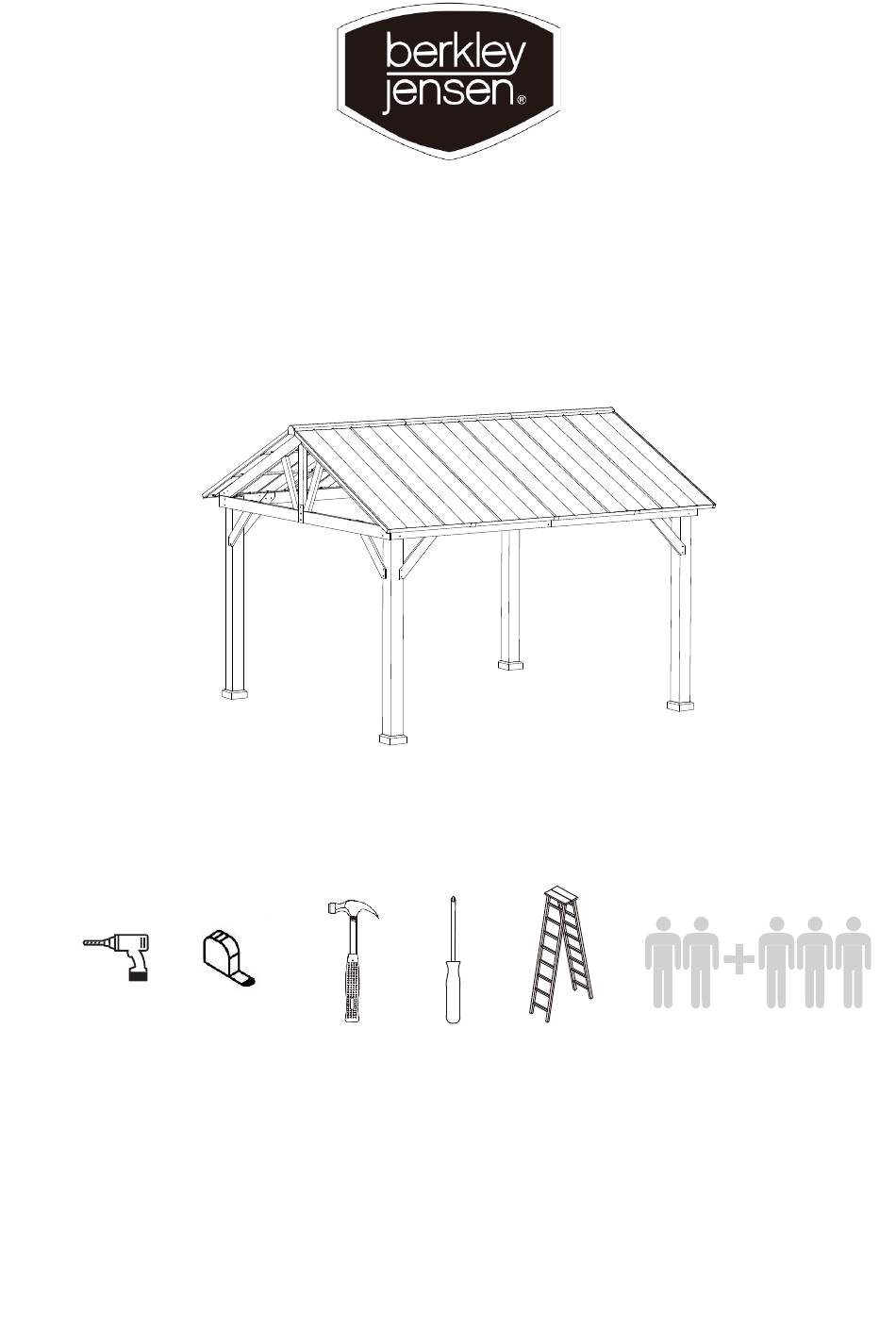

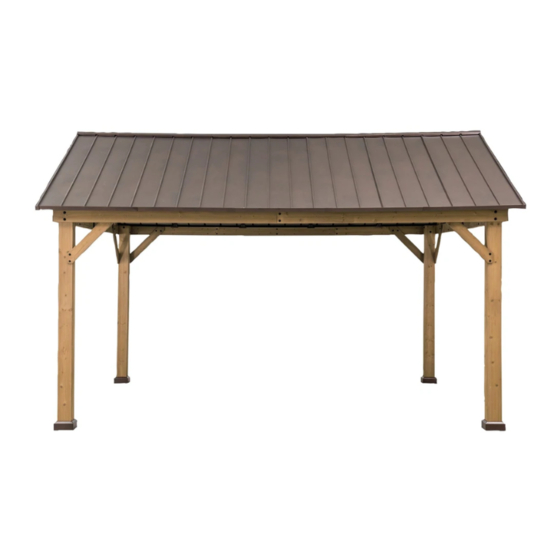

10' x 12' WOOD PAVILION
ASSEMBLY INSTRUCTIONS
Note: The pavilion needs to be installed in cooperation with five
people. The following tools are not included and needed for assembly:
Pistol Drill Tape Measure Hammer
If you have comments or questions, please contact BJ's Wholesale Club at 1-800-934-1204.
If you have any issues with the product, do not return the product back to the store.
For any questions, replacement parts or issues about our product, call Sunjoy Customer
Service 1(866) 578 6569. For further assistance, please email us at bj@sunjoygroup.com.
A R T I C L E # 2 5 1 1 3 7
Screwdriver
Ladder
5 people
Advertisement
Related Manuals for Berkley Jensen 251137
Summary of Contents for Berkley Jensen 251137
- Page 1 10' x 12' WOOD PAVILION A R T I C L E # 2 5 1 1 3 7 ASSEMBLY INSTRUCTIONS Note: The pavilion needs to be installed in cooperation with five people. The following tools are not included and needed for assembly: Pistol Drill Tape Measure Hammer Screwdriver Ladder...
- Page 2 2 / 31 Important Safety Instructions Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the pavilion. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
- Page 3 3 / 31 Part List Description Label Part Number Part Image Outer Long Right P000400507 （ ） Beam Long Outer Long Left P000400506 （ ） Beam Long Outer Long Left P000400508 （ ） Beam Short Outer Long Right P000400509 （ ）...
- Page 4 4 / 31 Triangular P000501251 Connector 2 Triangular P000501252 Connector 3 Beam Upper P000501253 Connector Triangular Upper P002200226 Press Big Roof Beam 1 P000601447 Big Roof Beam 2 P000601448 Roof Beam P000501090 Connector 1 Roof Beam P000501091 Connector 2 Roof Beam P000501107 Connector 3 Big Roof Middle...
- Page 5 5 / 31 Big Roof Side P000600377 Tube 2 Big Roof Small P000601453 Beam Small Beam P002200224 Presser P000700926 Roof Cover Big Roof Cover 1 P000800255 Big Roof Cover 2 P000800256 Steel Pin P005100267 Catch P005600322...
- Page 6 6 / 31 Hardware Pack Bolt M10*205 H010010276 H050030001 150+8 Flat Washer M6 Screw M5*40 H030050057 64+4 Nut M6 H040010004 Screw M5*30 H030050058 116+6 Bolt M6*15 H010020011 138+7 Bolt M6* 75 H010020024 Bolt M8*35 H010030083 16+1 Bolt M8*35 H030030010 18+1 Bolt M8*25 H010030084 24+2...
- Page 7 7 / 31 Screw M10*80 H030010031 Stake Φ8*180 H070010003 Bolt M6*35 H010020013 M3 Drill H090990002 T-Nut H040090005 16+1 M8*20 Non-slip nuts H040050021 10+1 T-Nut H040090004 24+2 M8*8 Bolt M8*50 H010010363 10+1 Wrench M6 H090010017 H090030005 Allen Key M8 H090010012 Wrench M8 H090010015 Wrench M10...
- Page 8 8 / 31...
- Page 9 9 / 31...
- Page 10 10 / 31...
- Page 11 11 / 31...
- Page 12 12 / 31...
- Page 13 13 / 31...
- Page 14 14 / 31...
- Page 15 15 / 31 d1=d2 Rt∠90 Assembly Tip on Step 8: Please measure to make sure the length of d1 is equal to d2 before moving to next step to ensure a square frame and best results. Keep the beam at right angles to the post, the post at right angles to the ground, and keep the beam horizontal.
- Page 16 16 / 31...
- Page 17 17 / 31...
- Page 18 18 / 31...
- Page 19 19 / 31...
- Page 20 20 / 31...
- Page 21 21 / 31...
- Page 22 22 / 31...
- Page 23 23 / 31...
- Page 24 24 / 31...
- Page 25 25 / 31...
- Page 26 26 / 31...
- Page 27 27 / 31...
- Page 28 28 / 31...
- Page 29 29 / 31...
- Page 30 30 / 31...
- Page 31 31 / 31 Cleaning and Maintenance Caution! Check all screws and nuts periodically for tightness, fastening them again as required. Disassemble the pavilion in the reverse order of the assembly steps. Always disassemble the pavilion completely. A partially disassembled pavilion is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
