- Page 1 BATH.EDBYELLEN.COM...
- Page 2 INTRODUCTION WELCOME ED is Ellen DeGeneres’ iconic style, values and personality shared through collections of beautifully designed, high-quality products for home, pets and people. All ED merchandise design and materials are approved by Ellen, ensuring it maintains her standards and upholds her promise to make each item feel like a personal connection between herself and consumers around the world.

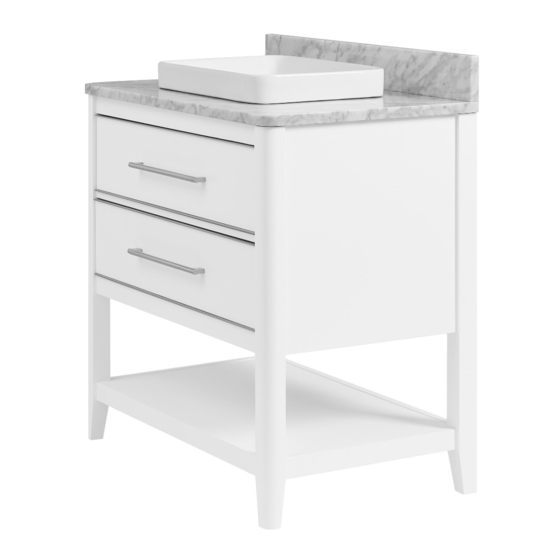

- Page 3 ITEM #3650553; 3650554; 3650555; 3650556; 36-IN VANITY 3650557; 3650558; 3650559; 3650560 MODEL # 1549VA-36-201-900-SR; 1549VA-36-201-900-UM; 1549VA-36-201-907-SR; 1549VA-36-201-907-UM; WITH TOP 1549VA-36-242-900-SR; 1549VA-36-242-900-UM; 1549VA-36-242-907-SR; 1549VA-36-242-907-UM OPTION 1 OPTION 2 (Semi-Recessed Sink) (Undermount Sink) MODEL NUMBER DESCRIPTION 1549VA-36-201-900-SR ED 36-IN LYNNMERE WHITE VANITY W/ SEMI-RECESSED CARRARA MARBLE TOP...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink) Package Contents...........................5 Hardware Contents..........................5 Safety Instructions...........................5 Preparation ............................6 Assembly or Installation Instructions .....................6 Care and Maintenance .........................12 Warranty ............................12 Replacement Parts List .......................13 TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink) Package Contents.........................15 Hardware Contents........................15 Safety Instructions.........................15 Preparation ..........................16... -
Page 5: Package Contents
PACKAGE CONTENTS (Semi-Recessed Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Upper Drawer (preassembled to Vanity(A)) Lower Drawer Box 2 of 3 (preassembled to Vanity(A)) Drawer Divider Drawer Box Sink Template Box 1 of 3 HARDWARE CONTENTS... -
Page 6: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) - Page 7 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 3. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face up onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 8 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 5. Put the sink template (L) on the top (B). The hole in the cardboard needs to be aligned with the hole in the stone top. Make sure the sink template and stone top are flush along the back edge. 6.
- Page 9 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 7. With the help of another adult, Gently lower the sink onto the stone top using even pressure to set the sink properly. Make sure the sink over-flow hole is at the front of wood cabinet. If some silicone caulk has over-flowed please clean it up at that time with water.
- Page 10 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 9. To reinstall drawer(s) into vanity (A), fully extend metal glide tracks. Gently lower and slide drawer box into rear glide catch. Next, lower drawer box down to completely rest on extended glides. Then, push plastic levers to lock the drawer box in place.
- Page 11 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 11. Put the two drawer boxes (H) into the left and right sides of the lower drawer (F), as illustrated in the diagram.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 13: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1549VA-36-201-SR (Semi-Recessed Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 36" Carrara Marble Top 5550VT-36-900 Complete Set 36" Pure White Top 5550VT-36-907 36"... - Page 14 REPLACEMENT PARTS LIST FOR 1549VA-36-242-SR (Semi-Recessed Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 36" Carrara Marble Top 5550VT-36-900 Complete Set 36" Pure White Top 5550VT-36-907 36"...
-
Page 15: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Upper Drawer (preassembled to Vanity(A)) Lower Drawer Box 2 of 3 (preassembled to Vanity(A)) Drawer Divider Drawer Box HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen... -
Page 16: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Undermount Sink) - Page 17 INSTALLATION INSTRUCTIONS (Undermount Sink) 3. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 18 INSTALLATION INSTRUCTIONS (Undermount Sink) 5. Screw bolts (EE) into the threaded holes of stone top (B). Hardware Used Bolt 6. Lower the sink brackets (FF) over the bolts (EE) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (HH) over bolts (EE) and secure with nuts (GG).
- Page 19 INSTALLATION INSTRUCTIONS (Undermount Sink) Helpful tip: it may be easier to install your choice of faucet (not included) before securing the vanity top (B) to vanity base (A). 7. To install the Top (B) to the vanity (A). Apply silicone caulk to the top edge of the wood cabinet.
- Page 20 INSTALLATION INSTRUCTIONS (Undermount Sink) 9. To reinstall drawer(s) into vanity (A), fully extend metal glide tracks. Gently lower and slide drawer box into rear glide catch. Next, lower drawer box down to completely rest on extended glides. Then, push plastic levers to lock the drawer box in place.
- Page 21 INSTALLATION INSTRUCTIONS (Undermount Sink) 11. Put the two drawer boxes (H) into the left and right sides of the lower drawer (F), as illustrated in the diagram.
-
Page 22: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 23: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1549VA-36-201-UM (Undermount Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 36" Carrara Marble Top 4550VT-36-900 Complete Set 36" Pure White Top 4550VT-36-907 36"... - Page 24 REPLACEMENT PARTS LIST FOR 1549VA-36-242-UM (Undermount Sink) For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Complete Set 36" Carrara Marble Top 4550VT-36-900 Complete Set 36" Pure White Top 4550VT-36-907 36"...
