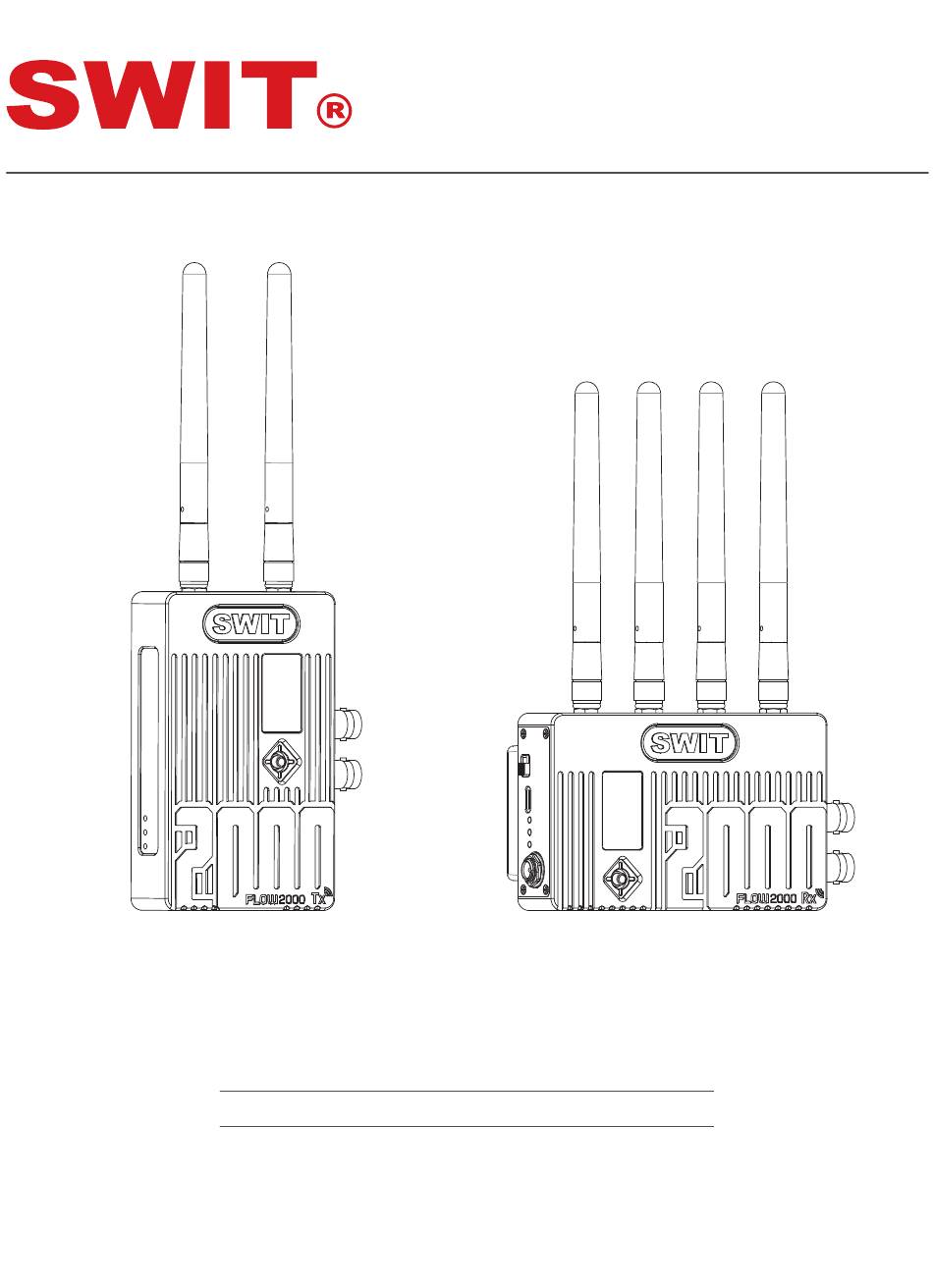

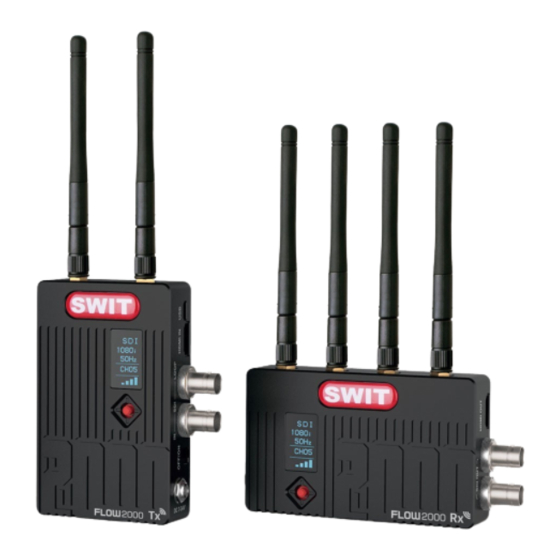

- Page 1 SWIT ELECTRONICS CO., LTD. Model： FLOW2000Tx/FLOW2000 Rx 2000ft Wireless HD User Manual Please read this user manual throughout before using Ver： C...
- Page 2 All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
-
Page 3: Safety Precautions
Safety Precautions Please follow the safety precautions before using. The following conditions are not covered by warranty. 1. Unauthorized repairs or other Unauthorized operations. 2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas. 3. -
Page 4: Product Introduction
1. Product Introduction FLOW2000 includes transmitter and receiver, adopts the latest encrypted transmission technology, Supports SDI and HDMI wirelessly transmitted in 600 meters scale (Line-of-Sight), 2 channels SDI/HDMI digital video transmission, auto pairing and OLED display. FLOW2000 is equipped with DC power connector, compact size, portable, and the receiving signal is very stable. - Page 5 3. Appearance Instruction Transmitter FLOW2000 (10) (11) ⑴ Antenna (12) ⑵ Product label (13) ⑶ Link： Wireless status indicator (14) ⑷ Video： Video signal indicator (15) ⑸ Power： Power status indicator ⑹ OLED： 0.96-inch OLED ⑺ Five-direction switch： Five-direction adjustment button (adjust the display menu to switch and confirm in five directions: up, down, left, right, and vertical) ⑻...
- Page 6 Receiver FLOW2000 (11) ⑴ Antenna (12) ⑵ ON/OFF： Power switch (10) (13) ⑶ USB： Micro USB, software upgrade interface ⑷ Link： Wireless status indicator ⑸ Video： Video signal indicator ⑹ Power： Power status indicator ⑺ DC in： Support DC 7-34V voltage input, 5.5mm (outer diameter) /2.1mm (inner diameter). Outside: negative, Inside: positive ⑻...
- Page 7 4. OLED Display menu Initial interface （One-to-one mode） Initial interface （One-to-one mode） When no signal input， the transmitter is consistent When Transmitter and receiver video signal con- with the receiver display content. See Fig. 1 nection normal, the transmitter is consistent with the receiver display content.
- Page 8 Interface changing a ： Changing interface in transmitter via using joystick(left and right),see fig .7、 8、 9. b : Changing interface in receiver via using joystick(left and right),see fig .7、 9. FIRM- PREF. MULTI One to multi mode Firmware upgrade High quality mode WARE HIGH...
- Page 9 ⑵ Connecting SDI OUT interface of FLOW2000 receiver with SDI IN interface of monitor or switcher. When using one-to-multi mode, every SDI OUT interface of receiver should be connected with SDI IN interface of monitor or switcher. ⑶ Switch on both FLOW2000 transmitter and receiver, “Power” indicator light up， OLED screen show “WAIT�”...
- Page 10 8. The way to get the best effective of Wireless Transmission ⑴ Set the antenna on both transmitter and receiver vertically straight up.(See Fig.12)， Set the receiver faces the transmitter to extend the transmission distance and stabilize the transmission quality. Fig.12 ⑵...
-
Page 11: Troubleshooting
9. Trouble shooting If the receiver failed to output video correctly, the possible causes are as below; please find the solution from following chart: The receiving Possible causes Solution video Check power connection and switch on The transmitter receiver is the transmitter and receiver not powered on Install the antennas properly and screw...
