User Guide

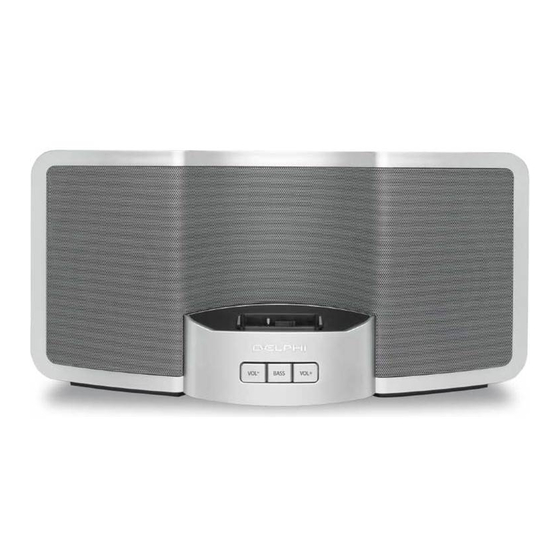

Premium Sound System
(SKYFi3 receiver sold separately)
Important: This manual contains important safety and operating information. Please read, understand,
and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or
damage to your Delphi Premium Sound System, accessories, and/or to your vehicle or property.
Advertisement
Table of Contents
Related Manuals for Delphi SA10221
Summary of Contents for Delphi SA10221
-
Page 1: User Guide
Important: This manual contains important safety and operating information. Please read, understand, and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or damage to your Delphi Premium Sound System, accessories, and/or to your vehicle or property. - Page 2 Warning: To prevent fire or shock hazard, do not expose the Delphi Premium Sound System to rain, moisture or water. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1.
- Page 3 Owner’s Record The model number is located below and the serial number is located on the label on the rear of the Delphi Premium Sound System. Record the serial number in the space provided below. Refer to these numbers whenever you call your dealer regarding this product.
- Page 4 Delphi Premium Sound System Controls: VOL - VOL + BASS volume down bass boost volume up...
- Page 5 Saturday and Sunday from 10:00 a.m. - 4 :00 p.m Eastern Time Note: Extended seasonal hours may be available. Thank you for purchasing the Delphi Premium Sound System. We’ve designed many thoughtful features into this system to ensure that your level of listening enjoyment is the very best it can be.
-
Page 6: Table Of Contents
Indoor Installation on a Flat Surface ... 20 Outdoor Installation or Indoor Wall Mounting ... 20 Repeater Antenna ... 23 Using the Delphi Premium Sound System ... 4 Volume ... 24 Bass Boost ... 24 Headphones ... 24 Aux In ... 26 Other Things You Should Know... -
Page 7: Welcome
You are just minutes away from being able to play more than 170 crystal clear channels of live XM® satellite radio on a precisely engineered speaker system. Read the following pages to get started with your new Delphi Premium Sound System. About Delphi Delphi is a world leader in mobile electronics, vehicle components and audio technology. -
Page 8: Getting Started
Getting Started What’s In the Box Your Delphi Premium Sound System Kit contains the following components: Items in the box 1. Premium Sound System 2. Radio cradle inserts for Roady ® XT, MyFi ® , SKYFi3 ® and Audiovox® receivers 3. -
Page 9: Setting Up The System
Delphi Premium Sound System. Plug the other end into the wall outlet. You may also use 8 “C” batteries (not included). 2. The XM Antenna is located under the top cover of the Delphi Premium Sound System. If needed (i.e. unit is placed away from a south facing... -
Page 10: Installing The Cradle
Getting Started to attach the antenna to the four tabs on the back of the Delphi Premium Sound System. Or you can extend the entire 20’ cable away from the system to improve reception.To reattach the top cover, line up all tabs and then slide the cover toward the front of the unit until a click is heard. -
Page 11: Power Up The System
(from 0 to 1 or from 1 to 0 if the receiver is not authorized yet). NOTE: Some receivers will power up automatically when installed in the Delphi Premium Sound System. If the “ANTENNA” message remains, power down the radio, unplug the antenna and look for any obvious damage in the connector, jack or antenna cable. -
Page 12: Using Skyfi3
2. Place the cradle insert containing the SKYFi3 into the cradle by first press- ing in on the back of the black inset cradle in the Delphi Premium Sound System. Then let the cradle tilt forward, carefully slide the cradle insert... - Page 13 Getting Started 4. If the display reads “NO SIGNAL” after powering up, follow the instruc- tions in “Setting up the Antenna” on page 18. NOTE: Getting started instructions on all receivers are the same with the exception of having to turn on the MyFi on the receiver and adjusting the separate volume control on that receiver as well.
-
Page 14: Using Myfi
Getting Started Using MyFi with Delphi Premium Sound System ® Special note for MyFi receivers: If you have purchased the MyFi unit, you must turn on the MyFi switch located in the battery compartment of the Premium Sound System. Sliding this switch to “2” position will make the Premium Sound System compatible with MyFi radios. - Page 15 Getting Started Switch to “” position to use your MyFi with the Delphi Premium Sound System.
-
Page 16: Using Roady® Xt
Doing so could cause damage to the unit. 2. Insert the adaptor containing the Roady XT into the cradle by pressing in on the back of the black inset cradle in the Delphi Premium Sound System. Then let the cradle tilt forward and carefully slide the adaptor down into the tray so that the alignment tabs on the sides of the tray line up with the slots on the adaptor and the connector is completely seated. - Page 17 Getting Started 4. If the display reads “NO SIGNAL” after powering up, follow the instructions in “Setting up the Antenna” on page 18.
-
Page 18: Using Audiovox® Xpress Tm
The Audiovox receiver cradle insert can be removed by reversing this process. 3. Power up the Delphi Premium Sound System by using the power button on the receiver or on the remote control. If the display reads “ANTENNA”... - Page 19 Getting Started 4. If the display reads “NO SIGNAL” after powering up, follow the instruc- tions in “Setting up the Antenna” on page 18.
-
Page 20: Using Batteries
Battery life will vary depending on how the system is operated and the type of batteries being used. It is recommended that the AC adaptor be the primary power source for the Delphi Premium Sound System in order to preserve battery life. Note: The Delphi Premium Sound System does not charge rechargeable batteries. - Page 21 Getting Started Back Cover Battery Switch To keep the batteries from draining when not in use, switch the button to OFF position. The function of the Battery switch in the rear is to provide protection against battery drainage when Premium Sound System is not plugged into the wall.
-
Page 22: Setting Up The Antenna
If the satellite signal is not available, you can optimize it for a terrestrial signal (where available). Optimizing Antenna Position/Signal 1. Press the “Power” button on the receiver to turn on the Delphi Premium Sound System. 2. Press the “Menu” button. -
Page 23: Positioning The Xm Antenna
Caution: Do not set anything on top of the Premium Sound System as it may reduce antenna signal reception. Positioning the Antenna When outdoors with a view of the southern sky, or in an area of repeater coverage, or when receiving a strong signal indoors, you can conveniently leave the antenna under the top cover and secure the wires under the cover. -
Page 24: Indoor Installation On A Flat Surface
Your antenna comes with 20’ of cable. If that is not sufficient to locate the antenna where there is a strong XM signal, purchase the Delphi XM Signal Repeater (Delphi model number SA10116) from your retailer or www.shopdelphi.com. - Page 25 2. Attach four screws to the wall using the screw-locator pattern shown below. Photocopy the pattern to use as a template. Use screws with head sizes small enough to fit in the center of each of the four holes but large enough not to pop out of the elongated sections.
- Page 26 Note: DO NOT CUT THE ANTENNA CABLE and attempt to splice it or attach alternative connectors or cable. The cable and connectors used in your Delphi Premium Sound System are specially chosen and attached at the factory to ensure that they will work with XM’s unique frequency band. Use an XM-approved extension kit (Delphi model number SA10006) with your receiver.
-
Page 27: Repeater Antenna
The top cover can now be snapped in place. Once the Delphi Premium Sound System is set up and the satellite receiver is installed, the complete setup can be controlled as described in the... -
Page 28: Using The Delphi Premium Sound System
Volume Volume can be adjusted using the push buttons on the Delphi Premium Sound System. In addition, when the receiver is connected to the Delphi Premium Sound System, the + and - controls on the receiver’s remote control can also be used to increase (+) and decrease (-) volume. -
Page 29: Bass Boost
This feature only appears and only applies when the receiver is seated in the Delphi Premium Sound System. If the receiver is removed and used in a vehicle adaptor or home adaptor, the bass and treble settings out of the receiver will be “flat”... -
Page 30: Aux Input
2. Increase volume slowly until you hear comfortably and clearly. Aux Input To plug in your MP3 player, CD player, or other audio device, the Delphi Premium Sound System is equipped with an auxiliary 3.5 mm input jack located in the rear of the unit. Connection cables are not included. -
Page 31: Other Things You Should Know
• Do not place the Delphi Premium Sound System on an inclined or unstable surface. • Do not place anything within 1/2” of the side of the Delphi Premium Sound System. The audio/ventilation ports must be unobstructed for the Delphi Premium Sound System to operate properly and prolong the life of its components. -
Page 32: Troubleshhooting
• If the Delphi Premium Sound System is splashed with salt water, wipe clean with a damp cloth, and then dry with a soft dry cloth. Do not wash under running water;... -
Page 33: Maintenance
If there is no audio: • Unplug the satellite radio receiver from the Delphi Premium Sound System and re-insert it. • Make sure that Audio level is set correctly. • Make sure that radio is not muted. If noise is heard coming through the Delphi Premium Sound System: •... -
Page 34: Specifications
Other Things You Should Know Specifications Frequency Response ...30Hz to 20kHz Headphone Connector Type ...3.5mm Stereo Jack (1/8”) Auxiliary Connector Type ...3.5mm Stereo Jack (1/8”) Battery Type/Qty ...“C” Cell / 8 Total Overall Dimensions ...L15.7” x H7.8” x W8.3” ...(L400 x H198 x W210 mm) Weight (Without Batteries)...4.11 kg Operating Temperatures ...0˚... -
Page 35: Warranty
WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL CONSUMER PURCHASER OF THE PRODUCT. Delphi will, as its sole obligation under this warranty, replace or repair, at its option, any Product that does not conform to this warranty. Products may be repaired or replaced with new or with refurbished items. - Page 36 Delphi authorized repair facility, (xiii) other improper application, installation or operation of this Product, or (xiv) defects or malfunctions of which Delphi is not advised within ten (10) days of the expiration of the limited warranty period. How you (the Customer) can get service...
-
Page 37: Delphi Limited Consumer Warranty Canada
Under no circumstances will Delphi be liable for any loss of revenue, loss of profits or failure to realize expected savings (collectively, “Economic Loss”) under this warranty or any implied conditions or warranties. - Page 38 Delphi authorized repair facility, (xiii) other improper application, installation or operation of this Product, or (xiv) defects or malfunctions of which Delphi is not advised within ten (10) days of the expiration of the limited warranty period. How you (the Customer) can get service...
- Page 39 Loss. So the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights. You may also have other rights that may vary from province to province. NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY. Warranty Warranty...
- Page 40 Xpress by Audiovox is a trademark of the Audiovox Electronics Corporation. MaxxBass and Maxx logo are registered trademarks of Waves Audio Ltd. in the United States and other countries. MyFi is a trademark of Delphi Corporation. ©2007 Delphi Corporation. All rights reserved DPSS-07-E-001 Version 1.0...
