Operator's Manual
28" & 30" Steerable Snowthrowers
Model No. C459-52927 (28")
Model No. C459-52925 (30")
CAUTION: Before using this
product, read this manual
and follow all safety rules
and operating instructions.
Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3
®
Visit our web: sears.ca
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
FORM NO. 769-05208
7/20/2009
Advertisement
Table of Contents
Related Manuals for Craftsman C459-52927
Summary of Contents for Craftsman C459-52927

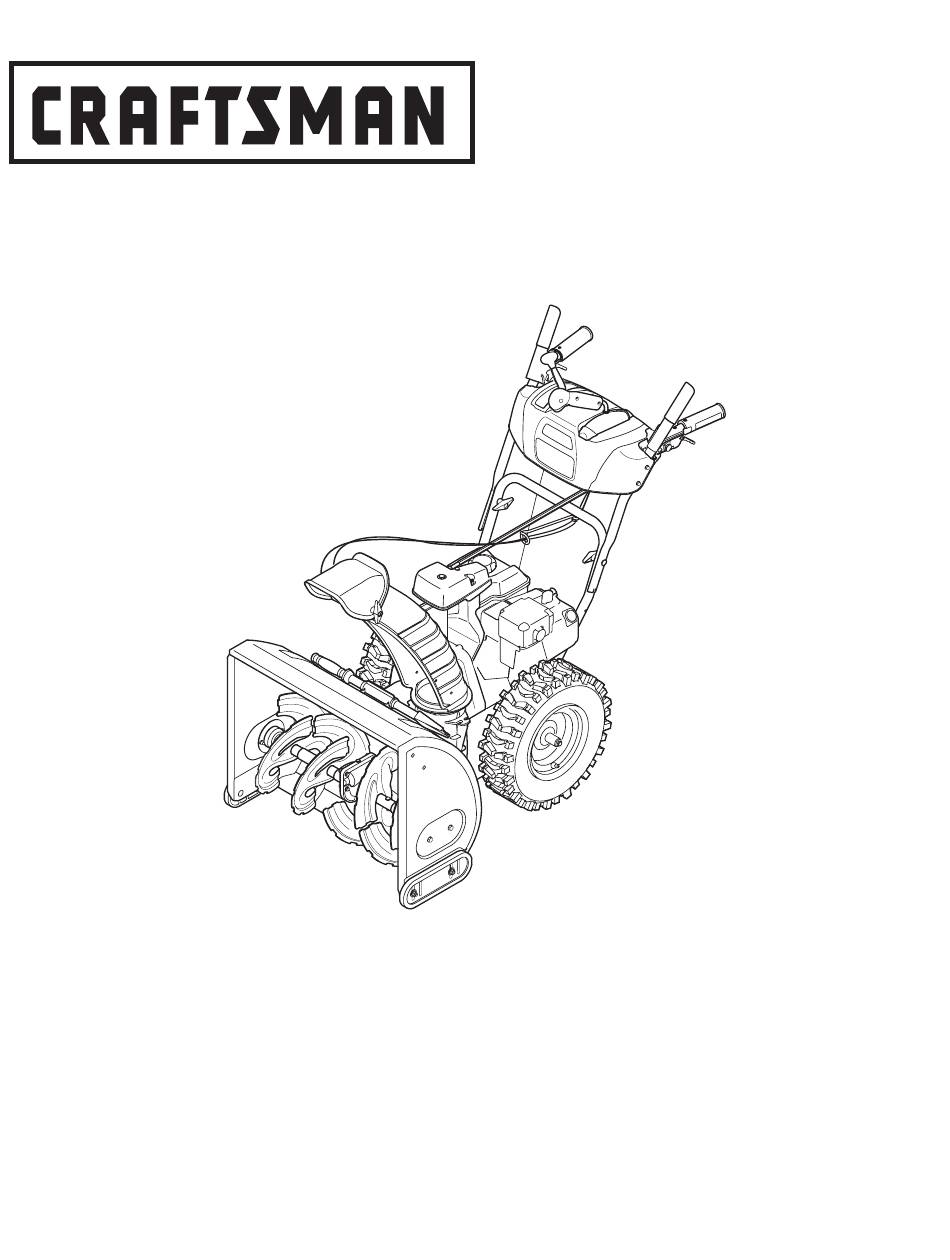

- Page 1 Operator’s Manual ® 28” & 30” Steerable Snowthrowers Model No. C459-52927 (28”) Model No. C459-52925 (30”) • SAFETY • ASSEMBLY • OPERATION • MAINTENANCE • PARTS LIST CAUTION: Before using this product, read this manual and follow all safety rules and operating instructions.
- Page 2 02488 199260 07.21.05 BY Printed in U.S.A.
- Page 3 Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps or glass. Warranty service is available by returning the Craftsman Snow Thrower to the nearest Sears Service Centre/Department in Canada. This warranty applies only while this product is in use in Canada.
- Page 4 SAFETY INSTRUCTIONS WARNINg DANgER This machine was built to be operated according to the rules for This symbol points out important safety instructions safe operation in this manual. As with any type of power equipment, which, if not followed, could endanger the personal carelessness or error on the part of the operator can result in serious safety and/or property of yourself and others.
- Page 5 SAFETY INSTRUCTIONS 5. Never run an engine indoors or in a poorly ventilated area. Engine exhaust 3. Check bolts and screws for proper tightness at frequent intervals to keep contains carbon monoxide, an odorless and deadly gas. the machine in safe working condition. Also, visually inspect machine for any damage.
- Page 6 SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate.
- Page 7 NOTES...
- Page 8 ASSEMBLY IMPORTANT: The snow thrower is shipped with oil and WITHOUT GASOLINE. After assembly, refer to separate engine manual for proper fuel and engine oil recommendations. NOTE: This Operator’s Manual covers several models, handle panels, lights and chute cranks are some features that may vary by model. Not all features referenced (or engines pictured) in this manual are applicable to all snow thrower models.
- Page 9 ASSEMBLY Figure 7 Figure 5 Joystick in the 1 o’clock position. Joystick Joystick Figure 8 Figure 6 NOTE: The pinion gear is located on the front of the unit below the control panel. NOTE: The joystick must be angled slightly to the right as shown Figure 6 and the arrow on the pinion gear at the top to ensure full chute rotation.
- Page 10 ASSEMBLY 9. It is important that all cables be routed through the cable guide and remain positioned on the left side of the hex rod. See Figure 10. NOTE: An extension cord may be fastened with a cable tie to the rear of the auger housing for shipping purposes.
- Page 11 ASSEMBLY Drift Cutters (If Equipped) Drift cutters should be used when operating the snow thrower in heavy drift conditions. • On models so equipped, drift cutters and hardware are assembled to the auger housing inverted. • Remove the carriage bolts and wingnuts securing the drift cutters to the housing.
- Page 12 Know Your Snow Thrower OPERATION Drive Control Drive Control Shift Lever Shift Lever Four-Way Chute Control™ Four-Way Chute Control™ Auger Control Auger Control Heated Grips (optional) Headlight Headlight Wheel Steering Control Wheel Steerin Chute Chute Engine Controls Engine Controls Assembly Assembly Choke Choke...
- Page 13 OPERATION Auger Control Four-Way Chute Control™ The auger control is located on the left handle. Squeeze the control The chute directional control is located on the left side of the dash grip against the handle to engage the augers and start snow throwing panel.
- Page 14 OPERATION Read, understand, and follow all instructions and 5. When disconnecting the extension cord, always unplug the end at the warnings on the machine and in this manual before three-prong wall outlet before unplugging the opposite end from the operating. snow thrower.
- Page 15 OPERATION To Engage Augers 1. To engage augers and start snow throwing, squeeze the left hand auger control against the left handle. Release to stop augers. 2. While the auger control is engaged, squeeze the drive control to move, release to stop. Do not shift speeds while the drive is engaged.
- Page 16 ADJUSTMENTS Read, understand, and follow all instructions and warnings on the machine and in this manual before operating. WARNING: Never attempt to make any adjustments while the engine is running, except where specified in operator’s manual. Shift Cable If the full range of speeds (forward and reverse) cannot be achieved, refer to the figure to the left and adjust the shift cable as follows: 1.
- Page 17 ADJUSTMENTS You can also check the adjustment as follows: 1. With the snow thrower tipped forward, remove the frame cover underneath the snow thrower by removing the self-tapping screws. See Figure 24. 2. With the drive control released, there must be 1/8” clearance between the friction wheel and the drive pulley in all positions of the shift lever.
- Page 18 MAINTENANCE WARNING: Before lubricating, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. Engine Refer to the separate engine manual packed with your unit for all engine maintenance.
- Page 19 MAINTENANCE To remove skid shoes: 1. Remove the four carriage bolts and hex flange nuts which secure them to the snow thrower. 2. Reassemble new skid shoes with the four carriage bolts (two on each side) and hex flange nuts. Refer to Figure 22. To remove shave plate: 1.
- Page 20 MAINTENANCE Drive Belt Replacement WARNING: Run the engine completely dry of gasoline before tipping snowthrower. To remove and replace your snow thrower’s auger belt, proceed as follows: 1. Remove the plastic belt cover on the front of the engine by remov- ing the two self-tapping screws.
- Page 21 TROUBLESHOOTING This section addresses minor service issues. To locate the nearest Sears Service Center or to schedule service, simply contact Sears at www.sears.ca. Problem Cause Remedy 1. Choke not in ON position. 1. Move choke to ON position. Engine fails to start 2.
- Page 22 PARTS LIST/PIÈCES DÉTACHÉES...
- Page 23 PARTS LIST/PIÈCES DÉTACHÉES PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 684-04106B En gage ment Han dle As sem bly RH Poignée d’entraînement CD 738-04367 Flg. Shoul der Screw .312 x 3.5: 1/4-20 Vis à épaulement 0,312 x 3,5: 1/4-20 731-04894D Lock Plate Palastre de serrure...
- Page 24 PARTS LIST/PIÈCES DÉTACHÉES NOTE: Housing may not be exactly as shown. REMARQUE : L'habitacle peut être légèrement différent. 30 in/po AU GER HOUS ING COM PO NENTS/COMPOSANTS DU LOGEMENT DES TARIÈRES SIZE AU GER HOUS ING/ AU GER AXLE/ SHAVE PLATE GEAR BOX ASS’Y/ SPAC ERS/ WORM GEAR/...
- Page 25 PARTS LIST/PIÈCES DÉTACHÉES PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 731-2643 Clean-Out Tool Outil de dégagement de la goulotte 684-04057A Im pel ler Ass'y 12 po Ventilateur 710-0347 Hex Screw 3/8-16 x 1.75 Vis à tête hex 3/8-16 x 1,75 710-0451 Car riage Bolt 5/16-18 x .75 Boulon ordi naire 5/16-18 x 0,75...
- Page 26 PARTS LIST/PIÈCES DÉTACHÉES 34 35...
- Page 27 PARTS LIST/PIÈCES DÉTACHÉES PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 710-1652 Hex Wash Hd TT Scr. 1/4-20 x .625 Vis taraudée 1/4-20 x 0,625 731-04792A Belt Cover (w/4 Way Chute Con trol) Couvre-courroie(avec comm. de la goulotte à 4 fonctions) 731-05353 Belt Cover (Std.) Couvre-courroie (Std.)
- Page 28 NOTES: For parts and/or accessories refer to customer support on page 2. Adressez-vous au «Service après-vente» à la page 2 pour ce qui concerne les pièces et/ou accessoires.
- Page 29 NOTES: For parts and/or accessories refer to customer support on page 2. Adressez-vous au «Service après-vente» à la page 2 pour ce qui concerne les pièces et/ou accessoires.
