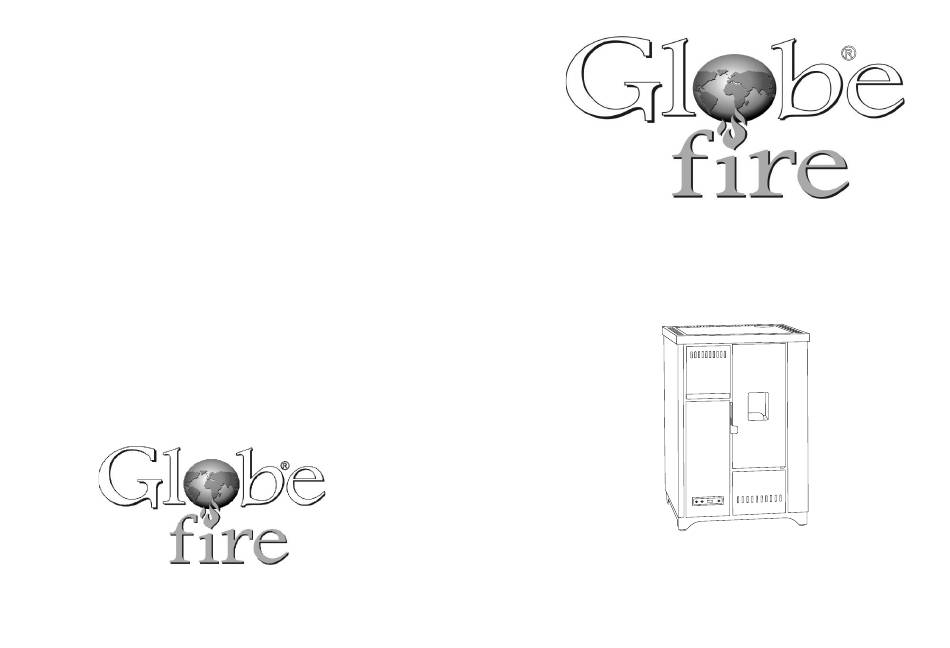

Users manual Ch. Leibfried GmbH Pellet oven Pasquale An der Bundesstraße 2 49733 Haren/Ems Germany Tel: +49(0)5932-7334784 info@globe-fire.de...
Page 2
Globe-fire Congratulations with your new stove At Globe Fire we are in the sixth generation of making fireplaces, inset fireplaces and cookers. Read the manual carefully and follow all instructions accurately. We wish you a very cosy warmth and much pleasure with your product in the coming years.
Page 3
(depending on model) ASSEMBLING INSTRUCTIONS, USER'S MANUAL AND IMPORTANT GENERAL INFORMATION ABOUT PELLET OVEN PASQUALE. TECHNICAL DATA: Pellet oven PASQUALE When installing and using this oven it is of importance to follow instructions and requirements of the manufacturer and the requirements of the home country as well as those of the European Union.
Page 4
To keep the possibility of a guarantee our advice is to use a trained Power supply specialist who will follow the current installation regulations when installing the pellet oven. 230 V AC / 50 Hz This is a paid service for which you will need to make a separate appointment. Together with our service partner we offer a maintenance contract for your oven.
Page 5
Air supply: For good combustion the appliance depends on the air in the room where it stands. It is therefore important to take other appliances into consideration which displace air, such as a ventilation system or an extractor hood. All our appliances offer the possibility of extracting air from outside with the help of an external air supply pipe.
Page 6
Type of combustion Room temperature and humidity Pellets are a solid fuel. Lighting this kind of fuel takes more time than lighting These appliances are designed for use in rooms with a normal humidity and at liquid fuel (for example oil fuel or gas). After starting up the stove the lighting temperatures of approximately +5⁰...
SAFETY REGULATIONS: 9.) When ash is still glowing there can be a danger of fire. This is why the ash may only be sucked away when you are sure there is no glow. 1.) The user is obliged to obtain information about the type of fuel allowed 10.) All flammable parts, furniture etc.
FIRST TIME USE Installation for the first time must be done by a specialised service partner - The door of the fire grate must always be kept closed, even when cold. recognized by us. If this is not followed up or any adaptations are made to the - During heating, all surfaces particularly the stove window, the door handle and oven or it is used incorrectly the guarantee is invalid.
Page 9
Details Pellet oven: Daily use Model: ……………………………………………………………………………....Before starting up the fire, check that the firegrate is free of any remains. If necessary this must be cleaned first. By pressing the – button you can see the Serial number:…………………………………………………………………....... selected temperature and by pressing the + button you can see the selected Name and address of supplier: …..…………………………….…………......
Page 10
The quality of Pellets Cleaning the fire grate and the ash pan area As mentioned before, only wood pellets may be used that comply with the stated Clean the fire grate with an ash vacuum cleaner and if necessary with a brush (but standards and certification.
Page 11
The correct use of the display: Model Pasquale M1 menu – Date and Time Tested EN 14785, 2nd Fase of the 1st BimschV Germany Press P1 until M1 appears in the display. Confirm this with the ON/OFF button Using the display, the oven is simple to operate with a few buttons. The display and (P3).
Page 12
Menu M3-Language Operating system for the user Using this menu you can select a language from the languages available. To go to the next language press P2 to scroll up and P1 to scroll down. To confirm the chosen The following is a description of the normal operational settings installed in this pellet language press the ON/OFF button (P3).
Page 13
Presence of fire: Changing the set heating capacity After the exhaust temperature has reached and passed the settings required, the During the normal use of the stove the heating capacity can be regulated as follows: system goes into the ignition mode, the sign 'flame on' appears in the display and the PTN 1: minimum capacity LED ON/OFF flashes.
Page 14
Alarm warnings: AL 4 – SMOKE EXTRACTOR FAN This alarm will be activated when the extractor fan is defect. The alarm will go off In the event of a technical failure the circuit board will react and give warning of and the signal “AL 4 smoke extractor fan”...
Page 15
PELLET STOVE FAILURES AND POSSIBLE SOLUTIONS Flue gas fan defect of dirty Contact costumer services AL 4 -- Fan defect No or not enough pellets M5 fill auger a number ---------------------------------------------------------------------------- Motherboard defect Contact costumer services No pellets by first use in auger of times ----------------------------------------------------------------------------...
Page 16
GUARANTEE : - Globe fire - Globefire Ch.Leibfried GmbH, An der Bundesstraße 2, Globe- fire provides the buyer with a guarantee within the context of the D-49733 Haren / Ems, Germany legal regulations. The guarantee period of two years begins on the date Pellet oven : EN 14785:2006 shown on the actual transfer.
