■ NOTE: The WLE-POE-R33/R7 Adapter must be used with a compatible Power
Supply Adapter when supplying power to the AirStation. Check the specifications
on Page 4 to verify compatibility.
Package Contents:
POE Receiver Adapter 1
◗
◗
Attachment Bracket
◗
LAN Patch Cable
5mm Screws
◗
◗
12mm Screws
◗
16mm Screws
◗
Rubber Feet
◗
Setup Guide
◗
Warranty Certificate
Precautions:
After properly connecting all the devices, turn ON the power to the Supply
◗
Adapter.
◗
Always connect the Supply Adapter to the Receiver Adapter's POE port.
◗
The Receiver and Supply cannot be attached by CAT5 longer then 100M.
◗
Use POE CAT5 cables (all eight wires)
◗
The products will become warm during use; this does not indicate
malfunction.
PY00-29025-DM20
Power Over Ethernet Receiver
Power-Over-Ethernet Receiver
(WLE-POE-R33 / WLE-POE-R7)

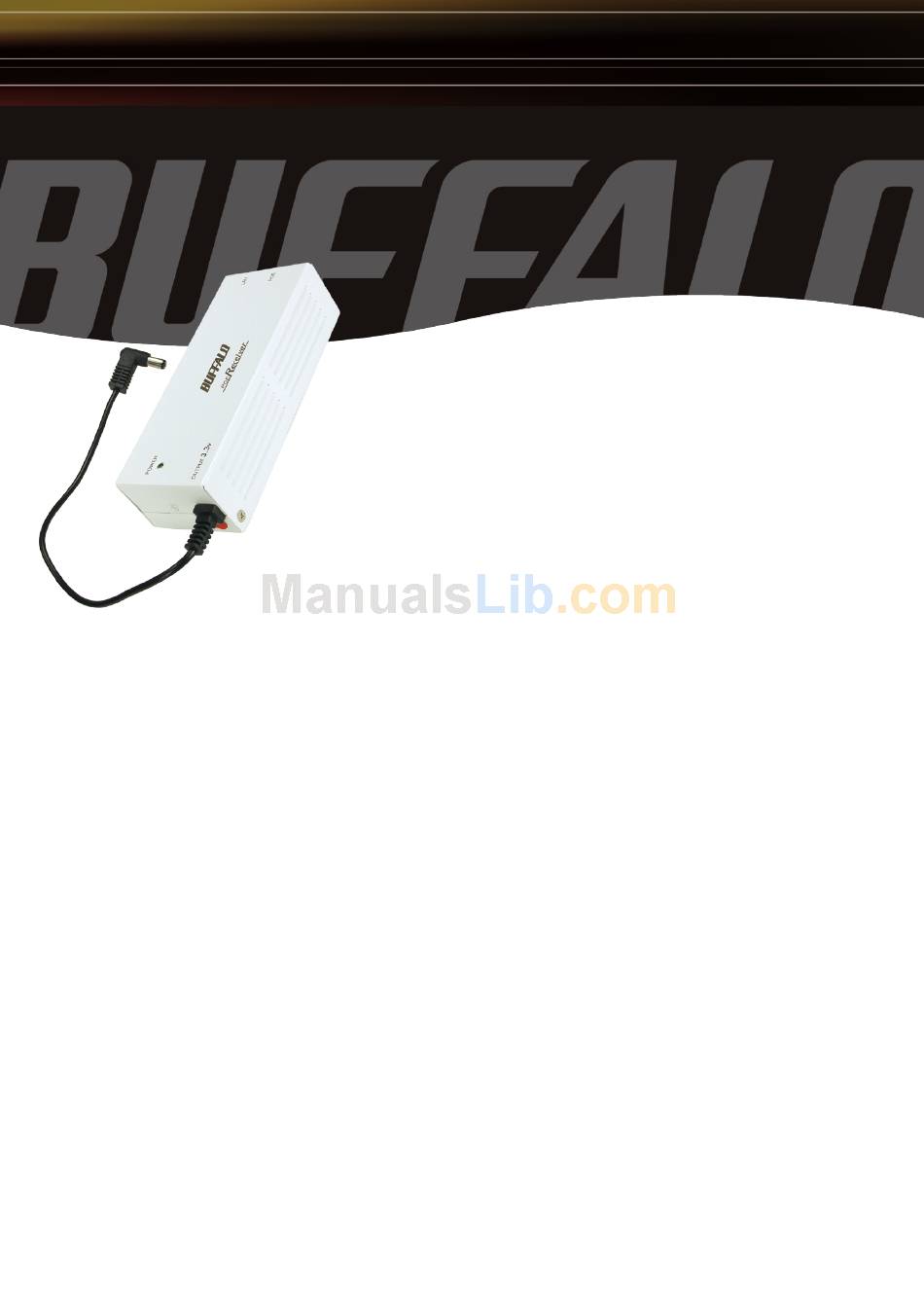

The WLE-POE-R33/R7 Adapter is an adapter
that supplies power to the AirStation via a Power
Supply Adapter (such as the WLE-POE-S). Using
this product enables the AirStation to be used in
locations that are not provided with a nearby power
supply. The WLE-POE-R33/R7 Adapter can be
installed on the AirStation Wall Mounting Kit
(WLE-WK / WLE-WK33), which are sold
separately.
(WLE-POE-R33 -OR- WLE-POE-R7)
1
1
2
(For mounting product to bracket)
2
(For mounting bracket Wall Mount Kit)
2
(For mounting bracket to wall)
4
1
(This guide)
1
Connecting to your
