Summary of Contents for Xcellon HDWC-10

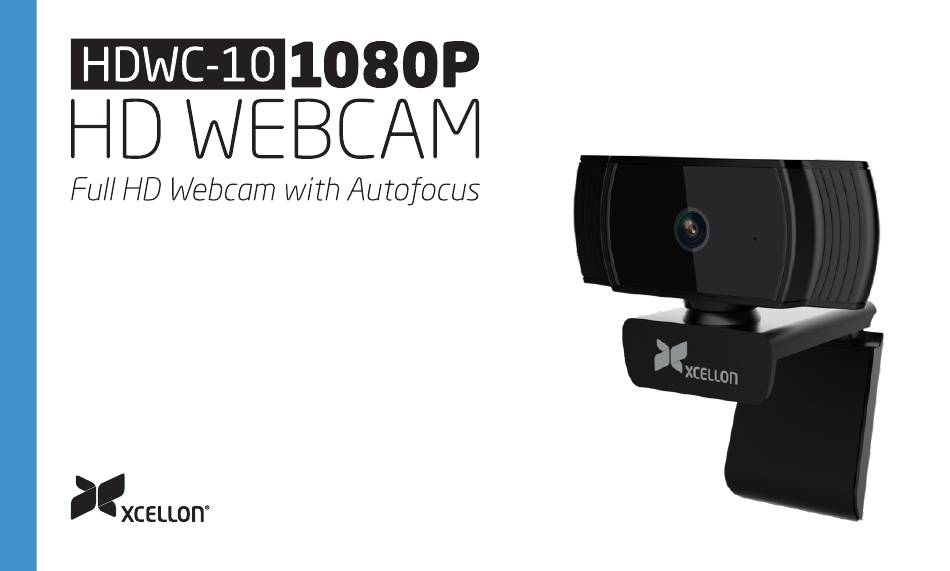

- Page 1 User Manual...
- Page 2 Thank you for choosing Xcellon. The HDWC-10 is a compact and powerful webcam that delivers full HD 1080p resolution at 30 fps to your computer for live video streams, video chats, and photos. This webcam features automatic low-light correction for dimly lit locations. A 65° field of view for a head-and-shoulders shot is perfect for personal meetings or conversations.
- Page 3 Precautions Please read and follow these instructions, and keep this manual in a safe place. » Make sure that this product is intact and that there are no missing parts. » » Keep this unit away from water and any flammable gases or liquids. »...
- Page 4 Overview HD autofocus lens Adjustable clip/tabletop base Microphone USB cable LED indicator lights...
-
Page 5: System Requirements
System Requirements Minimum Requirements 1/4-20 tripod socket · 1 GHz Intel® Core™2 Duo Ballhead · 512 MB RAM · 200 MB free HD space Recommended System Requirements for Video Recording · 3.0 GHz Intel® Core™2 Duo · 2 GB RAM... -
Page 6: Setting Up The Webcam
Setting Up the Webcam Monitor/Laptop Mounting Unfold the clip so it fits over the top of your monitor or laptop screen. For a secure fit, adjust the clip by pressing it against the back of your device. Desktop Use Fold in the clip so it forms a flat surface, and place it on a desk or tabletop. - Page 7 Tripod Mounting With the clip folded in, use the integrated socket to screw the webcam onto a tripod with a 1/4-20 stud. Aiming the Webcam The webcam features a ballhead at the base of the camera. Once the webcam is mounted, swivel or turn the camera to aim it and level the image.
-
Page 8: Connecting To A Computer
Connecting to a Computer Plug the USB connector into an available port on your computer. Plug-and-play support will let your computer instantly recognize the webcam. If your computer does not instantly recognize the webcam: Try plugging the webcam into a different USB port. If the computer still doesn’t recognize the webcam, restart the computer. -
Page 9: Specifications
Specifications Sensor General Supported 320 × 240 Focus Type Auto Resolutions 640 × 480 Focus Range 2.8 in. (7 cm) to ∞ 800 × 600 Host Connection USB Standard-A (USB 2.0) 1280 × 720 Power Source Bus powered 1280 × 960 Low-Light Correction 1920 ×... - Page 10 Specifications Microphone Microphone Omnidirectional Signal to Noise Ratio >48 dB Voice Pickup Range 9.8 to 16.4 ft. (3 to 5 m) Physical Lens Material Glass Attachment Method Clip, tripod Housing Material Plastic Dimensions (W×D ×H) 2.9 × 0.8 × 1.1 in. (7.5 ×...
-
Page 11: One-Year Limited Warranty
One-Year Limited Warranty This Xcellon product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion,...
