modway EEI-3305 Quick Start Manual

EEI-3305

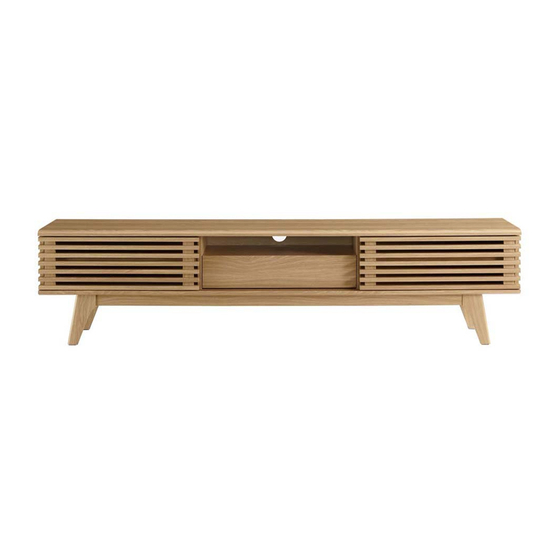

TV Stand
Thank you for purchasing the MODWAY
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the TV Stand, we recommend that
padded area, in the room that it is intended for. Approximate assembly time: 60 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Hardware :
A) B)
Cambolt/Metal
Ø 6 x 35 mm x 12
F) G)
Rell/Metal
M 6 x 10.5 mm
250 mm x 1
K) L)
Key/Metal
L 4 x 1
P) Q)
Screw/Metal
M 3.5 x 15.5 mm x 12
U) V)
Stoper/Plastic
42 x 14 x 8 mm x 2
Customer Service 908-368-1025︱
TV STAND !
C)
CamLock Big/Metal
Ø 15 mm x 10 Ø 12 mm
H)
Screw/Metal
x 18 M 3.5 x 13 mm
M)
Screw/Metal
5.5 x 35 mm x 4 5.5 x 45 mm
R)
Foam Pad/Spon
25 x 25 x 2 mm x 4
Ø 8 x 19 mm
W)
Screw Cup/Plastic
Ø 15 mm x 6
www.modway.com
it is assembled by two adults, on a carpeted or
D)
CamLock Small/Metal Dowel Big/Wood
x 2 Ø 8 x 30 mm
I)
Screw/Metal
x 4 M 8 x 39 mm
N)
Screw/Metal
x 4 Ø 5 x 15 mm
S)
Pin Sliding Top/Plastic
Pin Sliding Bottom/Plastic
x 4 Ø 8 x 16 mm
X)
Anti-Deflection Bar/Metal
x 1 Screwdriver (Not Include)
E)
Dowel Small/Wood
x 40 Ø 6 x 30 mm
J)
Screw/Metal Screw/Metal
x 4 M 7 x 50 mm
O)
Shelf Pin/Metal Wedge/Plastic
x 8 9 x 14 x 10 mm
T)
Buffer/Rubber
x 4 Ø 8 mm
x 1
x 2
x 6
x 12
x 1
Page 1 of 13
