Summary of Contents for Show CS-304

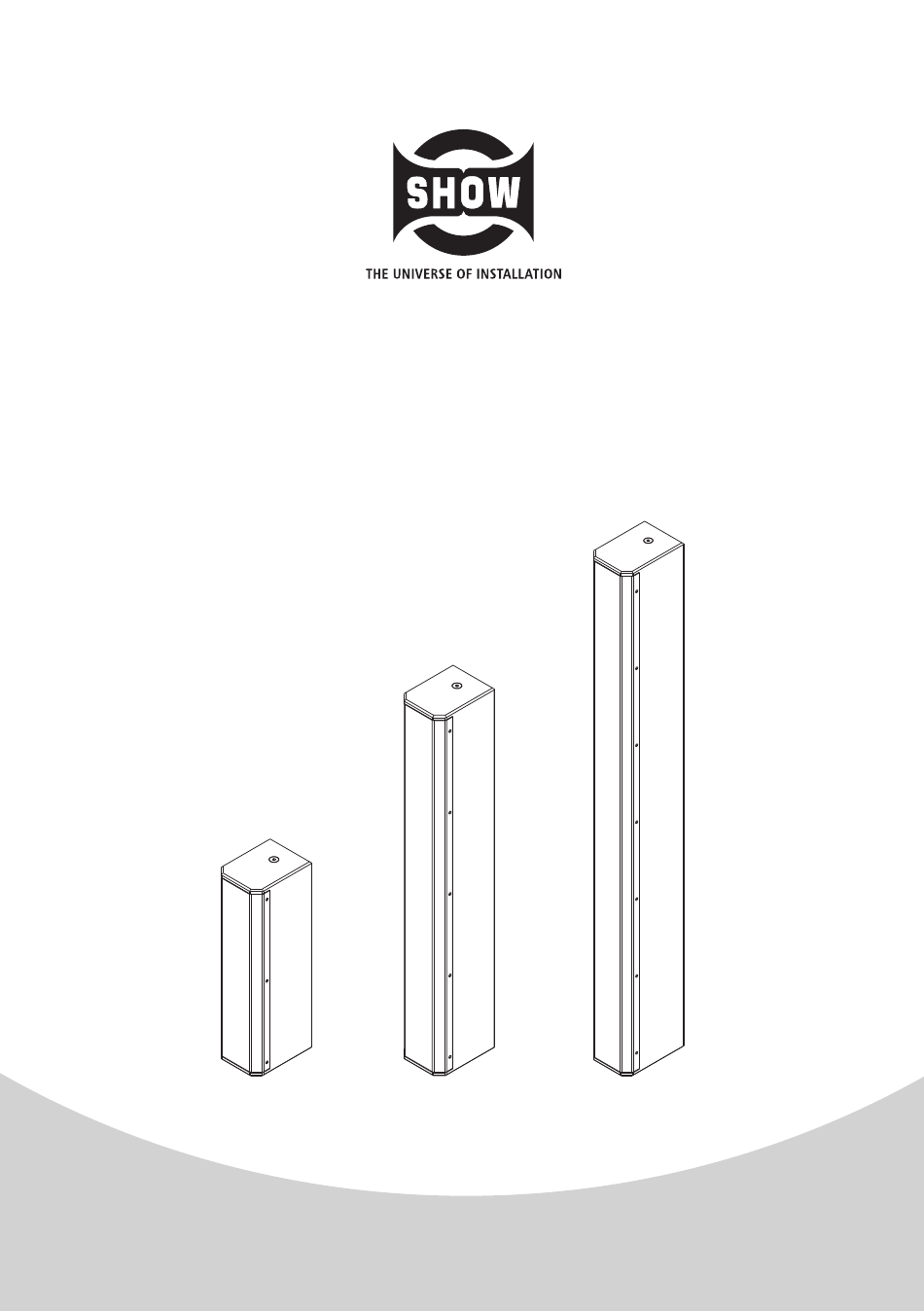

- Page 1 User's Manual COLUMN ARRAY SPEAKERS CS-304 CS-308 CS-312...
-
Page 2: Table Of Contents
INDEX SAFETY RELATED SYMBOLS WARNING INTRODUCTION INSTALLATION ACCESSORY BACK PANEL DESCRIPTION SYSTEM CONNECTION PLATE TECHNICAL SPECIFICATIONS... -
Page 5: Introduction

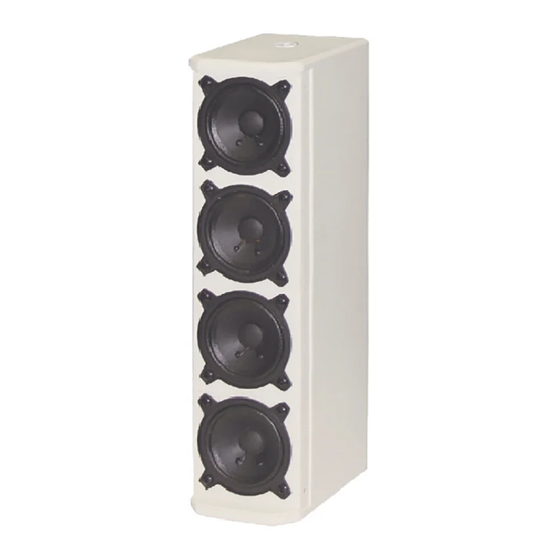

INTRODUCTION CS-308 is a professional column array speaker developed by SHOW. With 1.0mm mesh and 0.8mm grille, it can effectively protect unit from external damage and prevent dust into the speaker. Cabinet is made by plywood with light weight and solid structure. -
Page 6: Installation
INSTALLATION CS-304 / CS-308 1) Make sure the expansion screws of mounting brackets can filmy support the product weight before installation to avoid causing the injuries of the facilities and a worker if there is a falling. 2) Make sure the bracket is installed in vertical position and install expansion screw in the identified location. - Page 7 CS-312 1) Make sure the expansion screws of mounting brackets can filmy support the product weight before installation to avoid causing the injuries of the facilities and a worker if there is a falling. 2) Make sure the bracket is installed in vertical position and install expansion screw in the identified location.
-
Page 8: Accessory
ACCESSORY • 180 ° x 30 ° bracket • L bracket BACK PANEL DESCRIPTION CS-304B/CS-304W POWER SELECTIONS 1) Do not use the tap for 70V input 2) Do not use the tap for 100V input INPUT... - Page 9 CS-308B/CS-308W POWER SELECTIONS 1) Do not use the tap for 70V input 2) Do not use the tap for 100V input INPUT CS-312B/CS-312W POWER SELECTIONS 1) Do not use the tap for 70V input 2) Do not use the tap for 100V input INPUT...
-
Page 10: System Connection Plate
2. CH1/CH2 output select at " 100V" position, both loaded with rated 100V speaker; 3. Select "L/H CUT" at " ON" position, to preventlow frequency protection and improve the transmission efficiency. Applicable to Public Address System; CS-308 / CS-304 / CS-312 CS-308 / CS-304 / CS-312 Speaker Cable-L... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Model Passive CS-304B / CS-304W Column Array Speaker System Type 70V/100V Input Voltage Transformer selectable Power 5W /10W /20W / 40W 60W RMS, 120W Program Power capacity (8Ω) 1000Ω / 500Ω / 250Ω / 125Ω System Impedance 100V 2000Ω... - Page 12 Model Passive CS-312B / CS-312W Column Array Speaker System Type 70V/100V Input Voltage Transformer selectable Power 15W /30W /60W / 120W 180W RMS, 360W Program Power capacity (8Ω) 70V 333Ω / 167Ω / 83Ω / 41Ω System Impedance 100V 667Ω / 333Ω / 167Ω / 83Ω Sensitivity (1w/1M) 99dB 125dB (calculated by 8ohms )
- Page 13 NF04900-1.1...
