Summary of Contents for AlcoMate Revo TS200

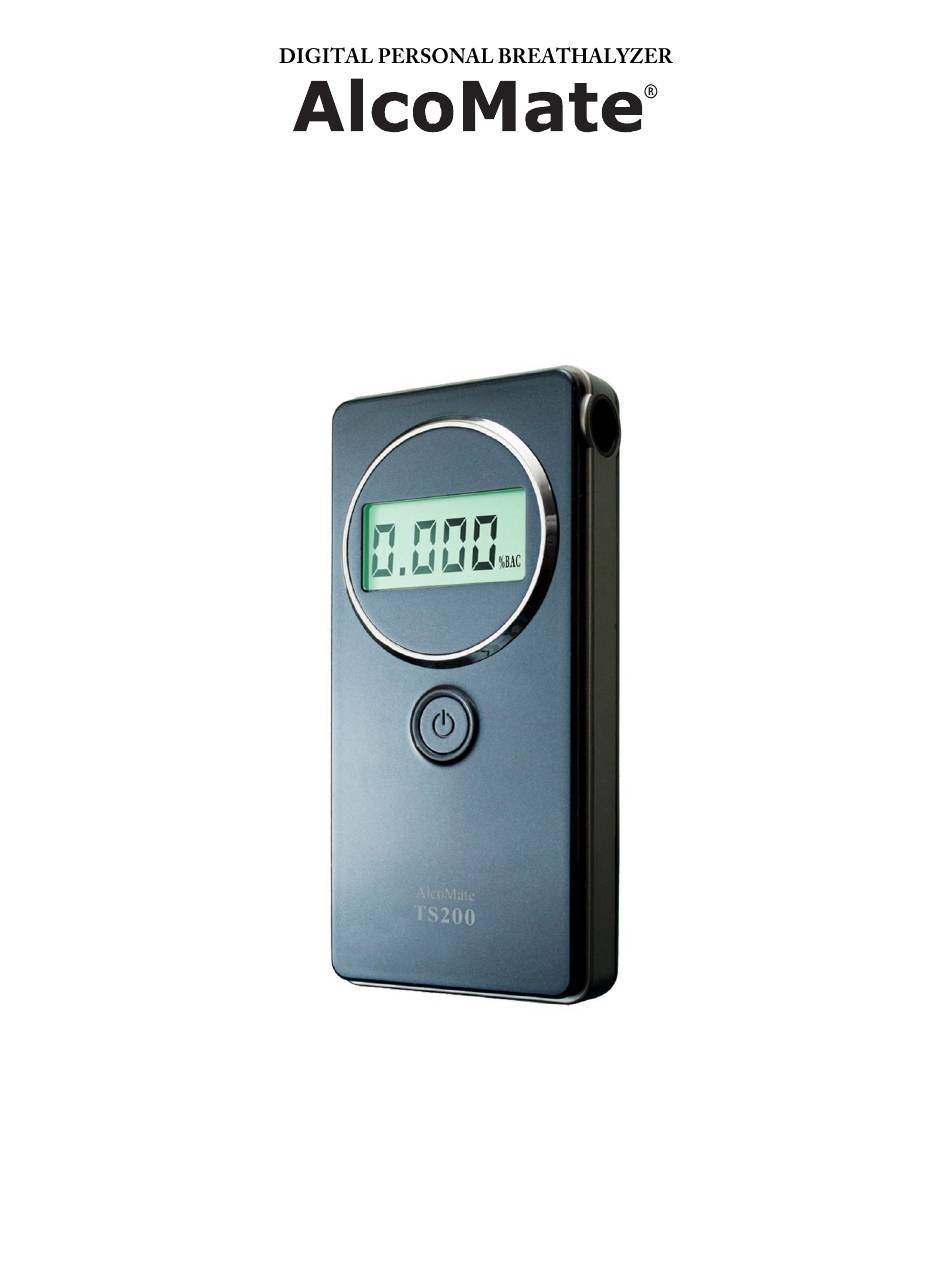

- Page 1 Revo (Model TS200) Revo (Model TS200) Operator's Manual...

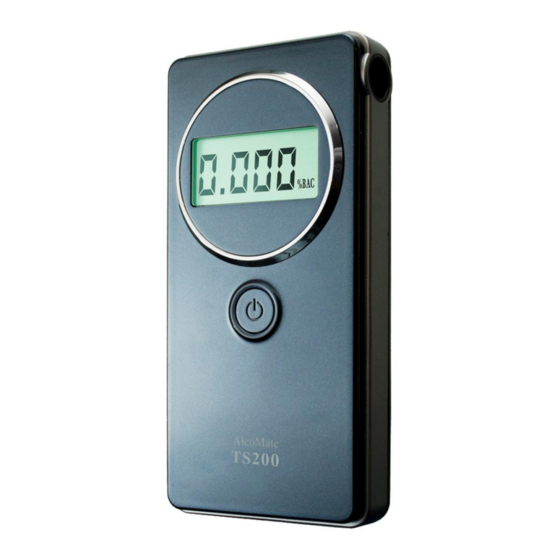

- Page 3 Results Power Button The AlcoMate Revo (Model TS200) is a breath alcohol tester that calculates alcohol content in g/dL (grams of alcohol per deciliter of blood, commonly called “%BAC” in the United States) based on a breath sample taken by the device. The Model TS200 features top-grade fuel-cell alcohol sensing accuracy in a compact, easy-to-use portable design.
- Page 4 - Rear (Battery) Cover Removal - Carefully use a flathead screwdriver (approx. 1/8” head width) to pry open the rear cover at the notch located at the bottom. You can then fully remove the cover by separating it from the device along one of the longer (vertical) edges.
- Page 5 - Device Setup and Operation - 1. If batteries are not already installed, remove the rear cover of the device using the method described on the previous page, then insert two 1.5V AAA batteries (included) into the battery slot. 2. Snap the rear cover back in place. 3.
- Page 6 Important Sensor Module Details The shelf life of an unused but properly stored sensor module is 12 months; once the sensor module is installed, it should be replaced within 12 months of installation or approximately 1000 tests, whichever comes first. Proper storage includes avoidance of temperatures beyond operating range (10-40 degrees Celsius), and avoidance of moisture.
-
Page 7: Troubleshooting
WARNING DISPLAY "Err9": Power source is too weak to complete operation. Please replace batteries with a new pair. For the other troubles, please contact AK GlobalTech at support@alcomate.net, along with your error codes and photos if available. - Specifications - Alcohol Sensor Advanced Electro-Chemical Fuel-Cell Detection Range 0.000 -0.400 g/dL (Accuracy to 0.02) -
Page 8: Manufacturer's Warranty Coverage
- Limited Warranty - Manufacturer's Warranty Coverage AK GlobalTech Corporation warrants the Revo (Model TS200) to be free from defects in workmanship or material, excluding spent or used sensor modules, under normal use for one (1) year from the date of purchase. -
Page 9: Technical Support
This Limited Warranty is governed by and construed under the laws of the country in which the product purchase took place. Technical Support AK GlobalTech Corporation 21 Grand Ave., Suite 102, Palisades Park, NJ 07650 800-943-1016 Toll-Free (9A-6P EST) 201-943-9411 Office (9A-6P EST) 201-943-8828 Fax http://AKGlobalTech.com support@AlcoMate.net...
