Summary of Contents for IMV VP-420

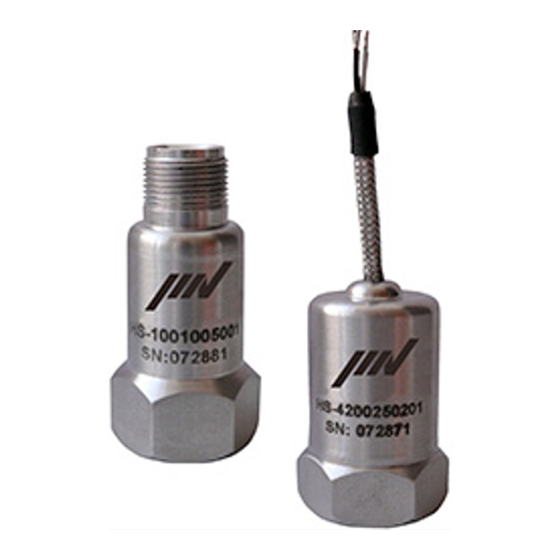

- Page 1 Specifications and Instruction Manuals Direct Output Vibration Pick-up (4-20mA Velocity Type) Model: VP-420 IMV CORPORATION Manufacture: Specification No.: TVE-5-5676 Total Page: Revision Date: Dec, 2018 VP-420 Specifications Rev4.2 － 1 －...
-
Page 2: Table Of Contents
5. Outline Dimensional Drawing......................5 6. Vibration Pickup Mounting Studs..................... 6 7. Frequency Response ........................... 6 8. Outline View of Connector Cable ...................... 7 9. Connection Method / Instruction Manual ..................8 10. Warranty............................8 VP-420 Specifications Rev4.2 － 2 －... -
Page 3: Outline
(3) This product has the capability of interfacing direct into PLC, BMS or 4-20mA input module. 3. Typical Applications (1) Vibration Sensors of Vibration Monitoring systems for manufacturing plants or machine tools. (2) Built-in vibration sensors for fans, motors, Compressors, etc. VP-420 Specifications Rev4.2 － 3 －... -
Page 4: Specifications
Length of Output Cable □ Quick Fit: Glue face Mounting Studs □ Quick Fit: M8 Male □ Quick Fit: M6 Male □ Quick Fit: φ25.4mm Pole Piece Pot Magnet Detail Reference: “6. Vibration Pick-up Mounting Studs” VP-420 Specifications Rev4.2 － 4 －... -
Page 5: Outline Dimensional Drawing
Pin4： 0V (Black) W5/8 depth 6mm Connector Shape HEX 28 Sensor Body □ Water-Resistant Type φ 5.2 White： 15 to 30VDC φ 27.5 Black： 0V Silver Cable W5/8 depth 6mm HEX 28 Sensor Body VP-420 Specifications Rev4.2 － 5 －... -
Page 6: Vibration Pickup Mounting Studs
□ Quick Fit: Glue face □ Quick Fit: M8 Male W5/8 W5/8 □ Quick Fit: φ25.4mm Pole Piece Pot Magnet □ Quick Fit：M6 Male W5/8 W5/8 25.5 (Unit: mm) 7. Frequency Response Frequency Response (dB) Frequency (Hz) VP-420 Specifications Rev4.2 － 6 －... -
Page 7: Outline View Of Connector Cable
8. Outline View of Connector Cable φ15 VP-420 Specifications Rev4.2 － 7 －... -
Page 8: Connection Method / Instruction Manual
(A) Any damage and breakdown caused by natural disaster such as fire, earthquake, flood, lightning damage. (B) Any transporting, moving, or dropping which does not related us after finishing our delivery. (C) Any error operation, unusual power supply input, and the fault caused by disassembling/repairing/modifying by customer. VP-420 Specifications Rev4.2 － 8 －...
