ISYGLT IN-04U Technical Data/Instruction Manual

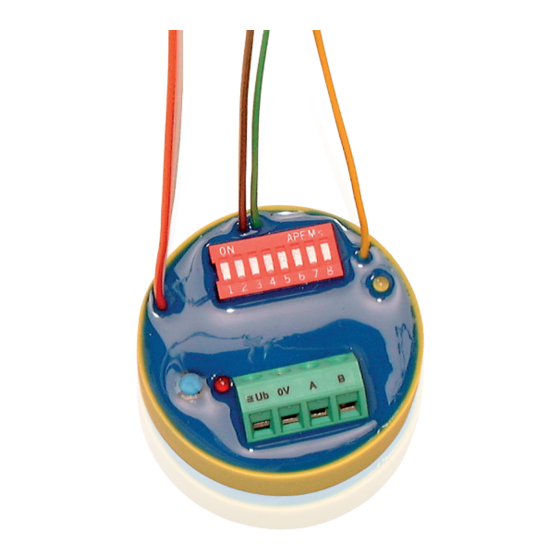

Flush-mounted transmitter module
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

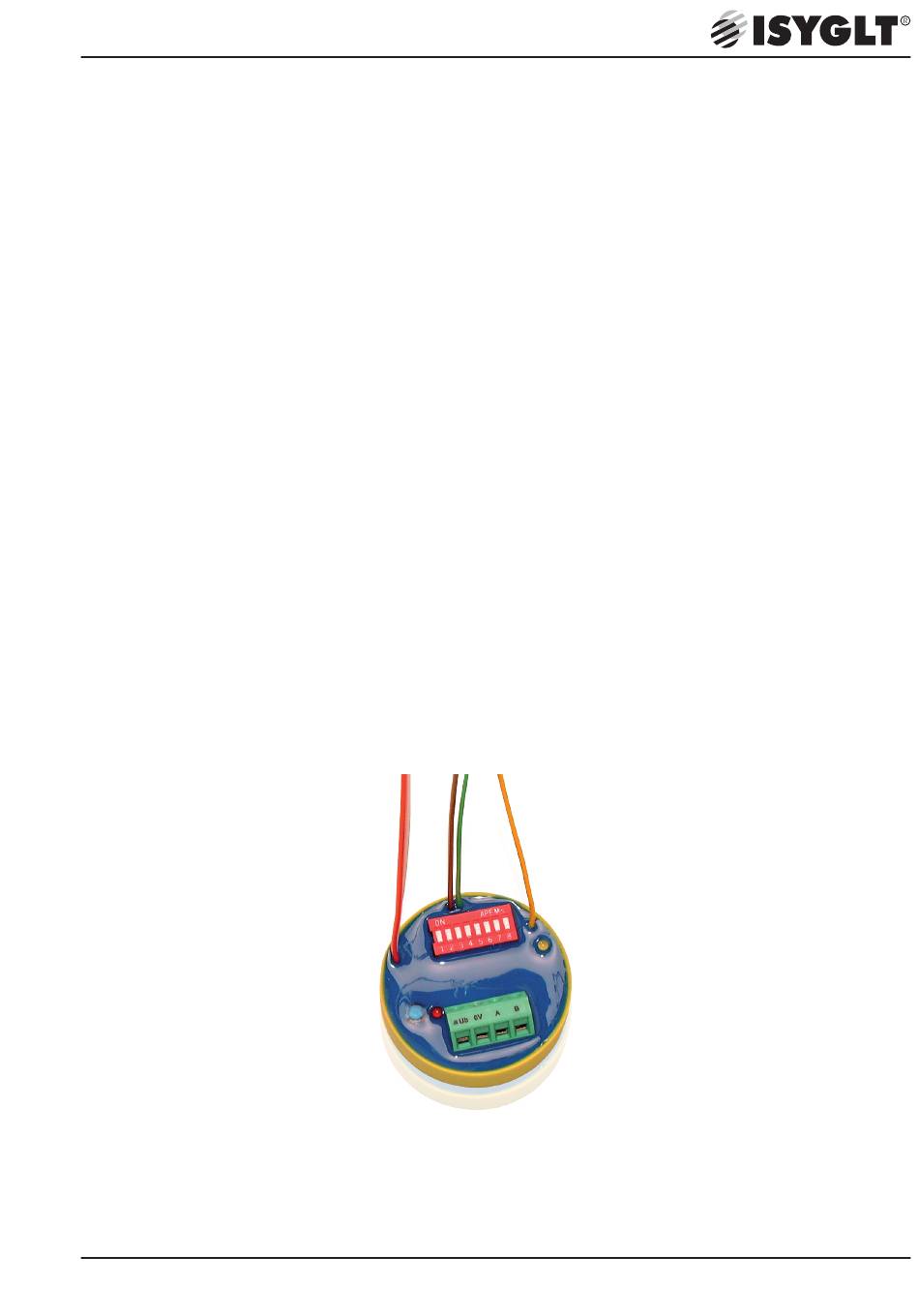

Technical Data / Instruction Manual
IN-04U
Article no. 80024040
Flush-mounted Transmitter Module
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN-04U and is the answer not in the manual?

Questions and answers

Summary of Contents for ISYGLT IN-04U

  • Page 1 Technical Data / Instruction Manual IN-04U Article no. 80024040 Flush-mounted Transmitter Module Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.

  • Page 3: Safety Instructions

    Protect module from humidity • ponents with tested standard plug connections, as well as operation and configuration of the ISYGLT module may only be carried out by In addition to these safety instructions, you must also observe trained staff. the special safety instructions listed in the individual chapters for the individual acts.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.

  • Page 5: Product Description

    9. Product description The flush-mounted IN module is used to connect conventional push buttons and switches to the subnet. With the module 4 commands can be transferred to the BUS system. The buttons/switches are connected by means of wires. Inputs / Outputs •...

  • Page 6: 10. Technical Data

    10. Technical data Type designation IN-04U Article no. 80024040 Operating voltage 12-27V DC Current consumption 20mA Inputs 12-30V DC 5mA (potential-free contact) via optocoupler (4.7 kOhm) Subnet (RS-485) max. 5.6V limited by Z-diodes Dimensions DxH 50x18mm Weight approx. 90g Connection screw terminals 2.5mm²...
  • Page 7 11. Wiring diagram +24V BUS-A BUS-B ISYGLT-IN-04U Address 2 3 4 5 6 7 8 Art. no.: 80024040 Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de...
