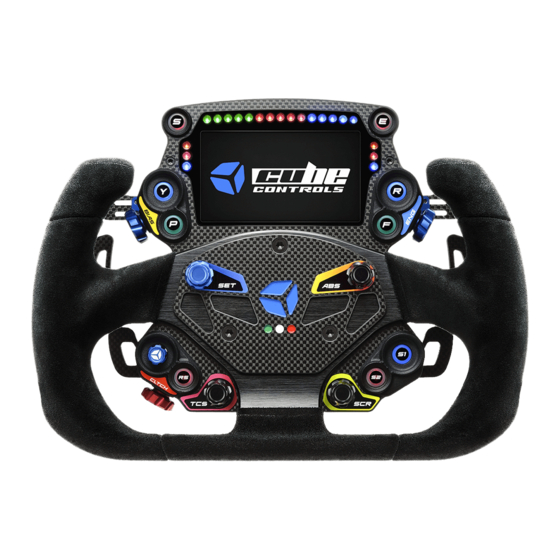

- Page 1 User Guide GT-X eSports Racing Wheel...
- Page 2 Due to continuous improvement, the actual product may differ from the manual. This manual is for reference only. For info or support contact us at hello@cubecontrols.com or visit us at www.cubecontrols.com...
- Page 3 S A F E T Y N O T I C E Please read the Manual carefully before you use the racing wheel. Please do not open the racing wheel, otherwise the supplier will not afford warranty service. This product does not have waterproof function, please keep it away from rain, moisture and other items containing liquid such as vape, cup and so forth.
- Page 4 I N T E R F A C E I N T R O D U C T I O N DOWNSHIFT: 2 UPSHIFT: 1 4 WAY POV SWITCH PUSH: 29 CLUTCH PADDLE LEFT CLUTCH PADDLE RIGHT LEFT CLUTCH ADJ...
- Page 5 Operating the launch control system: The maximum value of the left clutch paddle can be adjusted with the respective thumb knob. Therefore, if the clutch knob is set in the middle of its travel, when fully depressing the left clutch paddle, its value will go from the minimum to the value set by the clutch knob, which is middle in this example.
- Page 6 U S B C O N N E C T I O N Connect the steering wheel by only using the provided cable. Please note that the wheel connector it’s keyed as the picture below, so it fits only one way. Once the plug it’s correctly seated into the body receptacle, secure it by turning the retaining ring as bottom right picture.
- Page 7 C O N N E C T I N G T H E W H E E L Each GT-X steering wheel is provided with a dedicated Y style splitter USB extension cord. User must use this cable to connect the GT-X wheel to your pc, otherwise if plugged directly to a standard front/back panel USB port it might not work as expected due to the port not being able to supply enough power.
- Page 8 B E F O R E F I R S T U S E The Formula CSX steering wheel needs the Ultimate Game Tech (UGT) software to display data streamed from the simulator. It’s also a needed tool useful to customize and configure various options. It can be downloaded from ultimategametech.com On the same website, there is a quick introduction on the Layout Generator, and a useful general guide on the UGT software.
- Page 9 Adjusting shift paddles activation point Introduction: Although all the racing wheels are already tested and should work correctly straight out the box, you might need to adjust the shifter sensor activation point for a correct use on your setup. If the paddles are already set correctly, you may skip these steps.
- Page 10 On the left side of the new window as highlighted in the next screen- shot there is the setting you need to adjust, “Digital Switch Point”. Usually the ideal value is 50, and all GT-X steering wheels are factory programmed with such a value. If for some reason you are experiencing the shifter button not being recognized properly you must...
- Page 11 W H E E L I N S T A L L A T I O N Our universal hub on the back of the wheel body allows the user to install various adapter, or even connect it directly to your FFB base. Highlighted in blue the M5x0.8 metric holes.
- Page 12 P A D D L E S A D J U S T M E N T Shift paddles can be easily adjusted to better suit your hand size and driving preferences. T10 drive needed. Length can be adjusted by slightly loosening the two screws highlighted in the right picture, and sliding forward/backwards the...
- Page 13 R-spec shifters features an adjustable stop end to better suit driver preferences. Simply loosen the two screws as pictured on the right and slide the stop end upwards/downwards. Once the adjustment has been made, make sure to tighten the screws.
- Page 14 Make sure your rig is grounded correctly. Main wheel body and hub are connected to the wheel own USB ground. Each wheel comes with an auxiliary USB connector that comes out from the main hub. This will be used with our Cube Controls quick release kit.
