Summary of Contents for UltraFire UBH1

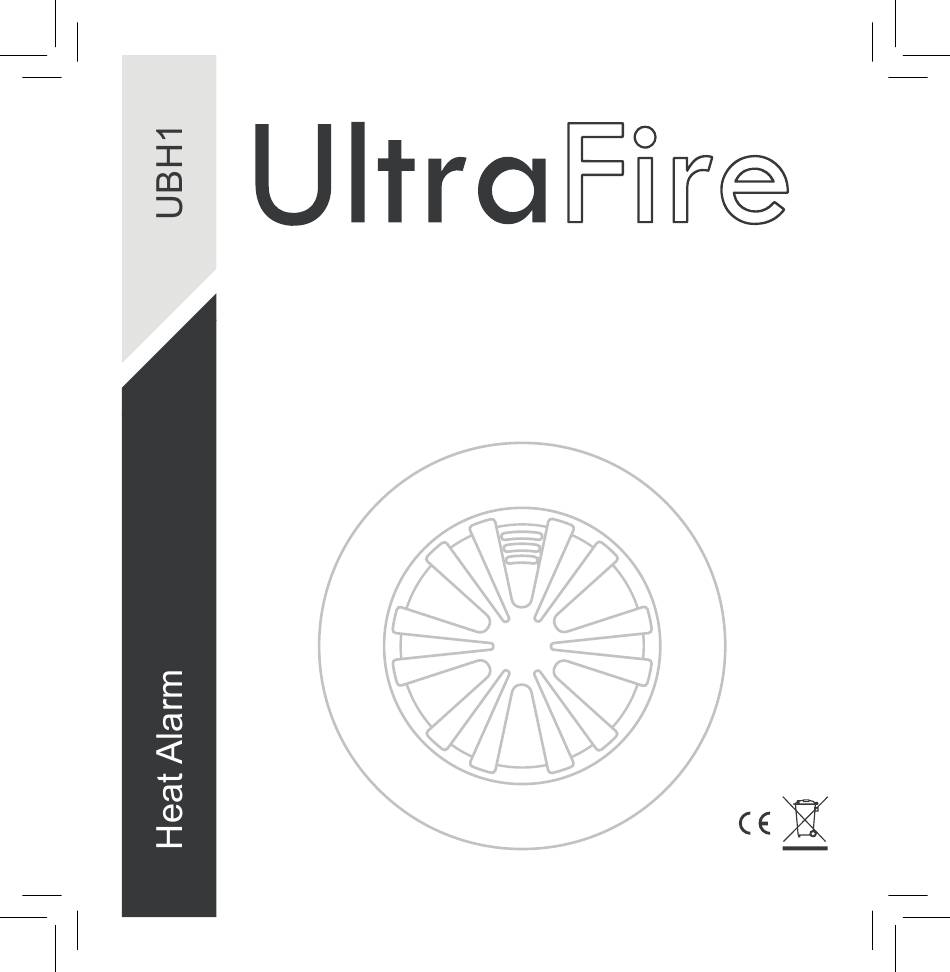

- Page 1 USER MANUAL UBH1 HEAT ALARM...
-
Page 2: Table Of Contents
Index Overview..................Product Specification..............Suitability .................. Silence / Do Not Disturb Mode..........Alarm Signals................Status Indicators / Installation............ Placement.................. Installation Procedure..............Maintenance................9/10 Troubleshooting................. Fire Safety Advice..............What to Do in Case of Fire............Warranty Information..............14/15 Contact Information.............. -
Page 3: Overview
Overview This heat alarm is a fire detection and alarm device which gives off an audible and visual warning when the ambient temperature reaches 54°C to 70°C. These temperatures are abnormal in a typical setting and thus are likely to be caused by an actual fire. -
Page 4: Product Specification
Product Specification • Sensor Type: Fixed Temperature • Silence Time: Approx. 10 minutes • Class: A2 (Trigger Temperature 54°C • Do Not Disturb Time: – 70°C) Approx. 8-10 hours (see Additional • Battery Specification: Features) ◦ Voltage: DC 3V • Certified to: BS 5446-2:2003 ◦... -
Page 5: Suitability
Suitability UltraFire’s range of battery-powered fire detection and alarm devices are designed to meet BS 5839-6 Grade F2 requirements. These alarms are only intended for use in single household premises which are permitted to use battery-powered alarms. Local Building Regulations, legislation, or other requirements may specify mains-powered alarms, in which case this product is not suitable. -
Page 6: Silence / Do Not Disturb Mode
Alarm Silence Mode WARNING: Before silencing an active alarm you must ensure the environment is safe. Do not silence the alarm in the event of an actual fire, as this may prevent other occupants from evacuating. When in alarm mode, pushing the test button will silence the unit for approximately 10 minutes. -
Page 7: Alarm Signals
Alarm Signals Test Alarm Heat Detected Pattern Alarm Pattern 1. Chirp 3 times with red 1. Chirp 3 times with red LED flash LED flash 2. Pause 1.5s 2. Pause 1.5s 3. Repeat from the 3. Chirp 3 times with red beginning LED flash 3. -
Page 8: Status Indicators / Installation
Status Indicators • During standby operation the red LED will flash once every 32 seconds. • When the battery fails or a low battery is detected, the alarm will chirp once every 32 seconds in conjunction with the red LED flashing. •... -
Page 9: Placement
Placement 300mm UltraFire Heat Alarms must be CEILING MINIMUM installed on the ceiling, at least 30cm from the nearest wall, light fitting, or other obstruction. BEST NEVER HERE HERE These alarms should be installed no more than 150mm vertically below... -
Page 10: Installation Procedure
Installation Procedure WARNING: The label on the alarm must not be removed as it shows important information about the product. Check the desired installation position for wires, pipes or other obstructions that would be dangerous to drill into. Hold the baseplate against the ceiling at the desired installation position. -
Page 11: Maintenance
Maintenance Testing Test your alarms to ensure proper operation once per week by holding the test button. If there is no sound output it means that the alarm is faulty, the batteries are flat, or that the installation procedure may not have been followed correctly. - Page 12 Maintenance Battery Replacement Twist the alarm anti-clockwise to remove it from the baseplate. Remove the old battery. Connect and insert a new battery, ensuring correct polarity. Place the alarm back on the baseplate, twisting clockwise. Hold the test button until the test pattern sounds. This may take 5 - 10 seconds.
-
Page 13: Troubleshooting
Troubshooting Problem Action Alarm does not sound when Remove alarm head from tested. baseplate. Check batteries are installed properly and have power. Alarm chirps with the red LED Replace batteries as described in the Maintenance section. flash about every 32 seconds. Heat alarm sounds unwanted Problems caused by high alarm intermittently. -
Page 14: Fire Safety Advice
Fire Safety Advice Familiarise yourself with and follow the national and local regulations regarding selection and installation of the different kinds of smoke and heat alarms. Plan Your Escape If an alarm sounds but you did not push the test button and it is not a fault tone then it is likely a dangerous situation has developed in the property. -
Page 15: What To Do In Case Of Fire
NOTE: These guidelines will assist you in the event of a fire; however, UltraFire cannot predict the exact situation of any home fire. Creating your own escape plan based on your specific premises and occupants is the best way to ensure safe evacuation. -
Page 16: Warranty Information
Warranty Information Safelincs warrants to the original purchaser that its enclosed UBH1 battery-powered alarm, under normal domestic use and service, will operate as described and be free from material and workmanship defects for a period of five years from the date of purchase. - Page 17 Returning Your Alarm Contact either the original retailer or UltraFire before attempting to return your alarm. Pack the alarm in a well-padded box, tape securely and affix an appropriate address label. Send the alarm either to the retailer you purchased from or to the manufacturer if still under warranty.
-
Page 18: Contact Information
33 West Street, Alford, LN13 9FX 0800 978 8262 support@ultra-fire.co.uk www.ultra-fire.co.uk © 2020 Safelincs All Rights Reserved DOC 1236 Version 2.0...
