MYAMPLIFIERS.COM
PHONE SIGNAL BOOSTER
Nikrans NS-2500GD
Calls/GSM / 3G / 4G/LTE
Coverage: 2000 m²
Freq.: 900, 1800 MHz
https://www.myamplifiers.com/repeater-73/

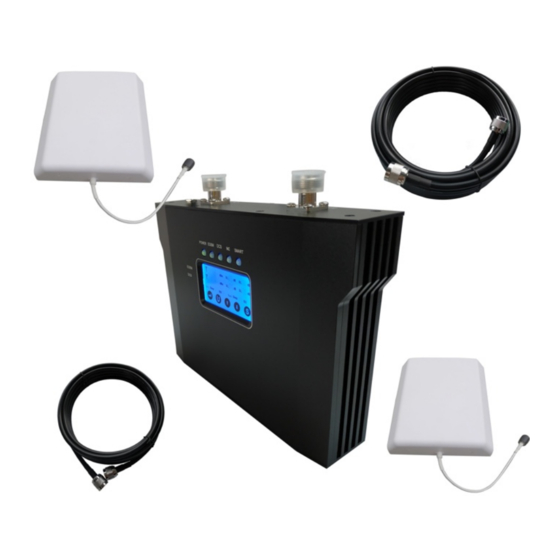

Nikrans NS-2500GD
Free Support
3-YEAR warranty & service
30-DAY return policy
3-7 business day delivery
Need help?
Buyer's Guide
contact@myamplifiers.com
+(44)8000485044
(Sales)
Indoor Antennas /
Outdoor Antennas
SPECIFICATION
Indoor coverage: 2000 m²
Up-link freq: 880-915MHz & 1710-1785 MHz
Down-link freq: 925-960 & 1805-1880 MHz
Up-link Gain: 65 dB
Down-link Gain: 70 dB
Power Output: Input AC90~264V,output
DC12V/3A
Working t °C: -25/+55
Humidity: 5 - 95 %
Size (mm): 210*145*44mm
Booster Weight: 2.3 kg
dBm: 20 dBm
PACKAGE
Cables
Power supply
Safety for Human Health
Conformity to CE and RoHS standards
Full kit ready to use
Full duplex mode (improvement of outcoming
and incoming signal)
User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nikrans NS-2500GD
Summary of Contents for Nikrans NS-2500GD
- Page 1 MYAMPLIFIERS.COM PHONE SIGNAL BOOSTER Nikrans NS-2500GD SPECIFICATION Indoor coverage: 2000 m² Up-link freq: 880-915MHz & 1710-1785 MHz Down-link freq: 925-960 & 1805-1880 MHz Up-link Gain: 65 dB Down-link Gain: 70 dB Power Output: Input AC90~264V,output DC12V/3A Working t °C: -25/+55...
- Page 2 PRODUCT DESCRIPTION NS2500 GD is a dualband cellular repeater that amplifies a cell phone signal at two frequencies at the same time. The repeater works at standard GSM 900MHz and 1800 MHz frequency bands and can be used in Europe, Asia, Australia, Africa and Canada.
- Page 3 INSTALLATION GUIDE Fix an outdoor antenna (outside the window, on the roof or wall of the building) and connect it to the booster box using a cable. Fix an indoor antenna on the ceiling and connect it to the booster box using a cable. Connect the power supply to the booster box and plug it into a power socket.
