Summary of Contents for InWin Jupiter AJ140
- Page 1 User Manual...
- Page 2 Product Video Information Jupiter Series Product Video Jupiter Series Installation Video...

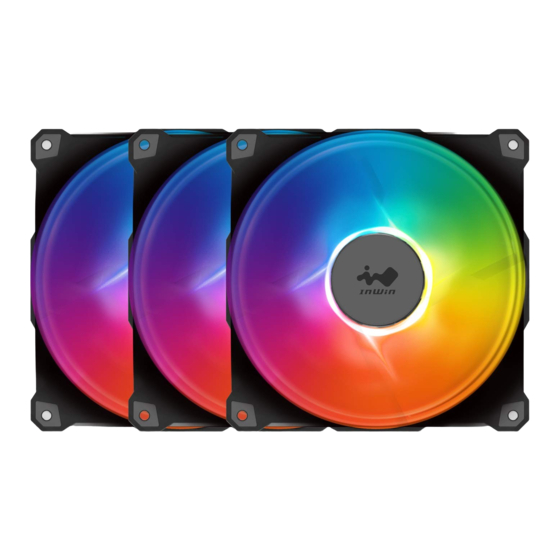

- Page 3 Product Story Specially designed for RGB enthusiasts who desire superior performance from their case fans. The Jupiter AJ140 fans feature nine blades, sleeve bearings with a long lifespan, ARGB LEDs with 16.8 million color options and a one-click ARGB Controller.
-
Page 4: Package Contents
Package Contents Triple Pack 1. Jupiter AJ140 Fans x 3 2. ARGB One-Click Controller v1.1 x 1 3. Screws x 12 4. 3-Pin Headers x 3 Single Pack 1. Jupiter AJ140 Fan x 1 2. Screws x 4... -
Page 5: Cable Information
Cable Information Addressable RGB Fan Cable, Addressable RGB Y-Cable Addressable RGB Y-Cable Addressable RGB Fan Cable ARGB One-Click Controller ver. 1.1 Note: Only in Triple Pack... -
Page 6: Installation
Installation Please make sure the power is off. Install the fans in your PC case and mount them in the designated areas. The fan cable, Addressable RGB Y-Cable and their counterparts are attached to each fan. Please connect as followed: Connect the fan’s Addressable RGB Y-Cable to a motherboard’s 3-pin addressable RGB header. - Page 7 LED-White Flow-Green Light at the endof the Flow-Blue Tunnel * InWin reserves the right to change the lighting modes. * For more installation instructions, please scan the QR Code below or watch the video in the Installation website link: https://youtu.be/i_YuNmbGS44...
-
Page 8: Troubleshooting
3. Please do not put anything in the impeller. 4. Please do not modify the wires or the connectors provided by InWin. 5. Please do not touch the fan blades when the fan is in operation. 6. Please only use your fan in a computer case. -
Page 9: Specifications
Specifications 140mm 25mm Product Name Jupiter AJ140 Quantity Included Single Pack Triple Pack Model Number IW-FN-AJ140-1PK IW-FN-AJ140-3PK Colors Black Fan Size 140 x 140 x 25mm Materials PBT, PC Rated Voltage DC 12V Rated Power 2.52W Rated Current 0.21A ADD RGB Rated Voltage... - Page 10 Copyright © 2020 In Win Development Inc. All Rights Reserved.
