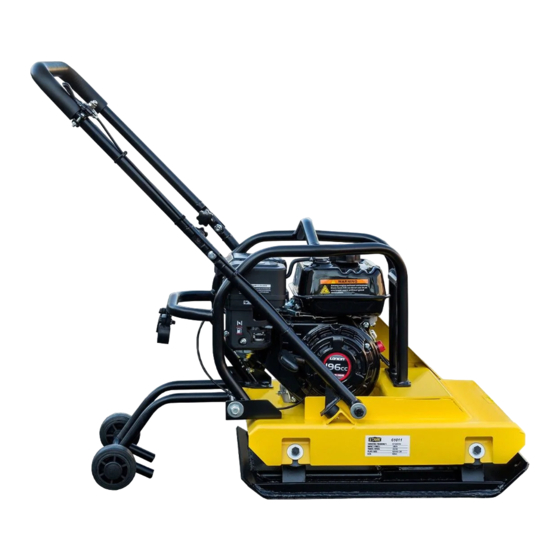

REVERSIBLE PLATE
Questions? Problems? Please call our customer support:
(909) 628 4900 Mon-Fri 9am to 3pm PST
To reduce the risk of injury,all operators and maintenance
personnel must read and understand these instructions
before operating ， changing accessories ， or performing
maintenance about this power equipment. All possible
situations cannot be covered in these instructions． Care must
be exercised by everyone
near this equipment.
COMPACTOR
61011
Owner's Manual
WARNING
using，maintaining or working
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stark 61011
Summary of Contents for Stark 61011
- Page 1 REVERSIBLE PLATE COMPACTOR 61011 Owner’s Manual Questions? Problems? Please call our customer support: (909) 628 4900 Mon-Fri 9am to 3pm PST WARNING To reduce the risk of injury,all operators and maintenance personnel must read and understand these instructions before operating ， changing accessories ， or performing maintenance about this power equipment.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION Introduction………………………………………………………2 Thank you for your selection of this equipment. Applications………………………………………………………2 Functions and controls …………………………………… ……3 We have taken care in the design,manufacture and testing of Accessories………………………………………………………3 this product．Should service or spare parts be required， For safety operation ……………………………………………3 prompt and efficient service is available from our branches．... -
Page 3: Functions And Controls
Air-cooled Single cylinder Engine is amounted as power Before operating this equipment，an individual source and Centrifugal Clutch is fixed on engine output should read this manual．Whenever possible,he shaft．Petrol Engine(2 cycle，4 cycle)and Diesel Gasoline should be shown how to operate the unit by an Engine can be mounted as option．Centrifugal Clutch experienced operator．Inexperience is hazardous engages by running up the engine and engine R.P.M. -
Page 4: Hazards And Risks
HAZARDS AND RISKS ENSURE that the fuel tank cap is securely fitted after refueling!CHEMICAL HAZARDS NEVER allow any person to operate the machine without adequate instruction． DO NOT operate or refuel a petrol or diesel motor in a confined area without adequate ventilation． ENSURE all operators read ，... - Page 5 For more information on starting and correct operating procedures of the motor,refer to the motor operation manual sup- plied with the unit． Increase the motor speed to the maximum setting using the hand throttle lever,before commencing compacting． The machine should be controlled by grasping the handle with both hands and applying restraint to control the forward motion.
- Page 6 2-4．Stop engine without fail before replenishing fuel tank. Never replenish gasoline while the engine is running or remains hot otherwise spilled or evaporated fuel is liable to catch fire from engine sparks or muffler heat． Wipe off spilled fuel,if any，before starting engine． Be careful not to Spill fuel．...
- Page 7 !CAUTION Do not pull the rope all the way and do not take your hand off the pulled knob but slowly return it original position． 3-8．After starting up the engine，be sure to perform a warm up the engine，be sure to perform a warm up run for 2 to 3 minutes．This should be performed without fail,particularly during winter season．...
- Page 8 6．Shutdown To stop the engine in an emergency，turn the stop switch to the OFF position． Under normal conditions, use the following procedure： 6-1．Set the speed control lever at the low speed position and allow the engine to run at low speed for 2 or 3 minutes before stopping．...
-
Page 9: Care And Preventive Maintenance
B． Remove spark plug， clean and adjust the spark plug gap to 0.6-0.7mm(0.02-0.03 in.). Fig-15 C．drain the motor oil of the engine and replace with new specified oil． Fig-16 ! NOTE： When the engine is new， the first oil change must be made after 20 hours of operation．and replenish the oil tank before operating．... - Page 10 ! CAUTION ! CAUTION Inspection and other services should always be carried out on Fuel piping and connections should be replaced every 2 years. hard and level ground with the engine shutdown． Inspection and Maintenance Service Tables． TABLE2. ENGINE CHECK 1．...
-
Page 11: Specifications
SPECIFICATIONS Model 61011 Engine Air-cooled, single cylinder, 4-storke Engine type Petrol,Loncin 200F Power Hp Weight Kg Frequency VPM 4750 Centrifugal Force kn Compaction Depth cm Plate Size cm 62×45 Dimension cm 79×50×66 BEARINGS The following bearings are sealed： Centrifugal clutch-grease lubricated...
