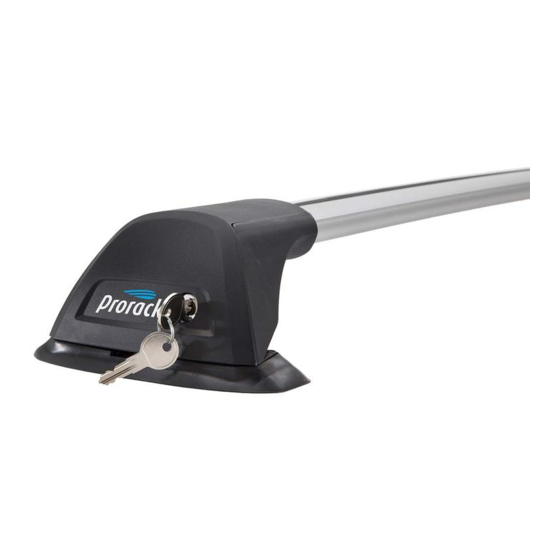

Prorack K111 Fitting Instructions Manual

Prorack K111 Fitting Instructions Manual

Fitting kit, basic carrier

Advertisement

Quick Links

EN

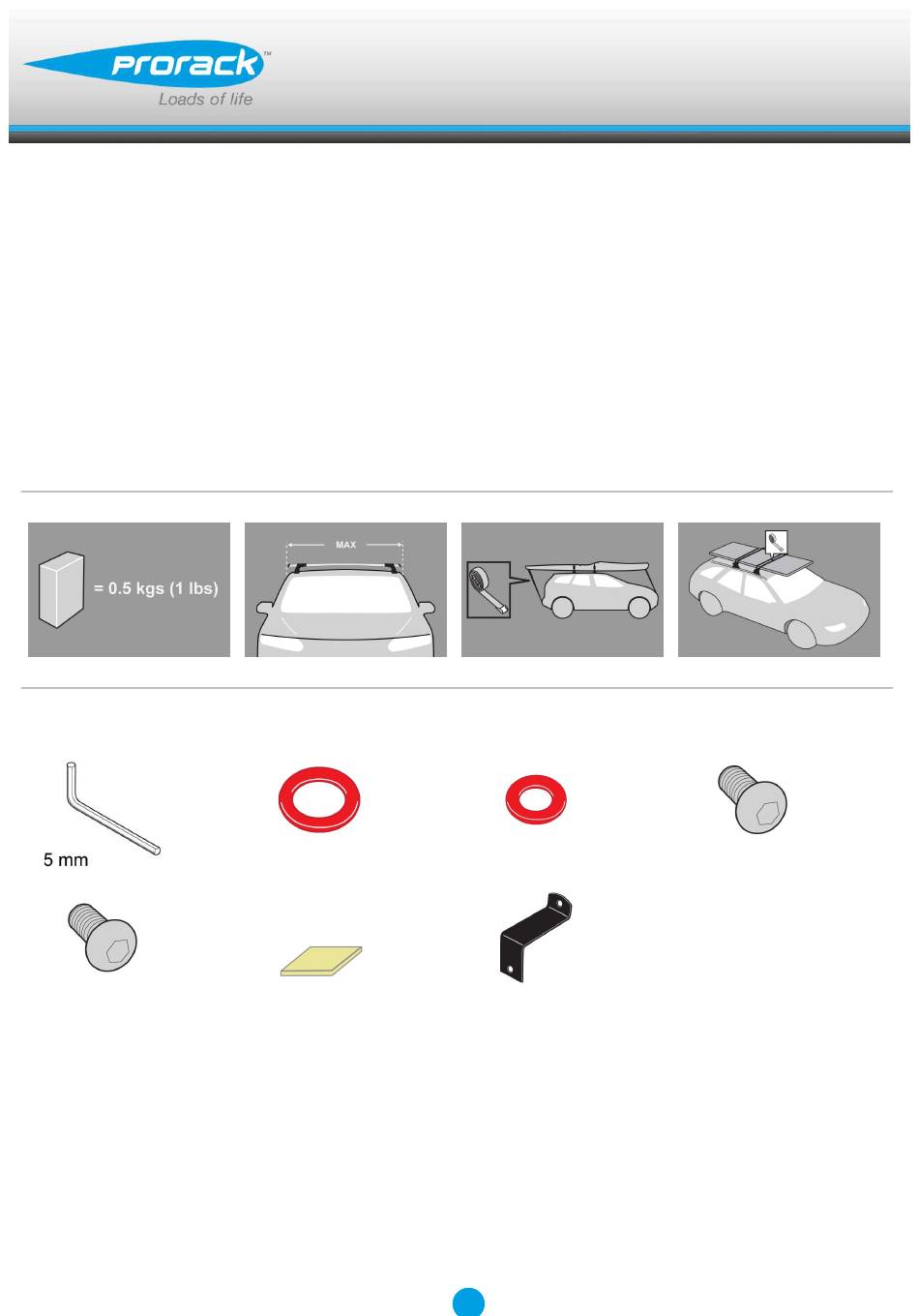

Fitting Instructions for Basic Carrier
Revision No: 5C
x 1
x 4
x 4
x 4
1
Fitting Kit
x 4
x 4
K111
x 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the K111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prorack K111

  • Page 1 K111 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5C...
  • Page 2 Fitting Kit K111 MAX kgs (lbs) Peugeot 406 , 4dr Sedan 95-04 50 kgs (110 lbs) 50 kgs (110 lbs) 406 , 4dr Sedan 95-04 50 kgs (110 lbs) 50 kgs (110 lbs) 406 , 4dr Sedan 96-04 50 kgs (110 lbs)
  • Page 3: First Time Installation

    Fitting Kit K111 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
  • Page 4 Fitting Kit K111 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is...
  • Page 5 Fitting Kit K111 Remove locking screw. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Apply protective strip as shown.  Trim if required.
  • Page 6 Fitting Kit K111 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
  • Page 7 Fitting Kit K111 Fitment Pull back rubber seal to expose fixed points on vehicle body. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the...
  • Page 8 Fitting Kit K111 Tighten adjusting screw to 5 Nm (3.7 ft lb). Place clamp over the mounting hole Fit a fibre washer on each capscrew and attach clamps to the vehicle body using the capscrews. M6 = Ford M8 = Peugeot...
  • Page 9 Fitting Kit K111 Refit rubber seal over the clamp. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
  • Page 10 Fitting Kit K111 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 11: Maintenance

    Fitting Kit K111 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 12 Fitting Kit K111 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
  • Page 13 Fitting Kit K111 406, 4dr Sedan 95-04 (EU) -340mm 310mm -13 -3/8ths" 12 3/16ths" 406, 4dr Sedan 95-04 (EU) -340mm 310mm 780mm 750mm -13 -3/8ths" 12 3/16ths" 30 11/16ths" 29 1/2ths" 406, 4dr Sedan 96-04 (ZA) -340mm 310mm -13 -3/8ths"...
  • Page 14 Fitting Kit K111 Escort, 5dr Hatch 91-99 (ZA) -290mm 390mm 750mm 740mm -11 -7/16ths" 15 3/8ths" 29 1/2ths" 29 1/8ths"...
  • Page 15: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 16 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
