Orbital Polisher Pulidora Orbital P.13 6-inch / 15 cm Model No. • N° de Modelo AA6BP2 FOR YOUR SAFETY : Read and understand this manual before use. Keep this manual for future reference. PARA SU SEGURIDAD: Lea y entienda este manual antes de usar.

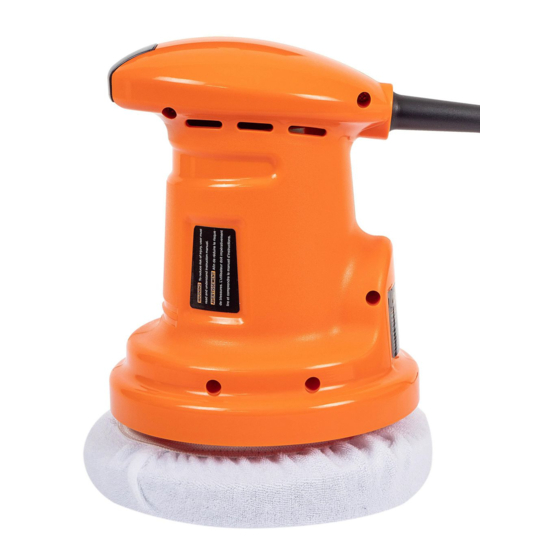

For buffing waxed surfaces, use the clean microfiber bonnet included. INTRODUCTION ® This ArmorAll Random Orbit Polisher is optimally designed for polishing, waxing, and buffing dry, clean, painted automotive surfaces. Equipped with a durable 0.4 Amp motor, this orbital polisher delivers 3500 orbits per minute (RPM) in a random circular motion, which is similar to yet exceeds the motion of a hand polish.
GENERAL SAFETY RULES General Power Tool Safety Warnings - Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres such as in the presence of flammable liquids, gases, or dust.
GENERAL SAFETY RULES (Continued) General Power Tool Safety Warnings - Tool Use and Care (Continued) • Maintain tools with care and keep tools clean. Properly maintained tools are easier to control. • Check for misalignment or binding of moving parts, breakage of parts, and any other condition which may affect the tool's operation.
ELECTRICAL SAFETY This orbital polisher is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Appliances before servicing. Use this orbital polisher as described in this manual. DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.
EXTENSION CORDS When using an extension cord with your orbital polisher, refer to the following table to determine the required A.W.G. wire size. Before operating, make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the orbital polisher, as use of damaged extension cords can shock, burn, or electrocute.
APPLICATIONS ® Your Armor All orbital polisher is designed to buff or polish high-gloss surfaces. While most commonly used for adding an even shine to automotive paint surfaces, this product is ideal for polishing or buffing nearly any high- gloss surface. Common applications include (but are not limited to): •...
GETTING TO KNOW YOUR ORBITAL POLISHER ® Before using your new Armor All orbital polisher, read and familiarize yourself with the safety rules listed in this manual and with the features below. Cord: Barrel Grip: 12" Power cord Standard grip for best stability Base Pad: 6"...
OPERATION Surface Preparation Washing the Vehicle or Work Area: Dirt and debris can scratch and mar a surface if not completely removed before buffing. Before buffing or polishing a vehicle, wash it carefully using the following steps: 1. Rinse the vehicle to remove loose dirt and debris. 2.
Page 11
OPERATION Applying Wax or Polish (Continued) 3. Place the orbital polisher against the work surface before turning it on. Use long horizontal and vertical strokes to apply the wax or polish and let the polisher do the work. Do not push down on the polisher or it will not work efficiently.
MAINTENANCE CAUTION: Ensure your orbital polisher is disconnected from any power supply before performing any maintenance on it. ® Proper maintenance is important in getting the longest life and best results from your Armor All orbital polisher. Follow the below steps to keep your tool in good working order: 1.
TABLA DE CONTENIDOS SECCIÓN Página ................................ GARANTÍA ................... INTRODUCCIÓN Y ASPECTOS DE SEGURIDAD ......................REGLAS DE SEGURIDAD GENERALES ....................... REGLAS DE SEGURIDAD ESPECÍFICAS ..........................SEGURIDAD ELÉCTRICA ..........................CABLES DE EXTENSIÓN ............................ESPECIFICACIONES ..............................APLICACIONES ................. DESEMPAQUE Y REVISIÓN DEL CONTENIDO DE LA CAJA ........................
INTRODUCCIÓN Y ASPECTOS DE SEGURIDAD LEA ANTES DE USAR EL PRODUCTO Muchos automóviles usan acabados de pintura que necesitan un bonete más suave que el bonete de felpa incluido con esta pulidora orbital. Use el bonete de felpa incluido con esta pulidora orbital solo para aplicar cera y agentes químicos similares a una superficie pintada limpia.
Page 15
GUARDE TODAS LAS ADVERTENCIAS E INSTRUCCIONES COMO REFERENCIA FUTURA. Cuando utilice un aparato eléctrico, siga siempre las precauciones básicas, incluidas las reglas de seguridad de las páginas siguientes. REGLAS DE SEGURIDAD GENERALES Advertencias de seguridad generales para herramientas eléctricas: zona de trabajo •...
• No se extralimite. Mantenga los pies en tierra firme y el equilibrio en todo momento. Un punto de apoyo y equilibrio adecuados permiten controlar mejor la herramienta en situaciones inesperadas. • Utilice equipo de seguridad. Use siempre protección ocular. Dependiendo de las condiciones, use una máscara contra el polvo, calzado de seguridad antideslizante, casco o protección auditiva.
REGLAS DE SEGURIDAD ESPECÍFICAS Reglas adicionales para el funcionamiento seguro Siga estas reglas para reducir el riesgo de lesiones personales graves: • Conozca su herramienta eléctrica. Conozca sus aplicaciones y limitaciones, así como los riesgos potenciales específicos relacionados con esta herramienta. •...
Page 18
ADVERTENCIA: POR SU PROPIA SEGURIDAD, LEA Y COMPRENDA EL MANUAL DEL USUARIO. NO UTILIZAR SIN SUPERVISIÓN. NO USE EL APARATO CERCA DE MATERIALES TÓXICOS, INFLAMABLES U OTROS ELEMENTOS PELIGROSOS. NO UTILIZAR CERCA DE LÍQUIDOS O VAPORES EXPLOSIVOS. PRECAUCIÓN: • Cuando use una herramienta eléctrica al aire libre, use un cable de extensión para exteriores de tipo "W-A"...
CABLES DE EXTENSIÓN Si usa un cable de extensión con la pulidora orbital, consulte la siguiente tabla para determinar el AWG requerido. Antes de usar el aparato, asegúrese de que los cables de alimentación y de extensión estén en buenas condiciones. Efectúe las reparaciones o reemplazos antes de usar la pulidora orbital, ya que los cables de extensión dañados pueden provocar choques, quemaduras o electrocución.
APLICACIONES ® La pulidora orbital Armor All se diseñó para lustrar o pulir superficies brillantes. Si bien su uso más común es otorgar un brillo parejo a las superficies pintadas de los automóviles, este producto es ideal para pulir o lustrar casi cualquier superficie brillante.
CONOZCA SU PULIDORA ORBITAL ® Antes de usar la pulidora orbital Armor All , lea y comprenda las reglas de seguridad contenidas en este manual y con las características que aparecen a continuación. Cable: Cable de alimentación de 12 pulgadas Almohadilla de base: Impermeable de 10 pulgadas Empuñadura ancha: empuñadura estándar para lograr la mejor estabilidad Empuñadura de pomo: empuñadura cómoda para tareas ligeras...
FUNCIONAMIENTO Preparación de la superficie Lavado del vehículo o del área de trabajo: El polvo y los escombros pueden rayar y dañar una superficie si no se quitan por completo antes de lustrar. Antes de lustrar o pulir un vehículo, lávelo cuidadosamente siguiendo estos pasos: 1.
Page 23
FUNCIONAMIENTO Aplicación de cera o pulidor (cont.) 3. Apoye la pulidora orbital en la superficie de trabajo antes de encenderla. Use movimientos horizontales y verticales largos para aplicar la cera o pulidor y deje que la pulidora haga su trabajo. No presione la pulidora contra la superficie;...
MANTENIMIENTO PRECAUCIÓN: Asegúrese de que la pulidora orbital esté desconectada de toda fuente de alimentación antes de realizarle mantenimiento. El mantenimiento adecuado es importante para prologar la vida útil y obtener los mejores resultados de ® la pulidora orbital Armor All .
