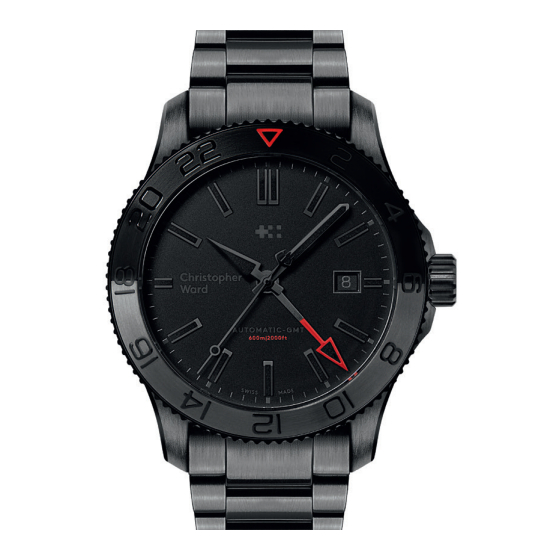

- Page 1 C60 Abyss GMT Owner’s Handbook...
- Page 2 Time on your side Your Christopher Ward watch has been designed in Britain and engineered in Switzerland by highly talented craftspeople. This ensures not only accurate and precise timekeeping, but also brings a real pride of ownership that only watches of the highest quality standards can hope to deliver.
- Page 3 2 2 2...
- Page 4 GMT watches were created in the 1950s to enable long-haul pilots to monitor their ‘home’ timezone by using a fourth ‘GMT’ hand with You don’t need us to tell you the appeal of the C60 Abyss GMT – a 24-hour bezel. They’ve been a favourite movement ever since.
- Page 5 Features • Swiss made • Screw-down deep-stamped 3D backplate • Top-brushed indexes with diamond polished facets • 25 jewel self-winding mechanical • Bidirectional 24-hour steel bezel movement • Brushed and polished hands • Unique engraved serial number • 42-hour power reserve •...
- Page 6 Technical Information Sellita SW330 Calibre Stainless steel Case 42mm Diameter Weight 60 ATM (600 metres) Water resistance 28,800 per hour Vibrations -20/+20 seconds per day Timing tolerance Lug to lug 49.3mm 22mm Strap...
- Page 7 2 for winding in power. Wind in a clockwise direction to re-power • Pull gently into position 4. This position is used for handsetting the watch. Your C60 Abyss GMT has a maximum power reserve of and stopping of the seconds hand. For precise time setting it is 42 hours when fully wound.
- Page 8 1. Crown screw-down position 2. Manual winding 3. Date/GMT setting 4. Time setting PLEASE NOTE: Date correction should not be carried out between 20.00 hr and Unscrew and then pull 02.00 hr as the watch gearing will already be aligning itself to change the date.
- Page 9 How to operate your C60 Abyss GMT Using the GMT hand for travel Set the time in your new destination by pulling the crown into Once set, it means that, for example, you can gauge the time to position 4 and move the hour/ minute hands until they indicate the ring your friends and family without waking them in the middle of desired time.
- Page 10 24 h 01 h 02 h 03 h 04 h 05 h 06 h 07 h 08 h 09 h 10 h 11 h 12 h 13 h 14 h 15 h 16 h 17 h 18 h 19 h 20 h 21 h 22 h...
-
Page 11: Straps And Bracelets
Using the quick-release pins on your strap/bracelet How to operate your C60 Abyss GMT Straps and bracelets 1. Locate the quick-release pin (or pins) 2. To reattach your strap (C) or bracelet (D), on your strap (A) or bracelet (B). - Page 12 How to use the micro adjustment on your bracelet 1. Press buttons to release. 2. Pull open the clasp. 3. There are five micro adjustment positions, which allows for a maximum extension of 8.4mm. To extend, pull the lever to unlock and simultaneously pull on the bracelet into the desired position.
-
Page 13: Water Resistance
How to operate your C60 Abyss GMT Water resistance Although your watch has been through vigorous static pressure For these reasons, the water resistance rating of your watch testing, it is worth remembering that there are many variables that (as shown) should only ever be considered a guideline and we can affect the water resistance of your watch. - Page 14 1 ATM (10 metres) 15 ATM (150 metres) 100 ATM (1000 metres) Safe to wear your watch while Safe to use while snorkelling in Professional deep sea diving washing your hands with tap water open water 3 ATM (30 metres) 30 ATM (300 metres) Washing your car and/or general Ideal for experienced divers and...
- Page 15 60 Day Free Returns Our success depends on you being completely happy with your new Christopher Ward watch. You have up to 60 days from despatch to Your watch is constructed from the finest components and return your watch, with free shipping, and receive a replacement or materials available including one of Switzerland’s finest mechanical...
- Page 16 Servicing and Repairs - the Christopher Ward way… repair. If you have not had your watch serviced at the recommended Our innovative approach to service and repair means that having interval, we will not cover the cost of the repair under warranty, your watch attended to doesn’t mean months of waiting followed...
- Page 17 – listening to feedback which helps us actually a refurbished chicken shed!), Christopher Ward has won continually improve as we grow. As the owner of a Christopher Ward a worldwide following and can justifiably claim to manufacture watch, if you ever need to get hold of us we are at your service.
- Page 18 Head office 1 Park Street, Maidenhead, Berkshire SL6 1SL United Kingdom Customer support UK and EU Tel: +44 (0)1628 763040 US Tel: +1 (877) 380 2288 ROW Tel: +1 (877) 380 2288 customerservices@christopherward.co.uk technical@christopherward.co.uk christopherward.com...
