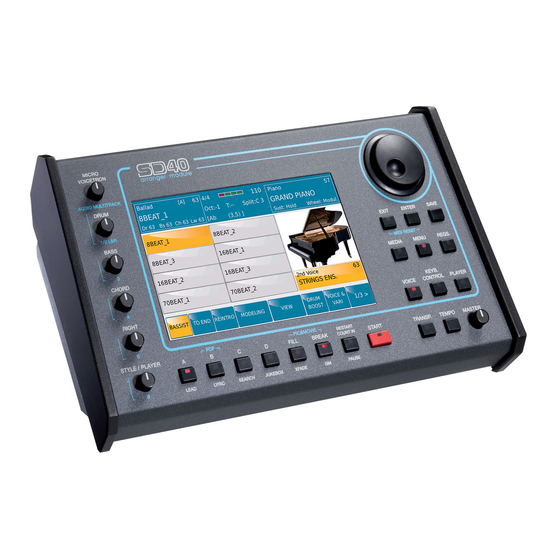

KETRON SD40 Update Instructions
Hide thumbs Also See for SD40:

Advertisement

Quick Links

Half Bar
This  function  has  been  modified  as  such:  if  pressed  during  the  first  half  of  the
measure,  the  1/2  bar  fill  is  heard  during  the  current  measure.  However  if  pressed
nd
during the 2
 half of the measure, the 1/2 bar fill is played at the beginning of the
next measure.

Tempo accelerando/ritardando
By pressing Tempo button together in the STYLE mode, the Tempo related features
are displayed. Now, by touching and holding down for 2 seconds the ACC icon, you
can access editable parameters for both accelerando and ritardando. Touching either
the  EXIT  icon  on  the  screen  or  on  the  panel  returns  the  keyboard  to  the  normal
screen.  The  new  functions  available  in  the  EDIT  mode  are  –  Step,  Lower,  Limit  and
Upper Limit.
 Step
Once  turned  on,  this  allows  you  to  change  the  « rate »  of  acceleration  or
deceleration,  so  the  tempo  will  increase/decrease  in  steps  of  x,  rather  than
the default steps of 1:
 Range  from  1–20:  the  change  in  tempo  will  be  proportional  to  the
quantity defined for each measure.
 Range  from  1‐20  beat:  the  tempo  will  be  proportional  to  the  value
defined by each bar
 Lower Limit
Use  to  set  the  lowest  tempo  value  the  style  can  go  to  when  Ritardando  is
used, however please note that the value for the tempo (set in View => Drum)
will take precedence over any minimum tempo value set.
 Upper Limit
Use  to  set  the  highest  tempo  value  the  style  can  go  to  when  Accelerando  is
used, however please note that the value for the tempo (set in View => Drum)
will take precedence over any maximum tempo value set.
The default values are: Step=5 (bar), Lower Limit=40, Upper Limit = 250.
The  defined  values  can  be  saved  within  the  CUSTOM  STARTUP.  The  accelerando  &
ritardando set values can also be saved within each style independently. If a style has
these  values,  these  will  super  exceed  the  default  values  saved  within  the  CUSTOM
STARTUP menu.
Once  the  style  has  been  stopped,  the  values  return  either  to  the  default  numbers
(min  =  40,  max=250)  or  that  stored  within  the  CUSTOM  STARTUP.    In  the  PLAYER
mode (when using Midifiles), the values that have been 'edited' into or stored within
the Midifile are those that will be used (ranging from 1‐20 bars).
SD40 ‐ Update 1.1.0


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD40 and is the answer not in the manual?

Questions and answers

Summary of Contents for KETRON SD40

  • Page 1 SD40 ‐ Update 1.1.0    Half Bar  This  function  has  been  modified  as  such:  if  pressed  during  the  first  half  of  the  measure,  the  1/2  bar  fill  is  heard  during  the  current  measure.  However  if  pressed  during the 2  half of the measure, the 1/2 bar fill is played at the beginning of the  next measure.    Tempo accelerando/ritardando  By pressing Tempo button together in the STYLE mode, the Tempo related features  are displayed. Now, by touching and holding down for 2 seconds the ACC icon, you  can access editable parameters for both accelerando and ritardando. Touching either ...
  • Page 2   Registration  Registrations can now be loaded from USB sticks.  Registrations name are up to 30 characters.  Complete save feature  on Registration for Voice families.  Store of Intro of style: if in start, the style starts with the Intro saved, if in stop and  key start the style starts with the intro saved at the touch of a button or by Start  button.  In Registration mode Right 1 and 2 and 2nd Voice sliders are now saved on Player.  When the Registration changes, if the new one does not contain pdf, the previous  pdf setting is deleted.  Correct on the Registrations the transition from ACCORD.CLASSIC mode to MASTER    MIDI MERGE: (Found under Menu → Midi → Midi Port)  Added  the  possibility  to  now  assign  the  physical  MIDI  in  port  to  both  GM  and  KEYBOARD modes (internal midi merger)    USB midi device now assignable to the 3 front USB ports  In the MENU→CONTROLS screen, the USB MIDI IN KEYBOARD or GM mode can now  also be assigned to the 3 front USB ports. This function allows you to now connect a  Midi USB keyboard to either of the front USB ports and assign it to either function as  KEYBOARD or GM mode. This setting can be stored as a CUSTOM STARTUP.  You can now have simultaneously connected to the SD9 both MIDI In GM and a Midi  USB device if in MENU – CONTROLS, USB is set to MIDI IN KEYBOARD or a MIDI host  device MIDI is set to MIDI USB KEYB. In the MENU – MIDI setup page.  Modeling Edit  Added the SINGLE / GLOBAL function which avoids going  back on VIEW to be able to ...
  • Page 3 Second Voice  From the main menu while holding down the 2nd Voice tab, you access directly the  second tone  selection menu.   Voice timbre remains until the main entry is changed.  To store it  you need to enter the voice editing and save in a USER VOICE.    Midi reset   A new MIDI RESET control has been included as part of MIDI reception (code:  F0 26 7B 39 05 00 F7).   You can now change or select styles via MIDI IN (using Midi Keyboard RX part  – GLOBAL or RIGHT).  o Bank 40 – 49 is used to select the Factory style groups (Ballad = 40, Pop  = 41 etc.)  o Program Change (0 – 127) is used to select the factory style within the  selected style group. Max of 128 styles can be selected.  o Bank 50 – 59 is used to select the User style groups (Ballad = 50, Pop =  52 etc.)  o Program  Change  (0  –  127)  is  used  to  select  the  User  style  within  the  selected style group. Max of 128 styles can be selected.    Octave CHORD1‐5:  Added the capability to now change the octave of the Chords 1‐5 in a style. In VIEW ...
  • Page 4 STARTUP). Once turned on, this function ‘delays’ the chord recognition of minor, 7th,  m7th, 5+, dim, 6th and 7th when assigned to and used with the pedal in style mode.  This  gives  you  time  to  press  the  footswitch  assigned  to  any  of  these  chords  a  few  bars before the actual chord change is needed – very useful for Guitar players.    Panel reboot application  Simultaneously pressing both the ARR_A & Enter buttons will restart the SD40  without having to manually switch off the instrument.   This may be useful if any anomalies should occur.    Whole disk check   Pressing both the ARR_B & Enter enables the SD40 to do a complete disk check. This  function  takes  quite  some  time  and  so  the  instrument  should  not  be  switched  off ...
  • Page 5 The function can be saved on Custom Startup, on Footswitch and User Tabs (Bass  Sus.     Disk edit   Folders are no longer automatically available when the Disk Edit button is turned on.  Locked navigation if SD40 is connected to the PC (PC‐CONNECT ON).    Player   Position track in the Player menu is now available with an enlarged font.  Search  function  in  the  Playlist  can  only  be  activated  for  searching  for  files  within  a  Playlist and not for searching the playlist with the arrow and or dial buttons.  Fixed  Pdf  display  problem  when  used  with  Mp3  /  Wav  +  Pdf  file  selected  after  a ...
  • Page 6   Fade out   Improved Fade Out feature when used with Endings.  Arabic scale  User Tabs: Arabic Scale function added (On/Off).  When the user voice is loaded, the scale is updated if it has been saved (if enabled, it  is immediately available).    Chord recognition   Improved chord recognition (possible problems on 4‐note chords).  The recognition of the ninth chord was corrected.  Fixed random error in the recognition of the chord.    Drum remap  Now you can also access the drum remap from the VIEW → Drum Mixer menu,  DRUM REMAP button. Press the EXIT button to return to the Drum Mixer menu.  The MANUAL box (drum on / off) is activated in the menu.    View → EFX  Now you can edit and save the Insert EFX2 effect type on the current style.  Drum RESTYLE  The status of the DRUM volume slider is now stored when the RESTYLE function is  used.  This  means  if  you  replace  a  Midi  drum  with  an  Audio  drum  and  adjust  the  volume level to suit the Midifile, this level is also stored along with the audio drum  used in the Midifile. ...
  • Page 7 Potentiometer #5 is set to the right volume, while if set as the lower volume it  changes the volume right.    Style MyList   Fixed error in the selection of the style box, if still loading.    Modelling drum  USER DRUM MIDI extension: tables (Midifiles) with midi drumset can be inserted in  the USER_MODELING / Drum folder.  The tables will be visible after reboot or with Update Modeling Tab (Holding down  the ARR_C key and pressing ENTER).  In the MODELING → Drum menu, the "User Drum" box has been inserted: pressing  this box will highlight the list of user drum in the USER_MODELING / Drum folder.  These tables can be assigned to the style sections in both single and global fashion.  Selecting the "User Drum" box automatically activates the Key Start which allows  you to select also Fill, Break, Intro, Ending (with Reintro) with the style in stop.  With SAVE you can save the style with the changes made on the modeling.    Selection  The selection of the Voice and Styles families has been corrected.    Rotary   Fixing issue when Rotary effect is out of Morphing mode (it sent the reverb to zero).    Media menu  Fixed the transition from Regis to Media by pressing on the device (chip picture).  Metronome   SOLO mode did not work on midifiles.    Styles Name  The number of characters in the style name displayed at the top left has been  reduced to 24.  Based on the length, the font is reduced / enlarged.    Bass  Improvement of the tonic of the bass recognition while chord is changed   Fixed the double bass note to the style change at the same time as the chord  change.     ...
  • Page 8 Midi compress   For styles with Drumset, a Dynamic Compression Control (Midi Compress) with  values from 0‐48 has been added to the View → Drum menu.    Midi USB   New USB Midi Keyboard feature (simulates Midi In Keyboard).  The previous USB Midi is renamed as USB Midi GM.  Display style info  In addition to displaying the style section [A], .. [IN2] in yellow is now displayed  also the measurement counter for each section Ex. [A] 1/8, [A] 2/8 ..    Auto FILL   Fixed the double bass note issue , especially in times in ¾ (Eg IRISH_WALZ) changing  style arrangement in the last quarter with AUTOFILL active. ...
