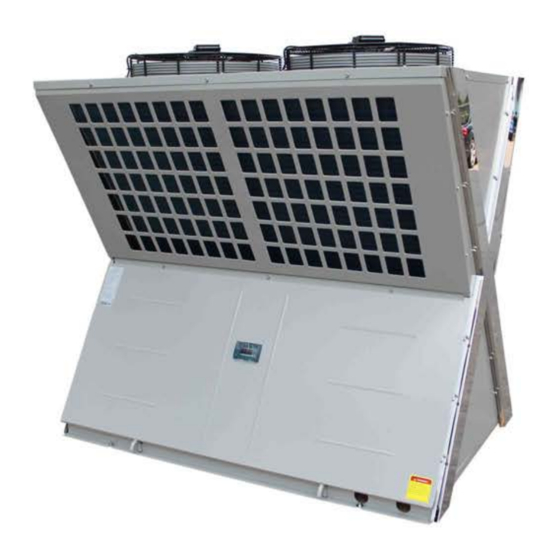

Summary of Contents for evoheat EVO MAX 32

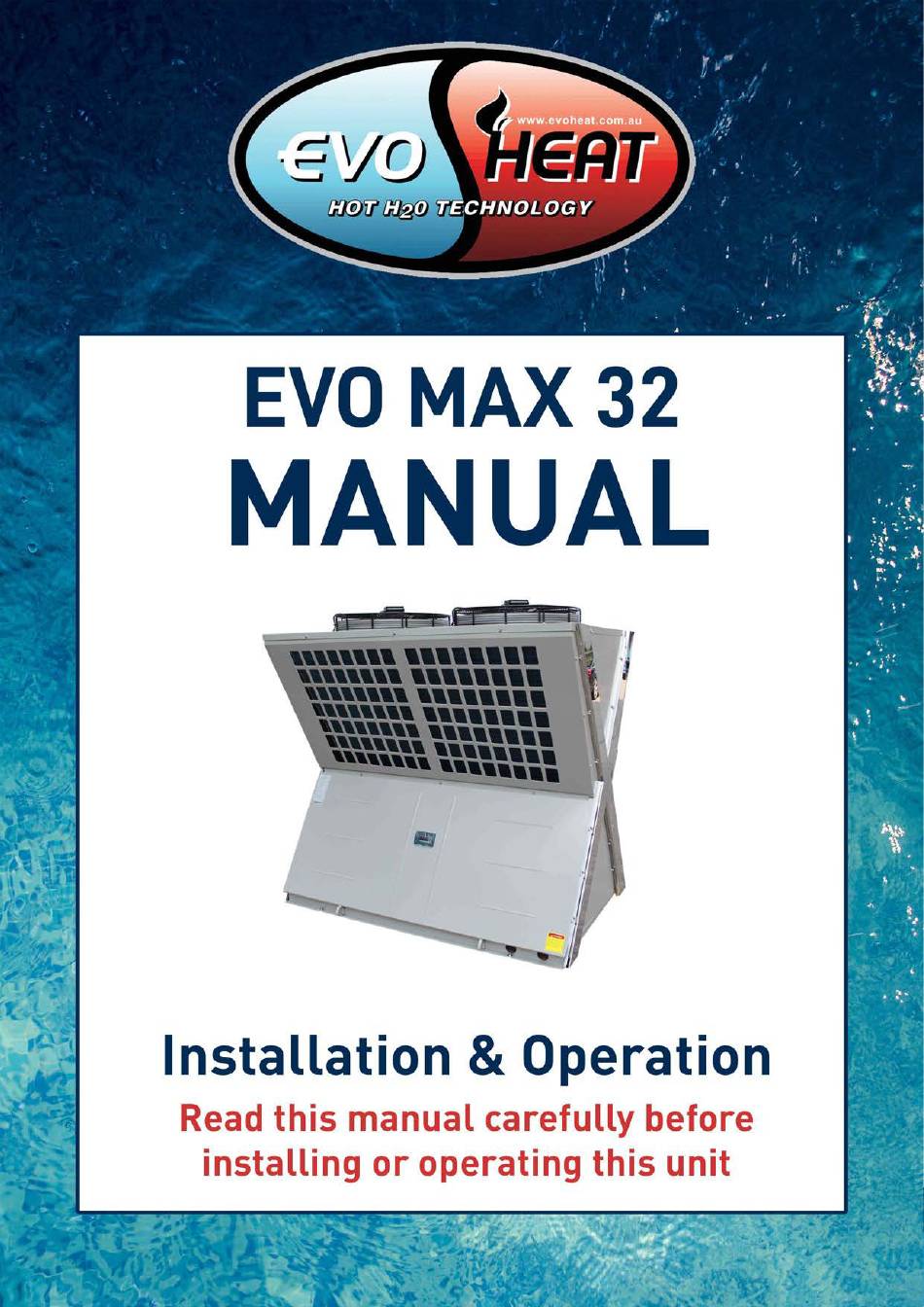

- Page 1 P a g e...
-
Page 2: Table Of Contents
P a g e Contents Preface ..............................3 Specifications ............................4 Specification Data ........................... 4 Unit Dimensions ..........................5 Installation and Maintenance ......................... 6 Safety Precautions .......................... 6 Transit ............................9 Installation Notes ........................... 9 Location of the Unit ........................9 Water Loop Connection .........................10 Electrical Wiring and Power Supply ....................10 Prior to Trial Operation ........................11... -
Page 3: Preface
P a g e 1. Preface This manual includes all the necessary information in regard to installation, debugging, discharging and maintenance of your unit. Ensure the contents of this manual are read carefully before the unit is opened or maintained. Read these operation and installation instructions carefully. -
Page 4: Specifications
P a g e 2. Specifications Specification Data EVO MAX EVO MAX 32 Hot Water Condition A20°C/15°C, W15°C Heating Capacity kW to 65°C Power Input kW C.O.P. WW 3.48 Hot Water L/h *Hot Water Condition A35°C/-°C, W15°C Heating Capacity kW to 75°C A35°C/-°C, W15°C to 70°C... -
Page 5: Unit Dimensions
P a g e Unit Dimensions Evo Max 32... -
Page 6: Installation And Maintenance
P a g e 3. Installation and Maintenance 3.1 Safety Precautions To prevent the users and others from being harmed while using this unit, to avoid damage to the unit and for to prevent improper use ensure that the following information is understood. The piping connection and wiring should be installed according to local legislation and to a professional standard. - Page 7 P a g e...
- Page 8 P a g e...
-
Page 9: Transit
P a g e 3.2 Transit When the heat pump is to be transported, please keep the unit standing upright. The unit cannot be laid down, otherwise inner parts of the device may become damaged. If the unit needs to be hung up during installation (for the Evo Max 100 unit, four sling wires longer than 8m are to be used. -
Page 10: Water Loop Connection
These wires must also be free from any pipes or valves on the unit. When all wiring is completed, the power should only be connected after a thorough double check. POWER SPECIFICATIONS Unit Model Power Supply Cable Creepage Protector Evo Max 32 380V/3N~/50Hz 3*6mm 30mA Less than 0.1 SET... -
Page 11: Prior To Trial Operation
| 11 P a g e 3.7 Prior to Trial Operation Check the indoor unit, make sure that the pipe connection is done correctly and that the relevant valves are open. Check the water loop to ensure that there is enough water inside of the expansion tank, that the water supply is good and that the water loop has no air in it and is full of water. -
Page 12: Controlling And Operation
| 12 P a g e 4. Controlling and Operation 4.1 Controller Display... -
Page 13: How To Use The Controller
| 13 P a g e 4.2 How to Use the Controller 4.2.1 Power On 4.2.2 Check Parameters... -
Page 14: Temperature Settings
| 14 P a g e 4.2.3 Temperature Settings... -
Page 15: Malfunctions
| 15 P a g e 4.2.4 Malfunctions 4.3 Parameter Table Description Limits Unit Cooling set-point °C Cooling differential °C Heating set-point °C Heating differential °C 5. Troubleshooting 5.1 Ordinary Malfunctions: Causes & Solutions Malfunction Display Reason Resolution Normal Working Water inlet temp. - Page 16 | 16 P a g e Fan Speed Control • Cooling with Speed Control Heating with Speed Control • With fan speed control modular MCHRTF04C0, the fan motor control curve is as the chart above, and the related parameters are set as the following (R134a design). Display Indicator Parameter and Description U.O.M...
-
Page 17: Bhb10 Malfunction Table
| 17 P a g e 5.2 BHB10 Malfunction Table 5.2.1 Common Failures: Causes & Solutions Malfunction Digital Detector Cause Solution Display Display System 1 exhaust P181 The sensor is open or short circuit Check or change the sensor temp. failure System 2 exhaust P281 The sensor is open or short circuit... -
Page 18: Pbc Connection Illustration
| 18 P a g e 5.3 PBC Connection Illustration Connections Explanation: Symbol Meaning RO01 System 1 magnetic valve outlet (220-230VAC) RO02 System 2 magnetic valve outlet (220-230VAC) RO03 System 1 alert outlet (220-230VAC) RO04 System 2 alert outlet (220-230VAC) CC01 System 1 magnetic valve inlet (220-230VAC) CC02... -
Page 19: Common Observations
| 19 P a g e 5.4 Common Observations FAILURE POSSIBLE CAUSES SOLUTIONS Heat pump cannot be Wrong power supply Shut off the power and check power supply started Power supply cable loose Check power cable and correct the connection Circuit breaker open Check for the cause and replace the fuse or circuit breaker... -
Page 20: Appendix
| 20 P a g e 6. Appendix 6.1 Cautions and Warnings The unit can only be repaired by qualified personnel or an authorised dealer. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 21: Cable Specification
| 21 P a g e 6.2 Cable Specification 6.2.1 Single Phase Unit Nameplate max. Phase Line Earth Line Creepage Protector Signal Line current No More than 10A 2 x 1.5mm 1.5mm 30mA less than 0.1 sec 10~16A 2 x 2.5mm 2.5mm 30mA less than 0.1 sec 16~25A...
