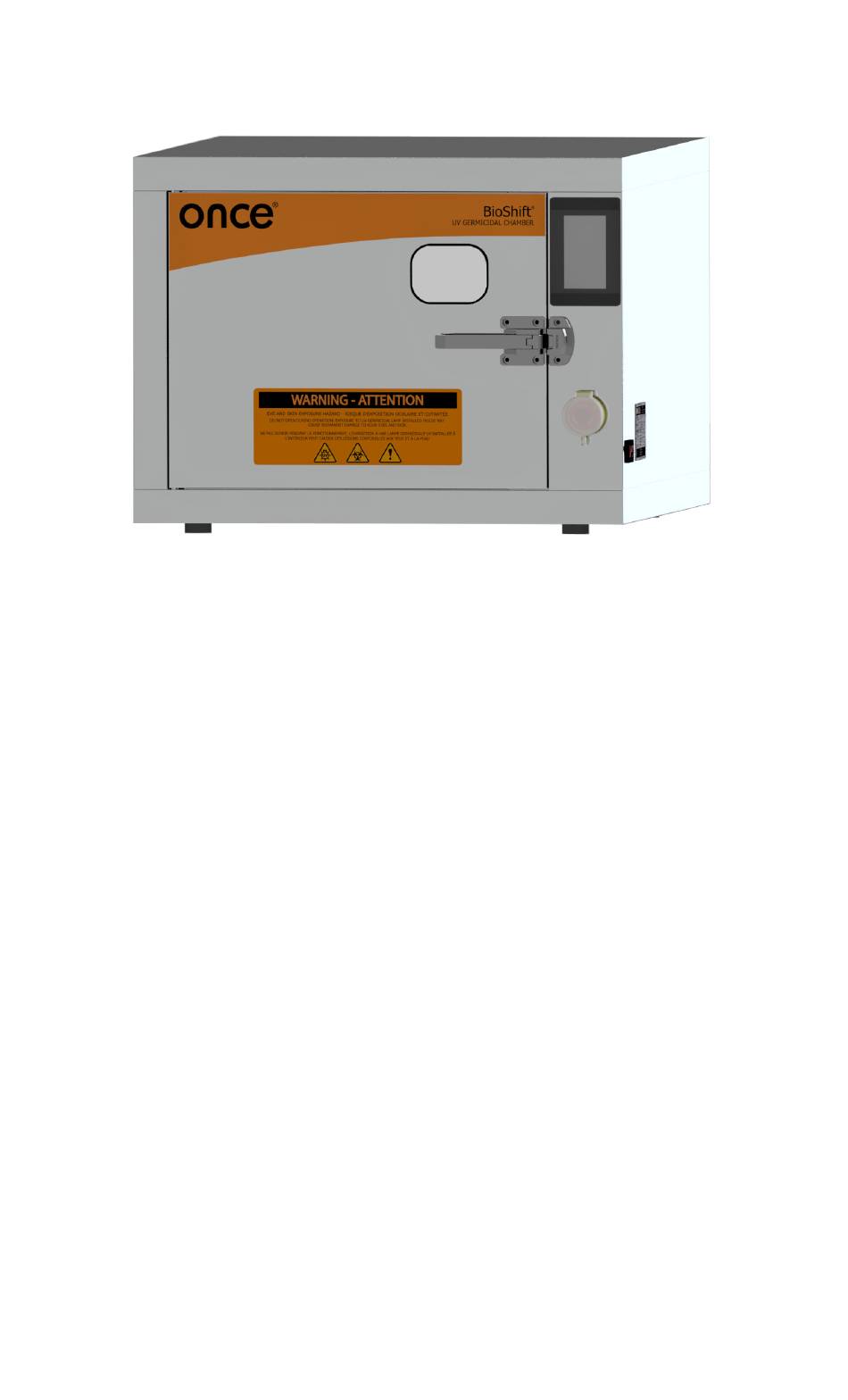

BioShift Pass-Through UV-C Germicidal
Chamber - Instruction Manual
This manual provides user guidelines and additional operation
instructions for the A1 BioShift Pass-Through UV-C Germicidal Chamber.
(Model 24-0230)
For service or parts call your
sales representative, visit our website:
www.once.lighting/uv-c
Or contact us at:
Once Inc.
United States
Germany
Poland
15255 23rd Ave N
Am Südfeld 7
Wloclawska 167
Plymouth, MN 55447
49377 Vechta
87-100 Tourn
+1 (763) 381-5621
+49 (0) 4441 8898-10
+48 (56) 699-5330
info@onceteam.com
info.germany@onceteam.com
info.poland@onceteam.com
Advertisement
Table of Contents
Summary of Contents for Once BioShift 24-0230
- Page 1 A1 BioShift Pass-Through UV-C Germicidal Chamber. (Model 24-0230) For service or parts call your sales representative, visit our website: www.once.lighting/uv-c Or contact us at: Once Inc. United States Germany Poland 15255 23rd Ave N Am Südfeld 7...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..............................2 Specifications .............................. 3 Safety ................................. 4-5 Installation ..............................6 Touchscreen Display ..........................7-9 Home Screen Components ....................7 Maintenance Screen Components .................. 8 Settings Screen Components .................... 9 Programming ............................10 Cycle Time ..........................10 Sleep Timer .......................... -
Page 3: Introduction
INTRODUCTION Health and wellbeing is a critical component to sustain an enjoyable life. It’s why the quality of the air we breathe and cleanliness of the items we touch every day matters. The germicidal properties featured in the BioShift Pass-Through UV-C Germicidal Chamber offer a proven and effective way to inactivate harmful micro-organisms. -
Page 4: Specifications
SPECIFICATIONS Dimensions Outside 25.8” wide x 30.7” deep x 19.7” high (655 x 780 x 500 mm) Weight 121 lbs (55 kg) Functional Operating Power / Current 110V: 137W / 1.3 A, 240V: 140W / 63 mA Standby Power / Current 110V: 6W / 130 mA, 240V: 9W / 100mA Input Voltage 110-240VAC, 50/60 Hz (voltage fluctuation ±10%) -
Page 5: Safety
The lamps are sensitive to the oils in human skin, always handle with gloves. Disposal and Recycling All components must be disposed of in accordance with state and local laws. Refer to lamprecycle.org for more information. Visit www.once.lighting/bioshift-warnings or scan the QR code for additional warning information. - Page 6 SAFETY Features Emergency Stop The safety switch can be found on either side of the chamber and can be used at any time to stop the operation. Pressing EMERGENCY STOP disconnects all power. Open Door(s) BioShift chamber will not operate when the doors are open. The doors cannot be opened during cycle time unless EMERGENCY STOP is pressed.
-
Page 7: Installation
INSTALLATION The BioShift chamber comes with four (4) padded feet on each corner to allow for easy placement on any sturdy and hard, non-moving surface. If installing as a pass-through unit, a 30” x 20” wall cut-out is recommended. Note: The BioShift chamber can be installed in dry locations only (Pour emplacements secs seulement). -
Page 8: Touchscreen Display
TOUCHSCREEN DISPLAY The touchscreen display is located on the clean side of the BioShift chamber. Home Screen Components (1) Cycle Time Display (2) Chamber Start / Stop (3) Chamber Status (4) Settings (5) Maintenance... -
Page 9: Maintenance Screen Components
TOUCHSCREEN DISPLAY Located under the Maintenance button. Maintenance Screen Components (1) View Lamp Life Remaining (2) Reset Lamp Life (3) View Lamp Replacement Info (4) Run 100mJ/cm Dose Test (5) Run 250mJ/cm Dose Test (6) Run 1000mJ/cm Dose Test... -
Page 10: Settings Screen Components
TOUCHSCREEN DISPLAY Located under the Home screen Settings button. Settings Screen Components (1) View Set Lamp Cycle (2) Set Lamp Cycle (3) Set Sleep Time (4) Expired Lamp Life (5) Contact ONCE ®... -
Page 11: Programming
Choose the Set Cycle button. Note: The time is set by arrowing up or down, programmed in MM:SS. • Once desired lamp life cycle has been chosen, select the check mark to set. PROGRAMMING ITEMS TO NOTE: • Controller cannot be programmed if EMERGENCY STOP button(s) are pressed in. -
Page 12: Maintenance
Replacement lamps have been installed and Lamp Life needs to be reset. Simply follow the red exclamation point to the source of the issue. Note: Lamp life remaining will never go negative. Once it reaches zero, it will remain until Lamp Life is reset. -
Page 13: Check Lamp Life
Maintenance menu (see Maintenance Screen Components). Order Replacement Lamps and Ballasts The information required for ordering new lamps include the lamp part number and ONCE contact information. This information can be found from the Maintenance screen ® under Lamp Replacement Info. -
Page 14: Cleaning
It is important to regularly verify the UV-C dose output of the BioShift chamber to ensure proper disinfection. Every 50 cycles or once per month, whichever comes first, the operator shall verify that the UV-C dose exceeds a minimum of 100 mJ/cm in a short, programmed test cycle. -
Page 15: Operating
OPERATING Ensure power switch is turned on and all Emergency Stop buttons are released. Place objects in chamber following guidelines below. • Do not stack items / supplies in the chamber. • Leave 6” between each product in the chamber with no more than 3 across. •... -
Page 16: Contact Information
Manual valid for all 24-0230 models Model number can be found on product nameplate For more information and references visit us online at www.once.lighting/uv-c For warranty information visit www.once.lighting/warranties For service or parts call your sales representative, visit our website: www.once.lighting/uv-c...
